Seagate XF1230-1A0240 240GB SATA Solid State Drive

Seagate Part #/MPN: XF1230-1A0240

DiscTech Item #: SGT-XF1230-1A0240-BN-5Y

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Enterprise Grade

Capacity: 240GB

Speed: Solid State Memory

Interface Types: SATA

Form Factor: 2.5inx7mm Fits All laptops

Sector Size: 512 / 512e

Sustained Throughput: 560/300

Average Seek Time: 140/60

Electrical Interface: SATA 600 - 6.0Gbps


SSD Endurance DWPD: Consumer / Value

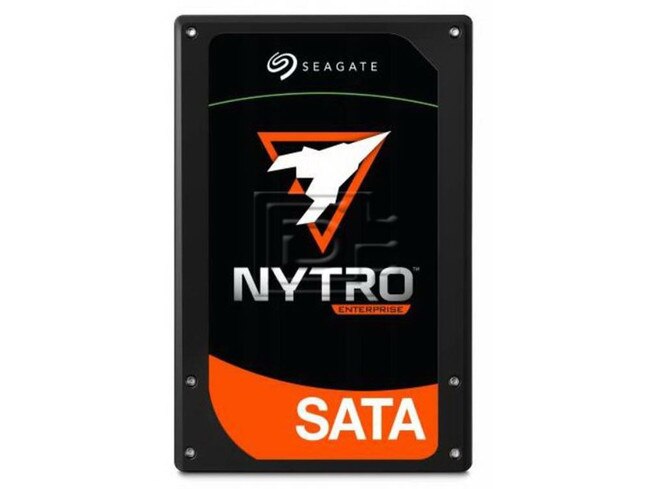

Seagate Nytro XF1230 XF1230-1A0240 240GB 2.5-Inch 6Gbps eMLC SATA Solid State Drive - Brand New

Seagate Nytro XF1230 XF1230-1A0240 240GB 2.5" (Thin/Case) 6.0 Gb/s Enterprise Multi Level Cell 1.0 Drive Writes Per Day Serial Attached Technology Attachment Solid State Disk Drive - Brand New

Nytro® XF1230 SATA SSD
Cost-Effective SSD for Cloud Server Applications

With the growth of public and private cloud computing data centers that require faster random accesses, cost-effective, higher-performance solid state drives (SSDs) have become essential. SSDs with the SATA storage interface meet the high performance and reliability requirements without disrupting legacy storage infrastructures and additional investments in software and hardware.

The Seagate® Nytro® XF1230 SATA SSD is a cost-effective, enterprise-grade SSD solution designed to deliver high, sustained and consistent performance for significantly improved quality of service and enhanced user experience.

Optimized for Read-Intensive Applications
Your business data is critical, especially for customer-facing cloud and high-demand applications. The Nytro XF1230 SATA SSD offers a robust enterprise feature set, including end-to-end data protection and robust error-correction algorithms for solid reliability, and power-loss data protection (PFAIL) to maintain data integrity and to prevent loss of data in the event of unexpected power interruptions.

Power-Optimized for Active Workloads
Cloud computing data centers require energy-efficient storage solutions to improve performance while lowering the total cost of ownership. When deploying high-load services and web applications that often access storage at high frequencies and trigger continuous active workloads, it is critical to deploy a storage system tuned and optimized with higher power efficiency in mind. The Nytro XF1230 SATA SSD is ideally tuned across all capacity points to consume less than 4.8 W active power.

Key Features and Benefits

  • SATA 6 Gb/s interface for easy deployment in legacy storage infrastructures>
  • Best-in-class read and write latency for faster random access>
  • Highly tuned for read-intensive workloads>
  • Power-optimized for active workloads with less than 4.8 W power consumption>
  • Power loss data protection circuit to prevent loss of data in the event of unexpected power interruptions>
  • Enterprise-class reliability with 2 million hours MTBF


This drive is compatible with laptops that accept 2.5" x 7mm (Thin/Case) SATA drives.

Nytro® XF1230 SATA SSD
Model NumberXF1230-1A0240
Capacity240 GB
InterfaceSATA 6 Gb/s
NAND Flash TypeeMLC
Form Factor2.5 in × 7 mm
Sequential Read (MB/s) Sustained, 128 KB560
Sequential Write (MB/s) Sustained, 128 KB290
Random Read (IOPS) Sustained, 4 KB QD3298,000
Random Write (IOPS) Sustained, 4 KB QD328,000
Average Read Latency (μs), 4 KB QD1130
Average Write Latency (μs), 4 KB QD1105
Lifetime Endurance (Drive Writes per Day)0.5
Non-recoverable Read Errors per Bits Read1 per 10^17
Mean Time Between Failures (MTBF, hours)2 M
Power Management
+5 V Active Max Average Power (W)2.9
Average Idling Power (W)0.6
Temperature, Operating (°C)0 to 70
Temperature, Non-operating (°C)–40 to 95
Temperature Change Rate/Hr, Max (°C) 30
Shock, 0.5 ms (Gs)1,500
Vibration, 7 Hz to 800 Hz (Grms)3.08
Height (in/mm, max)0.276/7.00
Width (in/mm, max)2.750/69.85
Depth (in/mm, max)3.951/100.35
Weight (lb/g)0.187/85

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 1 lb

Warranty: 5 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new.

5 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
