NEW Toshiba AL13SXB300N 300GB 2.5" 6Gbps 15K AL13SX Series 512n Enterprise SIE SAS Hard Drive

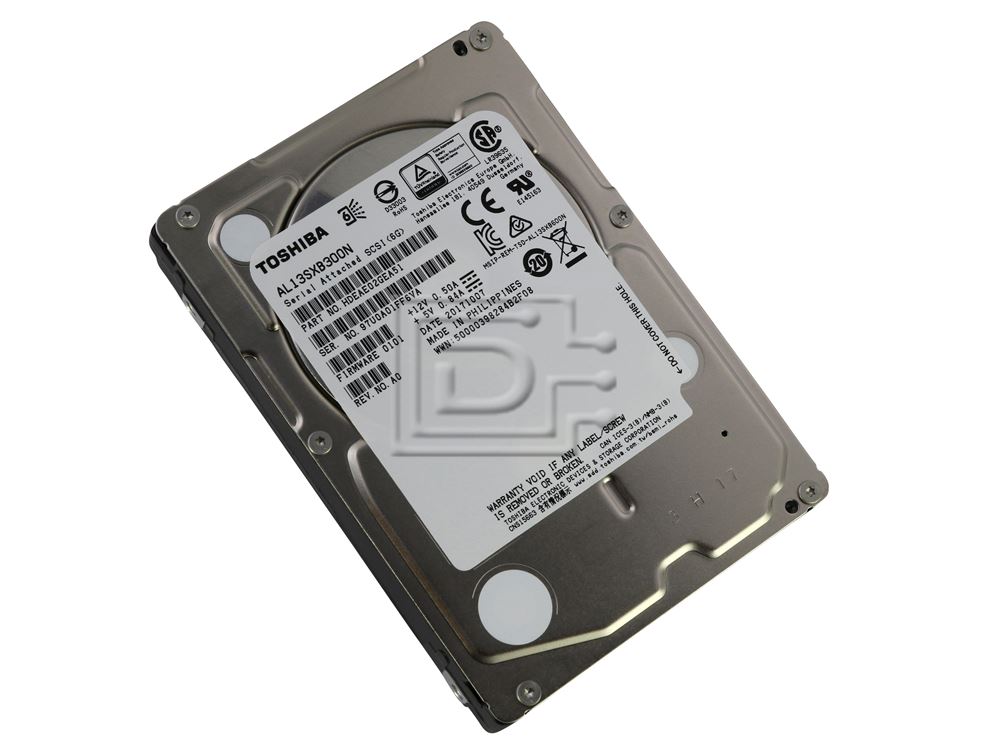

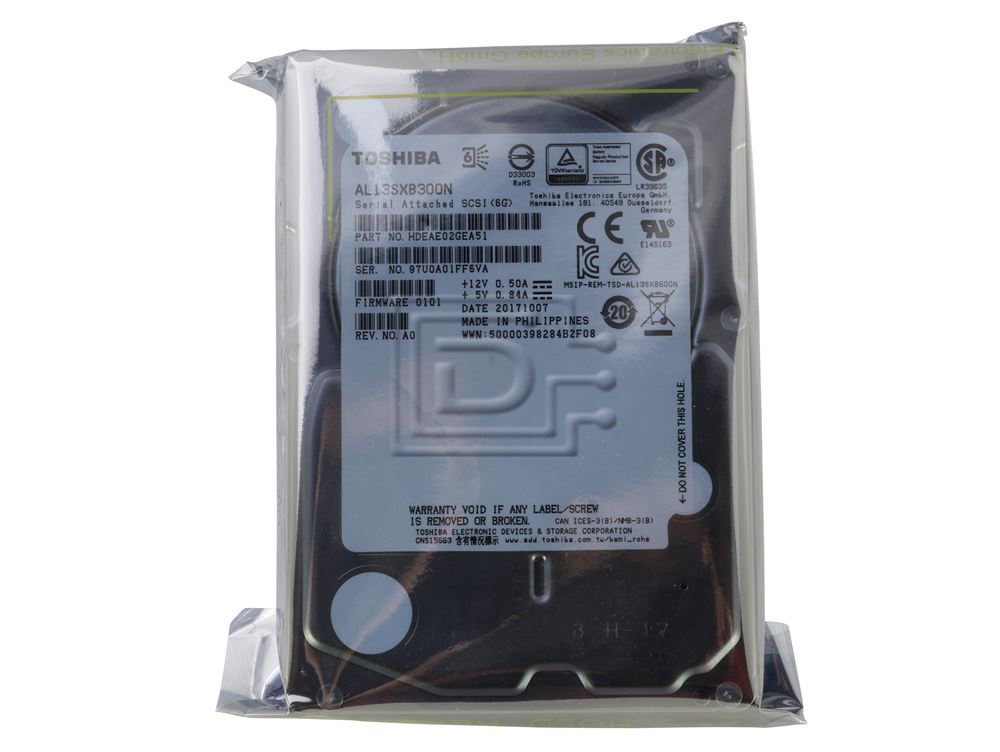

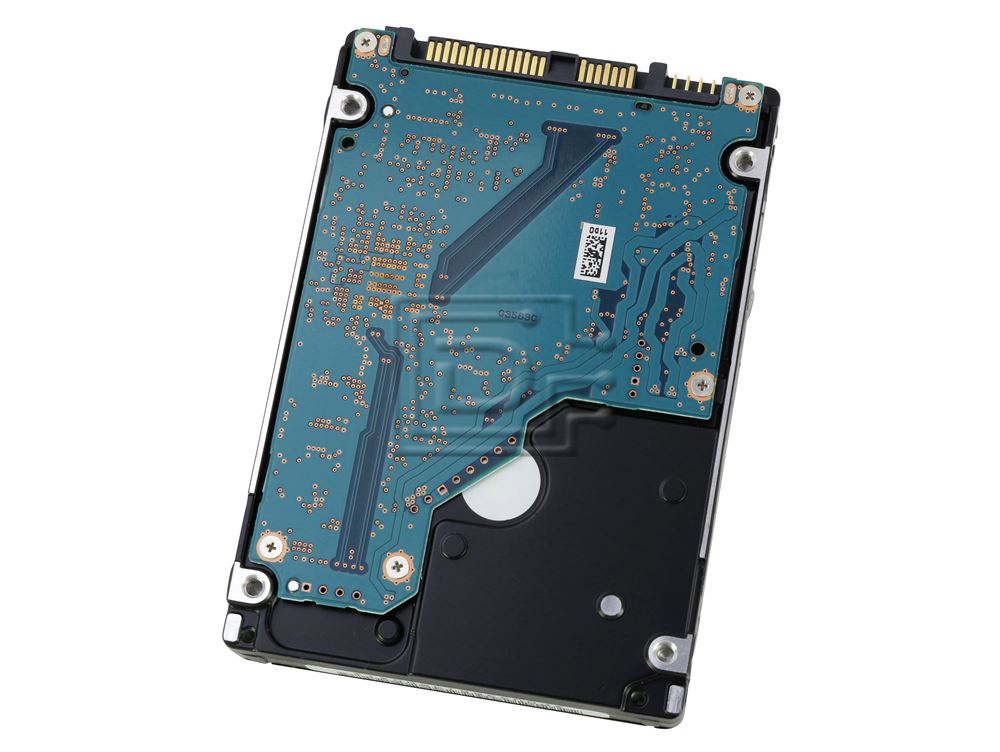

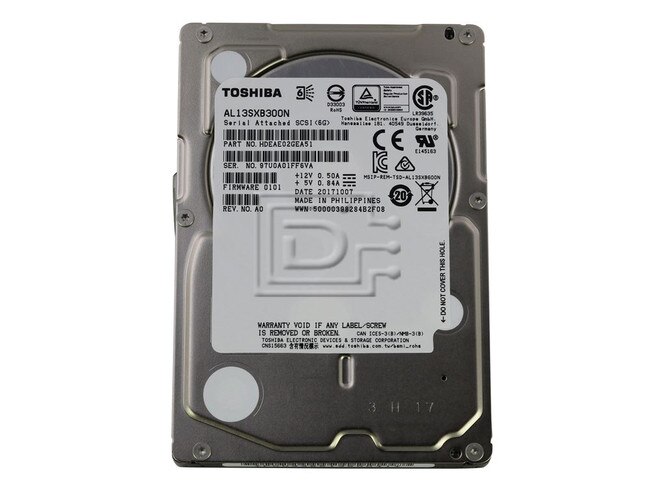

Toshiba AL13SXB300N SAS Hard Drive Image 1 imageToshiba AL13SXB300N SAS Hard Drive Image 2 imageToshiba AL13SXB300N SAS Hard Drive Image 3 imageToshiba AL13SXB300N SAS Hard Drive Image 4 image
  • Brand New
    Condition Levels Explained

    The product is brand new.

  • In Stock:6
    Need more?
    Stock Levels

    This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.

  • 1 Year DiscTechWarranty
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

$175.00

Capacity:300GB
Speed:15K RPM
Interface Types:SAS
Form Factor:2.5" SFF Server Drive
Electrical Interface:SAS-3 12Gbps
RAM:64MB
Click to see more 300GB SAS 15K RPM Drives

Description

Toshiba AL13SXB300N 300GB 2.5-Inch 6Gbps 15K AL13SX Series 512n Enterprise SIE SAS Hard Drive - Brand New

Toshiba AL13SXB300N 300GB 2.5" 6.0 Gbps 15000 RPM AL13SX Series 512n / 512 Native Enterprise SIE / Sanitize Instant Erase SAS / Serial Attached SCSI HDD / Hard Drive - Brand New

AL13SXBxx0N Series

The AL13SX series Enterprise Performance 15k HDD models combine the performance of 15,000 rpm spindle speed with capacities up to 600 GB in a compact, power efficient 2.5-inch form factor. The series is meticulously engineered for mission critical IT operations. The AL13SXBxxxN supports 6.0 Gbit/s SAS interface and provides 512 B per sector native format required for legacy applications and operating environments while delivering sustained transfer rates reaching 228 MB/s. In addition, the AL13SX series helps to reduce operating costs by lower access time and power savings compared with Toshiba legacy 3.5-inch 15,000 rpm models (MBA3xxxRC).

Key Features

  • Industry Standard 2.5-inch 15 mm Height Form Factor
  • 600, 450 and 300 GB Capacity models
  • Dual-Port 6.0 Gbit/s SAS Interface
  • Rotational Speed of 15,000 rpm
  • MTTF of 2,000,000 hours
  • 24/7 Mission Critical Workload Performance and Data Reliability

Applications

  • Tier 1 Mission-Critical Servers and Storage Systems
  • Servers and Storage Sub-systems Supporting Write-Intensive and Transaction-Based Applications
  • Rack-Optimized Data Centers

Compatibility

This drive is compatible with servers and arrays that accept 2.5” 15mm SFF SAS drives

Specifications

Enterprise Performance HDD
AL13SXBxx0N Series
Model numberAL13SXB300N
MAIN SPECIFICATION
InterfaceSAS-2.0
(6.0 Gbit/s, 3.0 Gbit/s, 1.5 Gbit/s)
Formatted Capacity300 GB
PerformanceInterface
  • 6.0 Gbit/s Max.
    • Rotation Speed
  • 15,000 RPM
    • Average Latency Time
  • 2.0 ms
    • Buffer Size
  • 64 Mib
    • Sector Size512 native ( 512n )
    Supply VoltageAllowable Voltage
  • 5 V ± 5%
  • 12 V ± 5 %
    • Power ConsumptionRead / Write
  • 9.0 W Max
    • Low Power Idle
  • 5.0 W Typ.
    • 12 Gbit/s SAS
    RELIABILITY
    MTTF2,000,000 Hours
    Non-recoverable Error Rate10 errors per 10sup17 bits read
    MECHANICAL SPECIFICATIONS
    Height15.0 mm ± 0,5 mm Max
    Width69.85 mm ±0.25 mm Max.
    Length100.45 mm Max
    Weight230 g Max.
    ENVIRONMENTAL LIMITS
    TemperatureOperating
  • 5 °C to 55 °C
    • Non-Operating
  • - 40 °C to 70 °C
    • HumidityOperating
  • 5 % to 95 % R.H. (No condensation)
    • Non-Operating
  • 5 % to 95 % R.H. (No condensation)
    • ShockOperating
  • 980 m/s { 100 G } ( 1 ms duration )
    • Non-Operating
  • 3,920 m/s { 400 G } ( 2 ms duration )
    • VibrationOperating
  • 9.8 m/s { 1.0 G } ( 20 to 300 Hz )
    • Non-Operating
  • 49 m/s { 5.0 G } ( 20 to 300 Hz )
    • AltitudeOperating
  • -305 m to +3,048 m
  • -1,000 to +10,000 feet
    • Non-Operating
  • -305 m to +12,192 m
  • -1,000 to +40,000 feet
    • ENVIRONMENTAL FEATURE
    RoHSCompatible
    Halogen FreeYes
    Antimony FreeYes
    MISCELLANEOUS
    FeaturesSanitize Instant Erase (SIE)
    Click here to view the manufacturer's item description/brochure

    ROHS Compliant

    Weight: 1.5 lb

    Warranty: 1 Year DiscTech

    Condition

    Brand New

    Warranty

    1 Year DiscTech Warranty
