Toshiba Part #/MPN: AL14SEB090N
DiscTech Item #: TOS-AL14SEB090N-RF-OE-DEL
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:1Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Enterprise Grade
Capacity: 900GB
Speed: 10,000RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps
On-Board Cache: 128MB

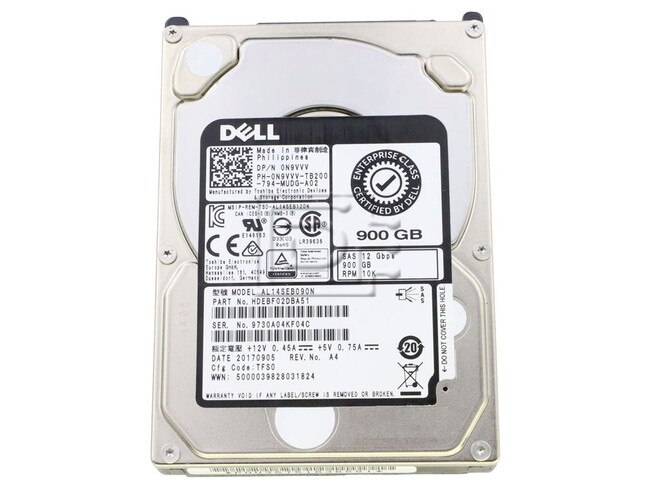

Toshiba AL14SEB090N / Dell N9VVV 900GB 2.5" SFF 12Gbps 10K RPM 512n SAS Enterprise Hard Drive - Refurbished
Toshiba AL14SEB090N / Dell N9VVV / 0N9VVV 900GB 2.5" SFF / Small Form Factor 12.0 Gb/s 10,000 RPM 512n / 512 Native SAS / Serial Attached SCSI Enterprise HDD / Hard Disk Drive - Refurbished
Alt MP/N: HDEBF02GEA51
The AL14SEB-N Enterprise Performance HDD models combine the performance of 10,500rpm spindle speed with capacities up to 1200 GB in a compact, power efficient 2.5-inch form factor. Engineered for mission critical IT operations, the AL14SEBxxxN models support 12.0 Gbit/s SAS and provide 512 Byte per sector native format required for legacy applications and operating environments while delivering sustained transfer rates reaching 196 MiB/s. In addition, the AL14SEB-N Series helps to reduce operating costs by improving access time and reducing power consumption when compared with legacy 3.5-inch Enterprise Performance HDD models
Key Features
- Industry Standard 2.5-inch 15mm Height Form Factor
- 1.2 TB, 900 GB, 600 GB, 450 GB and 300 GB Capacity Models
- 10,500 rpm Rotational Performance or low latency
- Dual-Port 12.0 Gbit/s SAS Interface
- MTTF of 2,000,000 hours
- 24/7 Mission Critical Workload Performance and Data Reliability
Applications
- Hybrid and Mainstream Storage Arrays
- Mid-Range Volume Servers
- Blade and Rack mount Servers
- Mission-Critical Systems
- Edge Servers and Content Delivery Infrastructure
Compatibility:
This drive is compatible with servers and arrays that accept 2.5” 15mm SFF SAS drives
| Toshiba AL14SEB-N Series | |
|---|---|
| Model Number | AL14SEB090N |
| Main Specification | |
| Interface | SAS-3.0 (12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s) |
| Formatted Capacity | 900GB |
| Performance | |
| Interface Speed | 12.0 Gbit/s Max. |
| Rotation Speed | 10,500 RPM |
| Average Latency Time | 2.86 ms |
| Buffer Size | 128 MiB |
| Logical Data Block Length | |
| HOST | 512 to 528 B ( fixed length ) |
| DISK | 512 to 528 B ( fixed length ) |
| Supply Voltage | |
| Allowable Voltage | 5 V ± 5% 12 V ± 5 % |
| Power Consumption | |
| MTTF | 2,000,000 hours |
| Low Power Idle | 4.0 W Typ. |
| Reliability | |
| Non-recoverable Error Rate | 10 errors per 10¹7 bits read |
| Mechanical Specifications | |
| Height | 15.0 mm ± 0,5 mm Max. |
| Width | 69.85 mm ±0.25 mm Max |
| Length | 100.45 mm Max |
| Weight | 230 g Max. |
| Environmental Limits | |
| Operating Temperature | 5 °C to 55 °C |
| Non-Operating Temperature | - 40 °C to 70 °C |
| Operating Humidity | 5 % to 95 % R.H. (No condensation) |
| Non-Operating Humidity | 5 % to 95 % R.H. (No condensation) |
| Operating Shock | 980 m/s2 { 100 G } ( 1 ms duration ) |
| Non-Operating Shock | 3,920 m/s2 { 400 G } ( 2 ms duration ) |
| Operting Vibration | 9.8 m/s2 { 1.0 G } ( 20 to 300 Hz ) |
| Non-Operating Vibration | 49 m/s2 { 5.0 G } ( 20 to 300 Hz ) |
| Operating Altitude | -305 m to +3,048 m { -1,000 to +10,000 feet } |
| Non-Operating Altitude | -305 m to +12,192 m { -1,000 to +40,000 feet } |
| Environmental Feature | |
| RoHS | Compatible |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: N9VVV 0N9VVV
Weight: 1 lb
Warranty: 1 Year DiscTech
Refurbished
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
