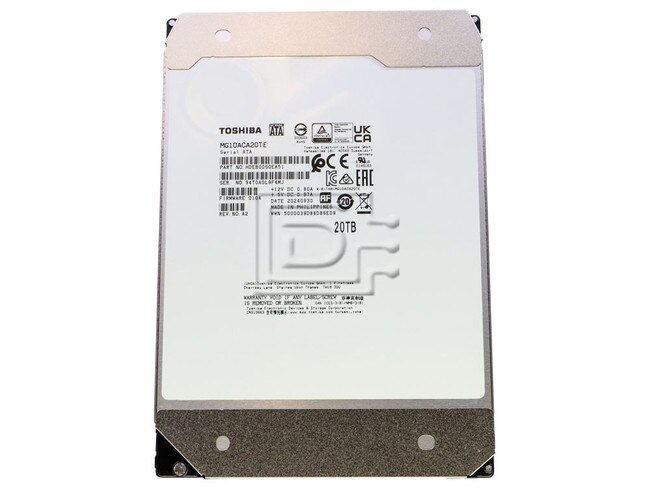

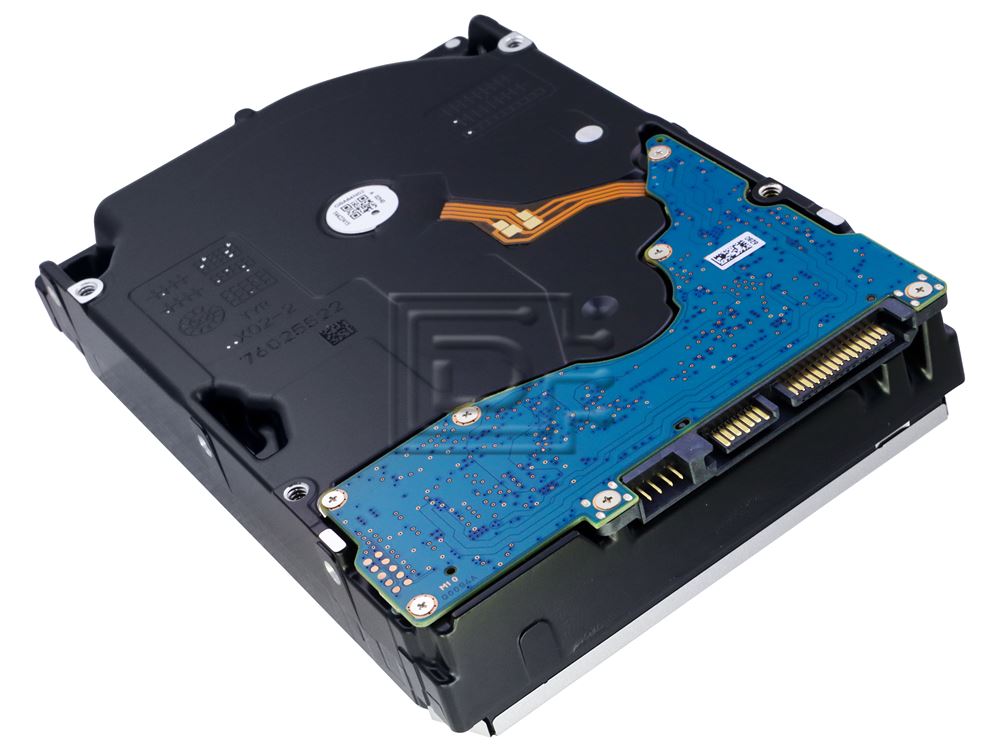

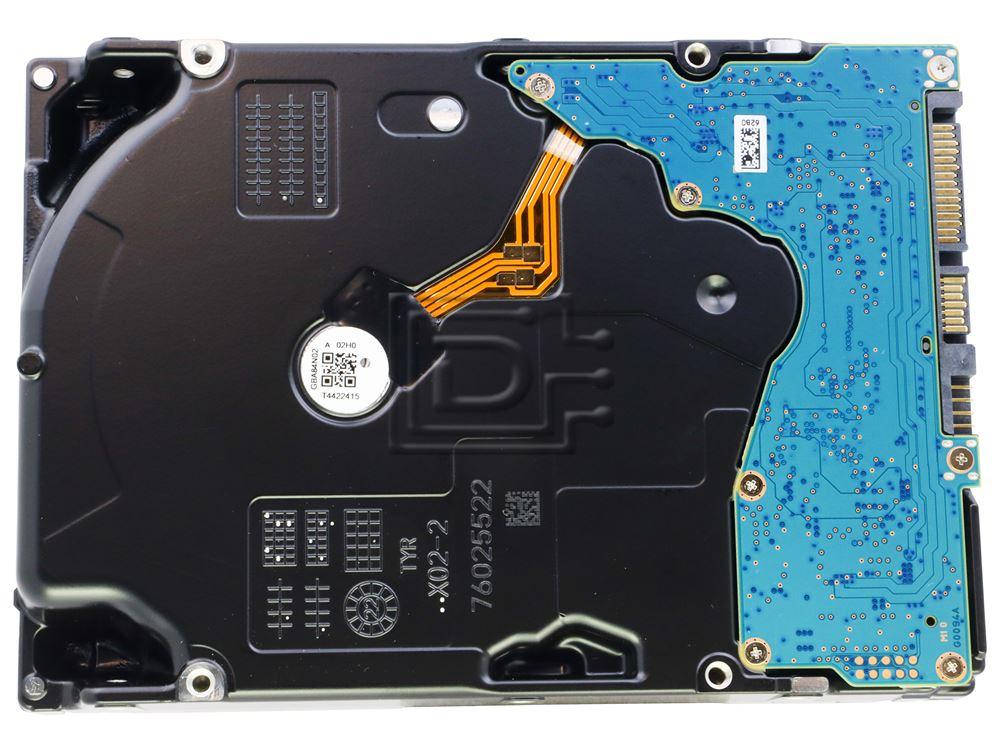

Toshiba MG10ACA20TE 20TB 3.5” LFF 6Gbps 7.2K RPM 512e MG10 Series SATA Hard Drive

Toshiba MG10ACA20TE SATA Hard Drive Image 1 imageToshiba MG10ACA20TE SATA Hard Drive Image 2 imageToshiba MG10ACA20TE SATA Hard Drive Image 3 image
  • Brand New
    Condition Levels Explained

    The product is brand new.

  • In Stock:16
    Need more?
    Stock Levels

    This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.

  • 5 Year ManufacturerWarranty
    Product Warranties Explained

    The product has a manufacturer warranty for the time period specified.

$499.00

Capacity:20TB
Speed:7.2K RPM
Interface Types:SATA
Form Factor:3.5" LFF Hard Drive
Electrical Interface:SATA 600 - 6Gbps
RAM:256MB

Description

Toshiba MG10ACA20TE 20TB 3.5” LFF 6Gbps 7.2K RPM 512e MG10 Series SATA Hard Drive - Brand New

Toshiba MG10ACA18TE 20TB / 2000GB 3.5” LFF / Large Form Factor 6.0 Gb/s 7200 RPM 512e / 512 Emulation MG10 Series SATA / Serial ATA HDD / Hard Drive - Brand New

TOSHIBA
MG10 SERIES ENTERPRISE CAPACITY HDD

The MG10 Series features Toshiba’s third-generation, 9-disk Helium-sealed design to advance Conventional Magnetic Recording (CMR) density to 2 TB per disk, achieving a total capacity up to 20TB. The industry-standard 3.5-inch form-factor provides 7200rpm performance, and integrates easily into cloud-scale storage infrastructure, business-critical servers and storage, and File and Object storage solutions.

The massive 20 TB CMR capacity is delivered using Toshiba’s innovative Flux Control Microwave Assisted Magnetic Recording (FC-MAMR) technology. These advances help the MG09 Series to achieve optimum storage capacity and application compatibility, with unsurpassed data reliability. Available with either a SATA 6.0 Gbit/s or a 12.0 Gbit/s SAS interface, the MG09 Series models integrate easily into standard 3.5-inch drive bays to help reduce the footprint and operational burden of cloud-scale storage infrastructure, File and Object storage systems, and business critical servers and storage systems.

KEY FEATURES

  • Up to 20 TB capacity
  • Conventional Magnetic Recording (CMR) for broad compatibility
  • Toshiba Flux Control Microwave-assisted Magnetic Recording (FC-MAMR) Technology
  • Industry-leading 9-disk helium-sealed design for superior storage density
  • Industry Standard 3.5-inch 26.1mm height Form Factor
  • 7200 rpm Performance
  • Choice of SATA 6.0 Gbit/s and 12.0 Gbit/s SAS Interfaces
  • Lower operational power profile, providing excellent power efficiency (W/TB) for better TCO
  • 550 Total TB Transferred per Year Workload Rating
  • 512e or 4Kn Advanced Format Sector Technology; (512e Model) Includes Toshiba Persistent Write Cache Technology for Data-Loss Protection in Sudden Power-Loss Events
  • Sustained transfer rate and power efficiency improvements vs. prior MG Series generations
  • Sanitize Instant Erase (SIE) option model and Self Encrypting Drive (SED) option model

APPLICATIONS

  • Cloud-scale Sever and Storage Infrastructure
  • Software-defined data center infrastructure
  • File- and Object-based storage infrastructure
  • Tiered Storage Infrastructure Solutions
  • Workloads and Use-Cases that Benefit from High Capacity per Spindle disk drives
  • Capacity-Optimized Cloud-scale and Rack-Scale Storage Systems
  • Compliance Data Archives and Data Life-Cycle Management Storage Systems
  • Data Center Data-Protection and Data Back-up Infrastructure

Compatibility

This drive is compatible with servers and arrays that accept 3.5in x 1.0in SATA drives

Specifications

TOSHIBA MG10 SERIES ENTERPRISE CAPACITY HDD
Model NumberMG10ACA20TE
SPECIFICATIONS
ENVIRONMENTAL LIMITS
RELIABILITY
MECHANICAL SP[ECIFICATIONS
Sector Size512 emulation ( 512e )
InterfaceSATA-3.3
Formatted Capacity20TB / 20,000GB
Performance

Interface Speed

  • 6.0 Gbit/s
  • 3.0 Gbit/s
  • 1.5 Gbit/s

Rotation Speed

  • 7,200 RPM

Buffer Size

  • 256 MiB

Maximum Sustained Data Transfer Speed (Typ)

  • 248 MiB/s
Logical Data Block Lenth

MG09ACAxxxA/AY (fixed length)

  • 4,096 GB

MG09ACAxxxE/EY

  • Host:512 GB, Disk:4,096 GB
Supply Voltage

Allowable Voltage

  • 12 V ± 10%
  • 5 V + 10% / -7%
Power Consumption

Random Write / Read 4KB Q1 (Typ)

  • 7.80W Typ

Active Idle (Idle-A)

  • 4.22W Typ
Acoustics

Active Idle (Typ)

  • 20 dB Typ
Ambient Temperature

Operating

  • 5°C to 55°C

Non-Operating

  • -40°C to 70°C
Relative Humidity

Operating

  • 5% to 90% R.H. (No condensation)

Non-Operating

  • 5% to 95% R.H. (No condensation)
Altitude

Operating

  • -305 m to 3,048 m

Non-Operating

  • -305 m to 12,192 m
Shock

Operating

  • 686 m/s {70 G}(2 ms duration)

Non-Operating

  • 2,450 m/s {250 G} (2 ms duration)
Vibration

Operating

  • 7.35 m/s {0.75 G} (5 to 300 Hz
  • 2.45 m/s {0.25 G} (300 to 500 Hz)

Non-Operating

  • 29.4 m/s {3.0 G} (5 to 500 Hz)
MTTF2,500,000 hours
Non-recoverable Error Rate10 error per 1016 bits read
Load / Unload600,000 times
Availability24 hours/day, 7 days/week
Ratted Annual Workload (Total TB Transferred per Year, R/W)550 TB per year
Width (Max)101.85 mm
Height (Max)26.1 mm
Length (Max)147.0 mm
Weight (Max(Typ))720 g / 1.59 lbs
Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 1.8 lb

Warranty: 5 Year Manufacturer

Condition

Brand New

Warranty

5 Year Manufacturer Warranty
