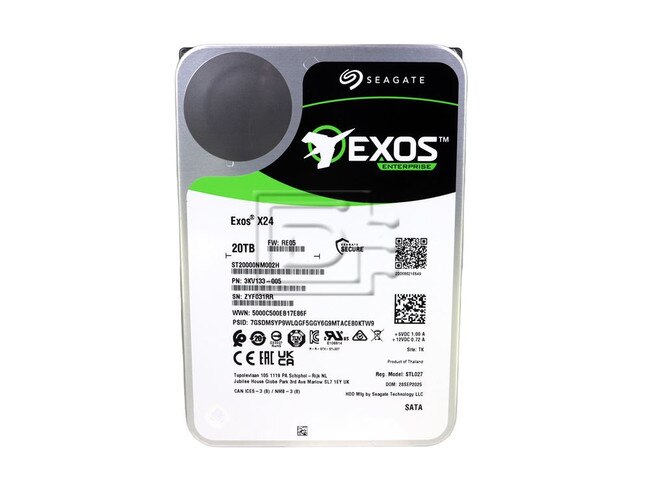

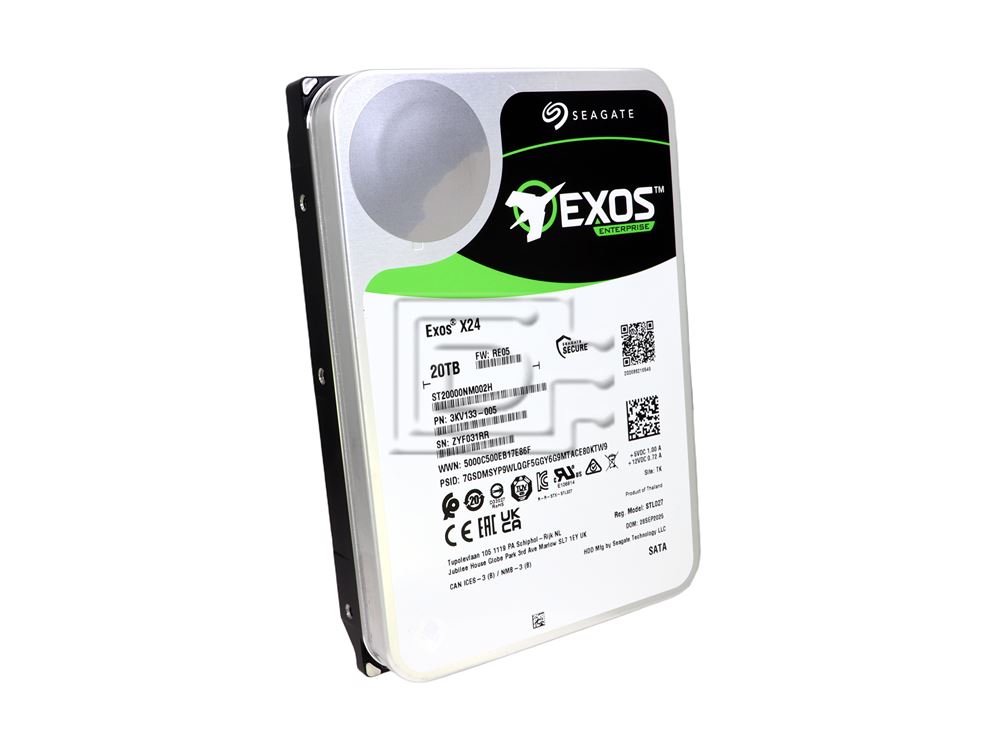

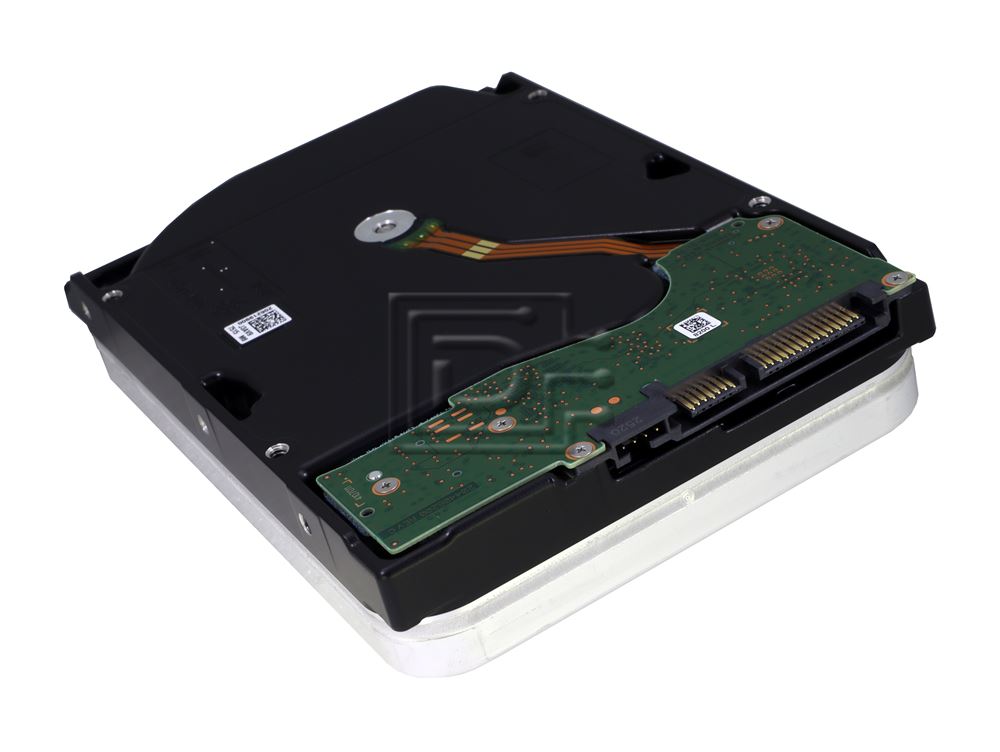

Seagate Exos X24 ST20000NM002H 20TB 3.5 LFF 6Gbps 7.2K 512e Enterprise SATA Hard Drive
- Brand NewCondition Levels Explained
The product is brand new.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
- 5 Year ManufacturerWarrantyProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
| Capacity: | 20TB |
| Speed: | 7.2K RPM |
| Interface Types: | SATA |
| Form Factor: | 3.5" LFF Hard Drive |
| Electrical Interface: | SATA 600 - 6Gbps |
| RAM: | 512MB |
Description
Seagate Exos X24 ST20000NM002H 20TB 3.5 LFF 6Gbps 7.2K RPM FastFormat 512e Enterprise SATA Hard Drive - Brand New
Seagate Exos X24 ST20000NM002H 20TB 3.5 LFF 6Gbps 7.2K RPM FastFormat 512e Enterprise SATA Hard Drive - Brand New
Seagate EXOS X24
Seagate manufactures hard drives that specifically address the needs of the hyperscale storage market. As the flagship of the Seagate® X class, the Exos™ X24 enterprise hard drives are the highest-capacity hard drives in the fleet.
Best-Fit Applications
- Hyperscale applications/cloud data centers
- Massive scale-out data centers
- Big data applications
- High-capacity density RAID storage
- Mainstream enterprise external storage arrays
- Distributed file systems, including Hadoop and Ceph Enterprise backup and restore— D2D, virtual tape
- Centralized surveillance
• All 4Kn/512e drives ship in 512-byte emulation mode but can be
easily reformatted to 4Kn (and vice versa) with the FastFormat
feature.
ALT MP/N: 3KV133-004
Compatibility
Compatible with systems that support 20TB 3.5" SATA HDDS
Specifications
| Exos Enterprise X24 | |
|---|---|
| Standard Model FastFormat (512e/4Kn) | ST20000NM002H |
| Features | |
| Reliability/Data Integrity | |
| Performance | |
| Power Consumption | |
| Evrironmental/Temperature | |
| Physical | |
| Interface | 6Gb/s SATA III |
| Capacity | 20TB / 20000GB |
| Helium Sealed-Drive Design | Yes |
| RSA 3072 Firmware Verification (SD&D) | Yes |
| SuperParity | Yes |
| Recording Technology | CMR |
| PowerChoice Technology | Yes |
| PowerBalance Technology | Yes |
| Hot-Plug Support | Yes |
| Cache, Multisegmented (MB) | 512 |
| Interface Ports | Single |
| RSA 2048 Firmware Verification | Yes |
| Mean Time Between Failures (MTBF, hours) | 2,500,000 |
| Reliability Rating @ Full 24×7 Operation (AFR) | 0.35% |
| Nonrecoverable Read Errors per Bits Read | 1 Sector per 1015 |
| Power-On Hours per Year (24×7) | 8760 |
| 512e Sector Size (Bytes per Sector) |
|
| 4Kn Sector Size (Bytes per Sector) |
|
| Spindle Speed (RPM) | 7200 |
| Interface Access Speed (Gb/s) |
|
| Max Sustainable Transfer Rate |
|
| Random Rewad/Write 4K QD03 WCD (IOPS) | 168/550 |
| Average Latency (ms) | 4.16 |
| Interface | SATA |
| Rotational Vibration @ 20-1500Hz (rad/sec) | 12.5 |
| Idle A (W) Average |
|
| Max Operating, Random Read/Write 4K/16Q (W) |
|
| Power Supply Requirements | +12 V and +5 V |
| Temperature, Operating (°C) | 5°C - 60°C |
| Vibration, Nonoperating: 2 to 500Hz (Grms) | 2.27 |
| Shock, Operating Read/Write (Gs) | 40Gs |
| Shock, Nonoperating, 1ms/2ms (Gs) | 200 |
| Height (in/mm, max) | 1.028in/26.1mm |
| Weight (in/mm, max) | 4.01 in/101.85 mm |
| Depth (in/mm, max) | 5.787in/147.0mm |
| Weigt (g/lb) | 685g/1.51lb |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: 3KV133-004
Weight: 1.8 lb
Warranty: 5 Year Manufacturer
Condition
Brand New
Warranty
5 Year Manufacturer Warranty
