Toshiba Part #/MPN: PX04SHB040
DiscTech Item #: TOS-PX04SHB040-C9-OE-DEL
- Certified 95Condition Levels Explained
These products can not qualify as new, however, we have tested and evaluated their health, performance and usage statistics and determined that they have at least 95% of their designed service life remaining. e.g. in SSDs they are guaranteed to have at least 95% endurance remaining.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:2Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Enterprise Grade
Capacity: 400GB
Speed: Solid State Memory
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Sustained Throughput: 1900/850
Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps
SSD Type: MLC
SSD Endurance DWPD: Enterprise Write Intensive
Voltage: 12V

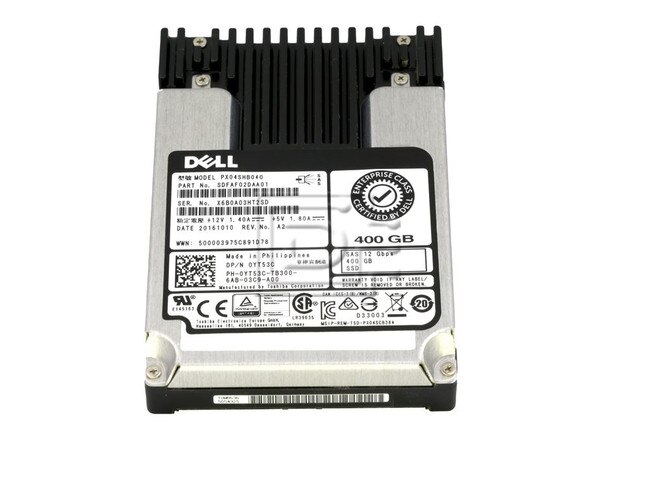

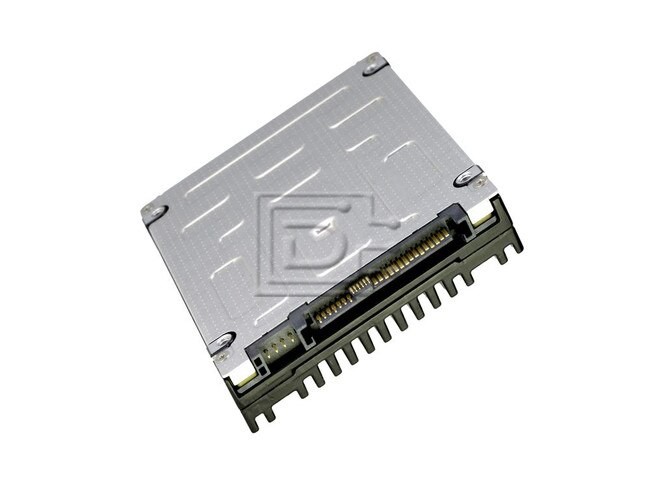

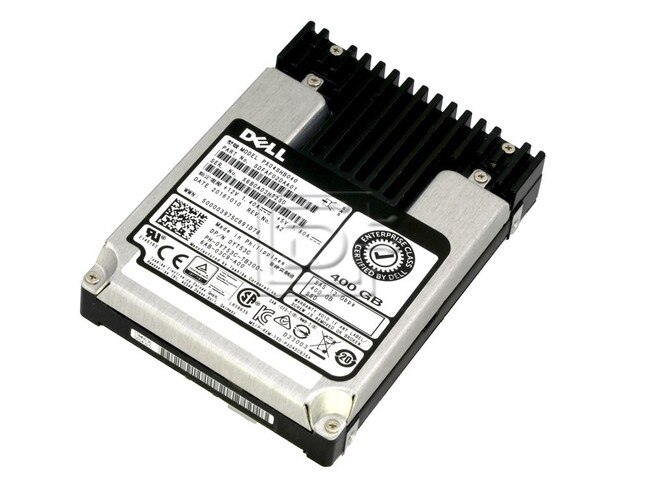

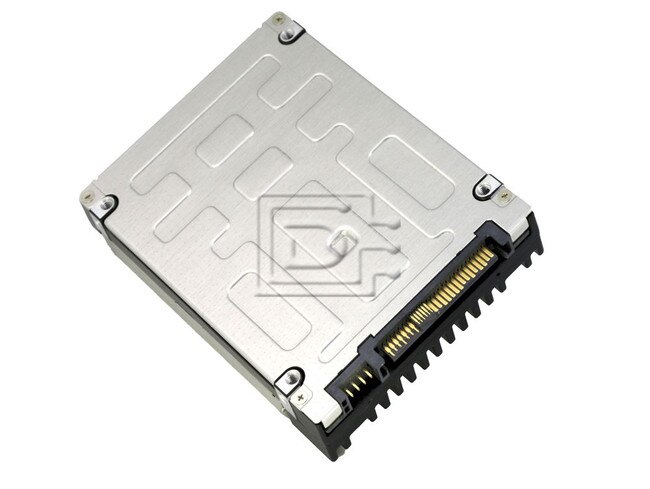

Dell YT53C / Toshiba PX04SHB040 400GB 2.5" 12Gbps High Endurance 25-DWPD MLC SAS eSSD - Certified 95% OEM
Dell YT53C / Toshiba PX04SHB040 400GB 2.5" 12Gbps High Endurance 25-DWPD MLC SAS eSSD - Certified 95% OEM
Enterprise High Endurance SSD
The PX04SHB Series is optimized for write-intensive virtualized data centers, big data analytics and high performance computing (HPC) workloads. The best-in-class 270k IOPS random read , 12.0 Gbit/s SAS SSD delivers a unique customer-tunable power and performance feature allowing optimization for power efficiency or maximum performance.
Further features include power-loss protection and data path protection. Each model is available as a self-encrypting drive (SED) with instant secure erase and supports pin-3 power disable for improved enclosure services control over storage media.
Aiming at applications requiring the highest levels of eSSD performance, reliability and endurance, this Enterprise High Endurance SSD supports excellent 25 DWPD (Drive Writes Per Day). The PX04SHB is available in capacities from 200GB to 1.6TB.
Key Features
- Up to 1.6TB Storage Capacity with Dual-Port 12.0 Gbit/s SAS Interface
- 270k IOPS random read
- 2.5-Inch Form-Factor, 15mm Z-Height
- 25 DWPD with 100% Random Workload
- Improved Read/Write Bandwidth and Random IOPS
- Power-Loss-Protection and End-to-End Data Protection including T10 DIF
- Pin-3 Power Disable Support
Key Application
- Write-Intensive Virtualized Data Centers
- Big Data Analytics
- High Performance Computing (HPC)
Compatibility:
This drive is compatible with any server that accepts 2.5in x 15mm (SFF) SAS drives.
| Enterprise High Endurance SSD | |
|---|---|
| Model Number | PX04SHB040 |
| Basic Specifications | |
| Interface | SAS-3.0 |
| Interface Speed | 12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s |
| Memory Type | MLC |
| Formatted Capacity | 400GB |
| Sustained 64Kib Sequential Read | 1,900 MiB/s |
| Sustained 64Kib Sequential Write | 850 MiB/s |
| Sustained 4KiB Random Read (Up to) | 270,000 IOPS |
| Sustained 4KiB Random Write (Up to) | 125,000 IOPS |
| Reliability | |
| MTTF | 2,000,000 hours |
| DWPD | 25 |
| Power Requirements | |
| Supply Voltage | 5 V ±7 % 12 V ±7 % |
| Power Consumption (Ready) | 3.2 W Typ |
| Dimensions | |
| Height | 15.0 mm +0 , -0.5 mm |
| Width | 69.85 ±0.25 mm |
| Length | 100.45 mm Max |
| Weight | 150 g Max |
| Enviromental Specificaions | |
| Temperature (Operating) | 0 to 55 °C |
| Relative Humidity ( Operating ) | 5 to 95 % R.H. |
| Vibration ( Operating ) | 21.27 m/s2 { 2.17 Grms } ( 5 to 800 Hz ) |
| Shock ( Operating ) | 9,800 m/s2 { 1,000 G } ( 0.5 ms duration ) |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: YT53C 0YT53C
