Dell GM5R3 / Toshiba PX04SMB040 400GB eMLC Solid State Drive

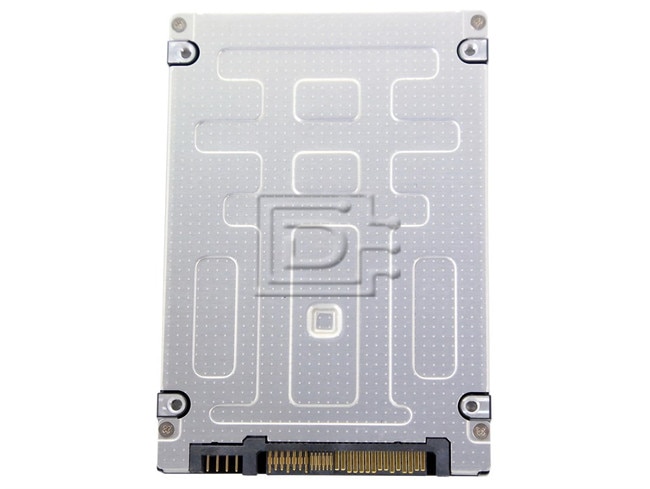

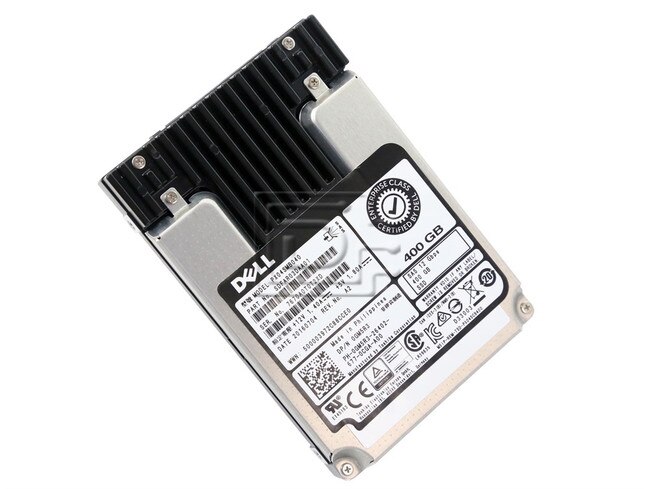

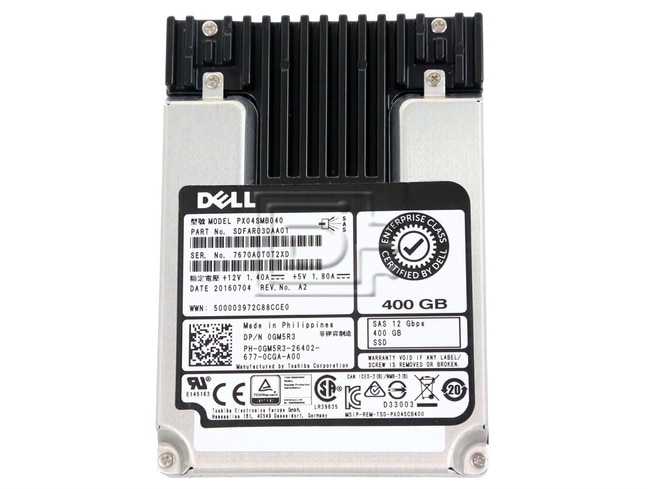

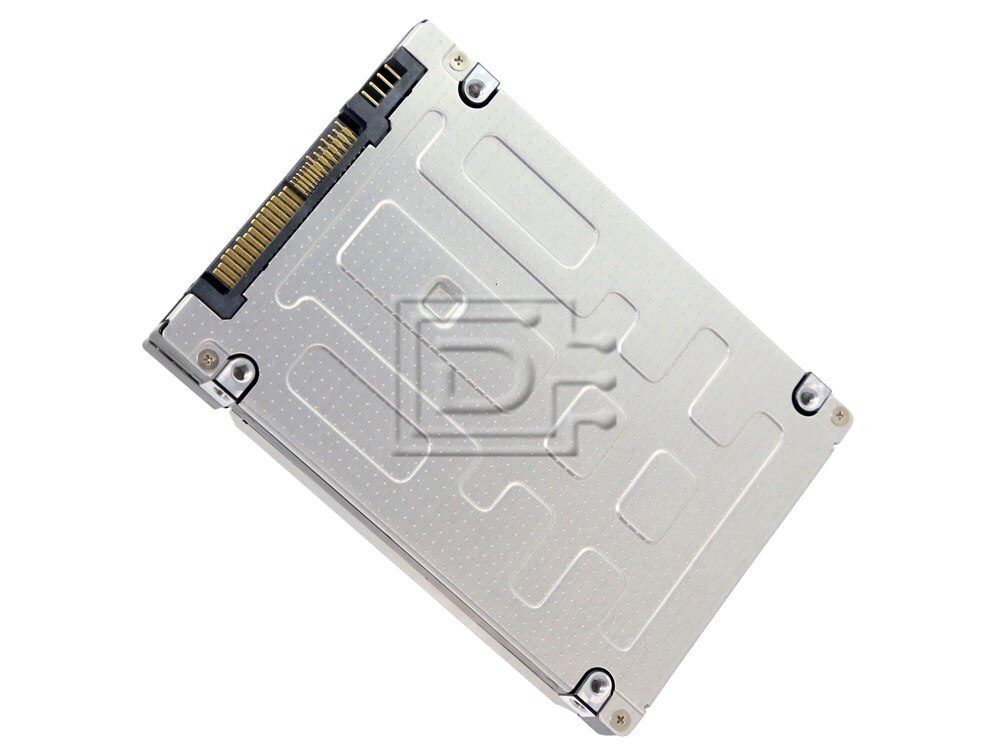

Toshiba PX04SMB040 0GM5R3 GM5R3 eMLC Enterprise SAS SSD Solid State Drive Image 1 imageToshiba PX04SMB040 0GM5R3 GM5R3 eMLC Enterprise SAS SSD Solid State Drive Image 2 imageToshiba PX04SMB040 0GM5R3 GM5R3 eMLC Enterprise SAS SSD Solid State Drive Image 3 imageToshiba PX04SMB040 0GM5R3 GM5R3 eMLC Enterprise SAS SSD Solid State Drive Image 4 image
  • Special Order - Ships in 5-10 business days
    Special Order - Ships in 5-10 business days

    This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.

  • 1 Year DiscTechWarranty
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

$399.00

Capacity:400GB
Speed:Solid State
Interface Types:SAS
Form Factor:2.5" SFF Server Drive
SSD Endurance DWPD:Enterprise Write Intensive / WI
Electrical Interface:SAS-3 12Gbps
Click to see more 400GB SAS Solid State Drives

Description

Dell Toshiba PX04SMB040 / GM5R3 400GB 12Gbps SAS eMLC Enterprise Mid Endurance Write Intensive SSD Solid State Drive - Certified 95 OEM

Dell GM5R3 / Toshiba PX04SMB040 400GB 12Gbps SAS eMLC Enterprise Mid Endurance Write Intensive SSD Solid State Drive - Certified 95 OEM

DPN: 0GM5R3 , GM5R3

eMLC NAND 2.5-Inch Solid State Drive

The PX04SMB Series is optimized for mission-critical hyperscale and virtualized environments.  The 270k IOPS random read, 12.0 Gbit/s SAS SSD delivers a unique customer-tunable power and performance feature allowing optimization for power efficiency or maximum performance.

Further features of the impressive series include power-loss protection and data path protection. Each model is available as a self-encrypting drive with instant secure erase and supports pin-3 power disable for improved enclosure services control over storage media.

The Enterprise Mid Endurance SSD offers 10 DWPD (Drive Writes Per Day) with capacities of up to 3.2TB and is designed for general online transaction processing (OLTP) and e-commerce.

Key Features
  • Up to 3.2TB Storage Capacity with Dual-Port 12.0 Gbit/s SAS Interface
  • 270k IOPS random read
  • 2.5-Inch Form-Factor, 15mm Z-Height
  • 10 DWPD with 100% Random Workload
  • Improved Read/Write Bandwidth and Random IOPS
  • Power-Loss-Protection and End-to-End Data Protection including T10 DIF
  • Pin-3 Power Disable Support
  • Self-Encrypting (SED) Option

Compatibility

Compatible with any server that accepts 2.5"x15mm SAS drives.

Specifications

eMLC NAND PX02SM Series Solid State Drive
Standard Model NumberPX04SMB040
Drive Capacity400GB
Drive InterfaceSAS-3 /  12Gbps
Performance
DWPD (Drive Writes Per Day)10
Sequential 64KiB Read (Sustained)1,900 MiB/s
Sequential 64KiB Write (Sustained)850 MiB/s
4KB Random Read (Sustained)270,000 IOPS
4KB Random Write (Sustained)90,000 IOPS
Product Life5 years
Reliability
Mean Time to Failure (MTTF)2,000,000 hours
Availability (hrs/day x days/wk)24 x 7
Power Requirements
Voltage5V (+/- 5%), 12V (+/- 5%)
Physical Size
Dimensions (W) x (D) x (H)69.85 mm x 100 mm x 15 mm
Weight (max)150 g (5.29 oz)
Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 0GM5R3 GM5R3

Weight: 0.5 lb

Warranty: 1 Year DiscTech

Condition

  • Certified 95
    Condition Levels Explained

    These products can not qualify as new, however, we have tested and evaluated their health, performance and usage statistics and determined that they have at least 95% of their designed service life remaining. e.g. in SSDs they are guaranteed to have at least 95% endurance remaining.
