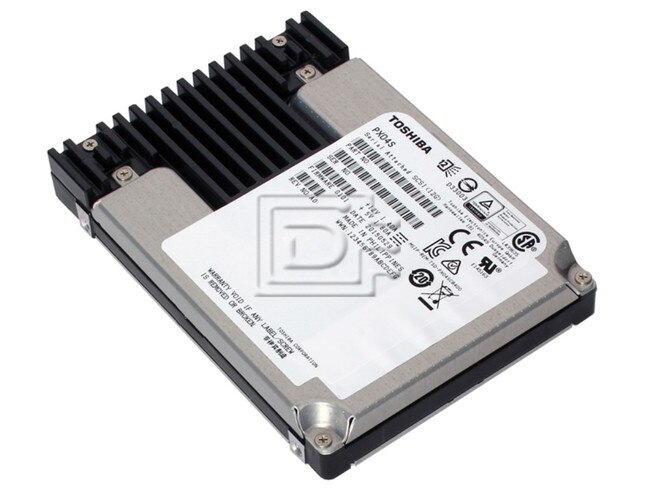

Toshiba PX04SRQ384 3.84TB SAS eSSD

(0) No Reviews Yet

Toshiba Part #/MPN: PX04SRQ384

DiscTech Item #: TOS-PX04SRQ384-BN-5Y


$9,377.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$9,377.00

Enterprise Grade

Capacity: 3.84TB

Speed: Solid State Memory

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps

SSD Type: MLC

SSD Endurance DWPD: Enterprise Read Intensive

Voltage: 12V

Toshiba PX04SRQ384 3.84TB 2.5in 12Gbps Read Intensive 1-DWPD MLC SAS eSSD - Brand New

Toshiba PX04SRQ384 3.84TB / 3,840GB 2.5" 12.0 Gb/s Read Intensive 1 Drive Writes Per Day Multi-Level Cells SAS / Serial Attached SCSI Enterprise Solids State Disk Drive - Brand New/p>

Enterprise Read Intensive SSD

The PX04SRB is 270k IOPS random read, 12.0 Gbit/s SAS SSD to offer massive 3.84TB capacity. It is optimized for read-intensive applications requiring 1 or less DWPD (Drive Writes Per Day).

The family delivers unique a customer-tunable power and performance feature allowing optimization for power efficiency or maximum performance.

Further features include power-loss protection and full data path protection. Each model is available as a self-encrypting drive with instant secure erase and supports pin-3 power disable for improved enclosure services control over storage media.

The Enterprise Read Intensive SSD series delivers features and performance for enterprise and web-based workloads.

Key Features

  • Up to 3.84TB Storage Capacity with Dual-Port 12.0 Gbit/s SAS Interface
  • 270k IOPS random read
  • 1 DWPD with 100% Random Workload
  • Improved Read/Write Bandwidth and Random IOPS
  • Power-Loss-Protection and End-to-End Data Protection including T10 DIF
  • Pin-3 Power Disable Support
  • Self-Encrypting (SED) Option

Key Applications

  • Video on Demand (VOD)
  • Streaming Media
  • Data Warehousing


Compatibility:

This drive is compatible with any server that accepts 2.5in x 15mm (SFF) SAS drives.

Enterprise Read Intensive SSD
Model NumberPX04SRQ384
Basic Specifications
InterfaceSAS-3.0
Interface Speed12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s
Memory TypeMLC
Formatted Capacity3.84TB / 3,840GB
Sustained 64KiB Sequential Read1,500 MiB/s
Sustained 64KiB Sequential Write750 MiB/s
Sustained 4KiB Random Read270,000 IOPS
Sustained 4KiB Random Write22,000 IOPS
Reliability
MTTF2,000,000 hours
DWPD1
Power Requirements
Supply Voltage5 V ±7 % , 12 V ±7 %
Power Consumption (Operating)3.2W Typ.
Dimensions
Height15.0 mm +0 , -0.5 mm
Width69.85 ±0.25 mm
Length100.45 mm Max.
Weight150 g Max.
Enviromental
Temperature (Operating)0 to 55 °C
Relative Humidity ( Operating )5 to 95 % R.H.
Vibration (Operating)21.27 m/s {2.17 Grms} (100 to 800 Hz)
Shock (Operating)9.8 km/s {1,000 G} (0.5 msec)

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 0.7 lb

Warranty: 5 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new.

5 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
