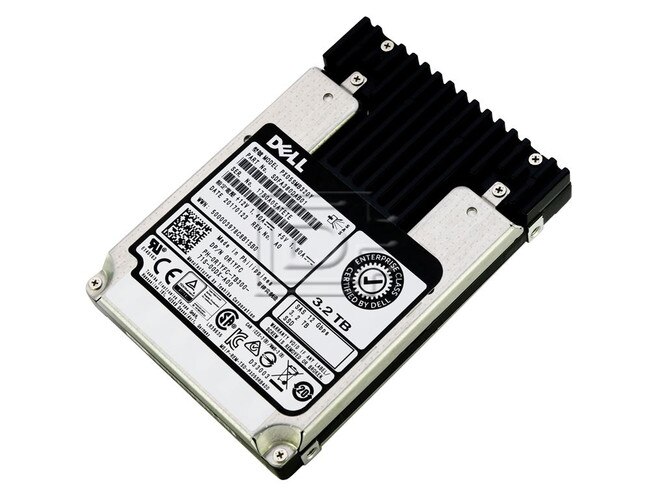

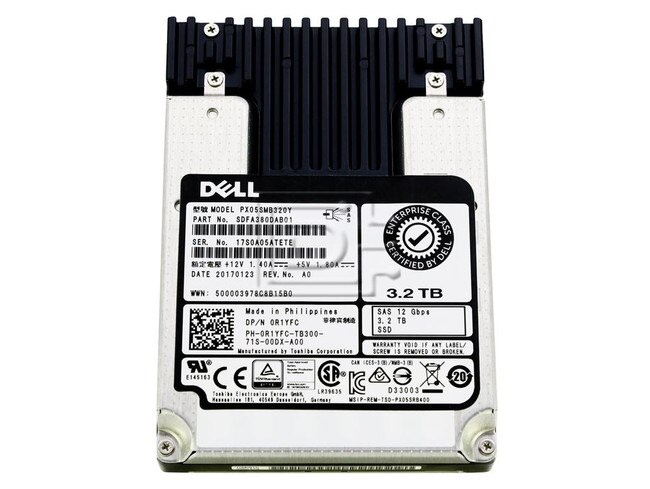

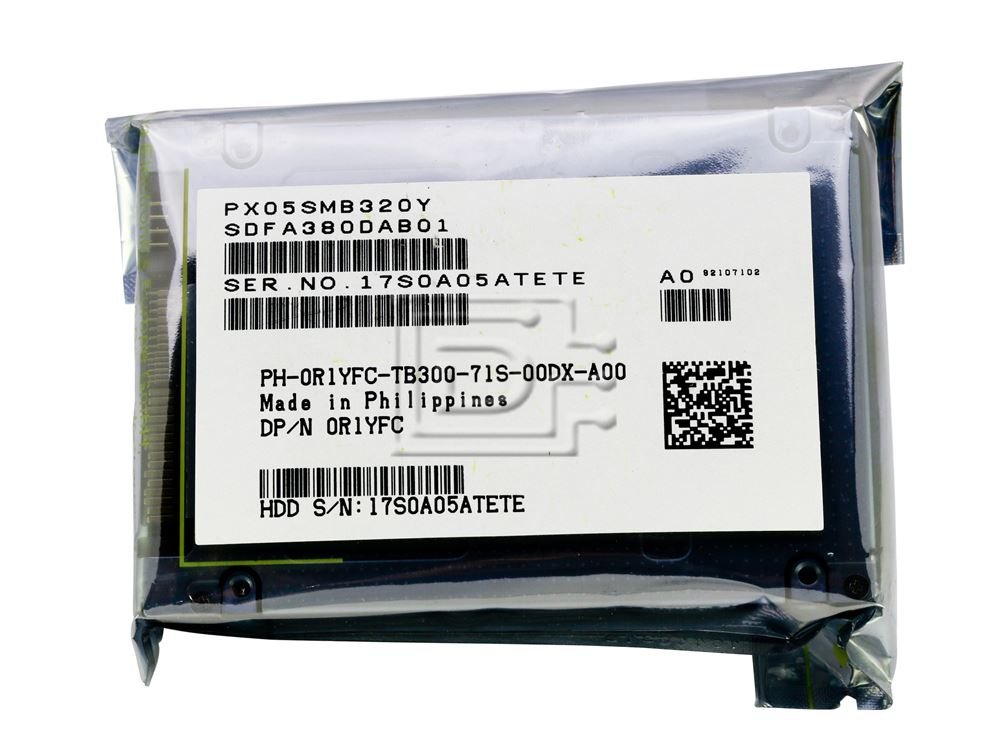

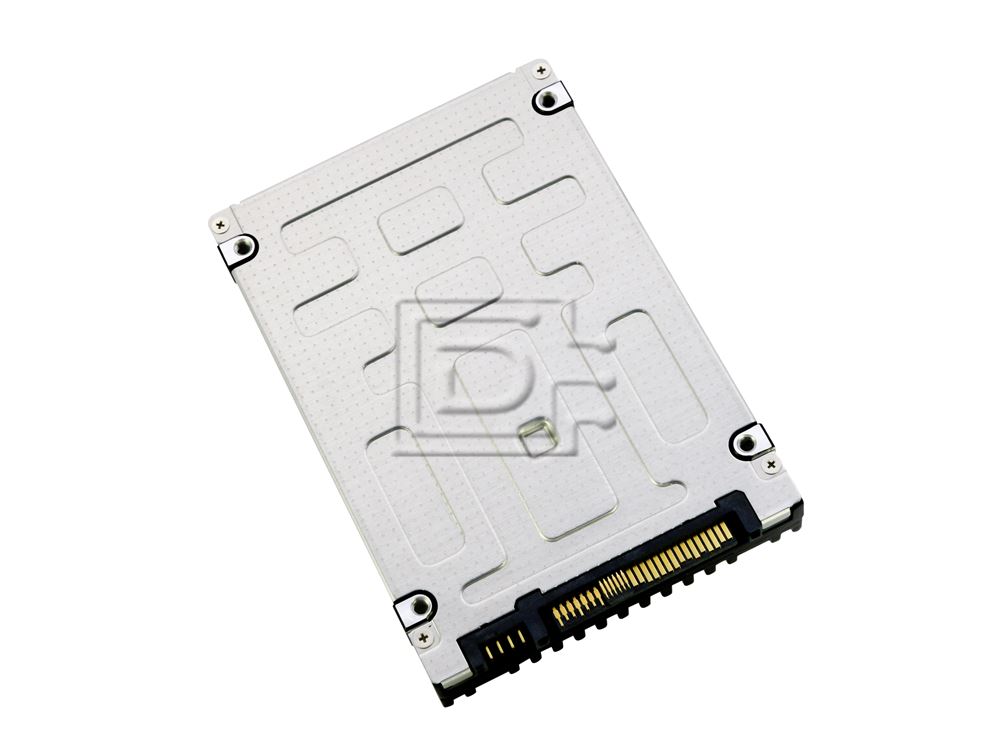

Dell R1YFC / Toshiba PX05SMB320Y 3.2TB 2.5" 12Gbps SAS Write Intensive SSD

Toshiba Part #/MPN: PX05SMB320Y

DiscTech Item #: TOS-PX05SMB320Y-BN-OE-DEL


Enterprise Grade

Capacity: 3.2TB

Speed: Solid State Memory

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 512 / 512e

Sustained Throughput: 1500/750

Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps


SSD Endurance DWPD: Enterprise Write Intensive

Compatible Systems: Dell 14th Gen. R640/R740, Dell 13th Gen. R730/T630, Dell 12th Gen. R720/T620, Dell 11th Gen. R710/T610

Dell R1YFC / 0R1YFC / Toshiba PX05SMB Series PX05SMB320Y 3.2TB 2.5" 12Gbps SAS MLC Write Intensive SIE Solid State Drive - Brand New OEM

Dell R1YFC / 0R1YFC / Toshiba PX05SMB Series PX05SMB320Y / SDFA380DAB013.2TB / 32000GB 2.5" SFF 12Gbps SAS / Serial Attached SCSI MLC WI / Write Intensive SIE / Sanitize Instant Erase SSD / Solid State Drive - Brand New OEM


Alt Pt# PX05SMB320Y

Enterprise 10 DWPD Write Intensive SSD

The PX05SMB Series is our 4th generation enterprise SAS SSD leveraging the highly successful PX04S Series. These Series is optimized for web server, SQL server and read- intensive storage applications, requiring a balance of reliability, capacity and endurance. With 270k IOPS random read performance, these SSD models deliver sustained, low latency performance to maximize performance.

Further features include power-loss protection and full data path protection. Each model is available as a self-encrypting drive with instant secure erase and supports pin-3 power disable for improved enclosure services control over storage media.

The Enterprise Mixed Use PX05SMB supports 10 DWPD (Drive Writes Per Day) and is designed to deliver high-levels of performance, quality and reliability for read-intensive and mixed-use applications such as media streaming, data warehousing and web servers.

Key Features

  • Up to 3.84TB Storage Capacity with Dual-Port 12.0 Gbit/s SAS Interface
  • 270K IOPS random read (4K) performance
  • 2.5-type Form-Factor, 15mm Z-Height
  • 10 DWPD with 100% Random Write Workload
  • Power-Loss-Protection and End-to-End Data Protection including T10 DIF
  • Pin-3 Power Disable Support
  • Sanitize Instant Erase (SIE)* Option


Key Applications

  • Media Streaming
  • Data Warehousing
  • Web Servers


* SIE: Sanitize Device Feature set is the standard prescribed by T10 (SAS) committee of American National Standards Association(ANSI), which makes it possible to invalidate the data recorded on the NAND flash memory at a blink.

* SED drive is conformed to TCG enterprise SSC.

* SED and FIPS 140-2 Validated drives are not available in all models or countries. May require TCG-Compliant host or controller support.


This drive is compatible with Servers and Data Storage Arrays that accept 2.5" x 15mm SFF 12Gb/s SAS drives including:
Dell EMC Storage NX3240
Dell EMC vSAN R640 Ready Node
Dell EMC vSAN R6415 Ready Node
Dell EMC vSAN R740 Ready Node
Dell EMC vSAN R740xd Ready Node
Dell EMC vSAN R840 Ready Node
DSS 7500
OEMR R6415
OEMR R7415
OEMR R7425
OEMR R940xa
PowerEdge C4130
PowerEdge C6320
PowerEdge C6400
PowerEdge FC630
PowerEdge FC830
PowerEdge FD332
PowerEdge M520
PowerEdge M620
PowerEdge M630
PowerEdge M630 (for PE VRTX)
PowerEdge M820
PowerEdge M830
PowerEdge M830 (for PE VRTX)
PowerEdge M910
PowerEdge R320
PowerEdge R420
PowerEdge R420xr
PowerEdge R515
PowerEdge R520
PowerEdge R620
PowerEdge R630
PowerEdge R640
PowerEdge R6415
PowerEdge R715
PowerEdge R720
PowerEdge R720xd
PowerEdge R730
PowerEdge R730xd
PowerEdge R740
PowerEdge R740xd
PowerEdge R7415
PowerEdge R7425
PowerEdge R815
PowerEdge R820
PowerEdge R830
PowerEdge R840
PowerEdge R920
PowerEdge R930
PowerEdge R940
PowerEdge R940xa
PowerEdge T320
PowerEdge T420
PowerEdge T620
PowerEdge T630
PowerEdge VRTX

Toshiba Enterprise Mixed Use SSD
Model NumberPX05SMB320Y / WI
Interface Speed12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s
Memory TypeMLC
Sustained 64KiB Sequential Read1,500 MiB/s
Sustained 64KiB Sequential Write750 MiB/s
Sustained 4KiB Random Read270,000 IOPS
Sustained 4KiB Random Write80,000 IOPS
MTTF2,000,000 hours
Supply Voltage5 V ±7 % , 12 V ±7 %
Power Consumption (Ready)3.2 W Typ.
Height15.0 mm +0 , -0.5 mm
Width69.85 ±0.25 mm
Length100.45 mm Max.
Weight150 g Max.
Temperature ( Operating )0 to 55 °C
Relative Humidity ( Operating )5 to 95 % R.H.
Vibration ( Operating )21.27 m/s { 2.17 Grms } ( 5 to 800 Hz )
Shock ( Operating )9,800 m/s { 1,000 G } ( 0.5 ms duration )

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: R1YFC 0R1YFC SDFA380DAB01

Weight: 0.5 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
