Western Digital Part #/MPN: WD3200AAKS
DiscTech Item #: WDC-WD3200AAKS-NP-OE-DEL
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Interface Types: SATA
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Average Seek Time: 8.9 / 10.9
Electrical Interface: SATA 300 - 3.0Gbps
On-Board Cache: 16MB

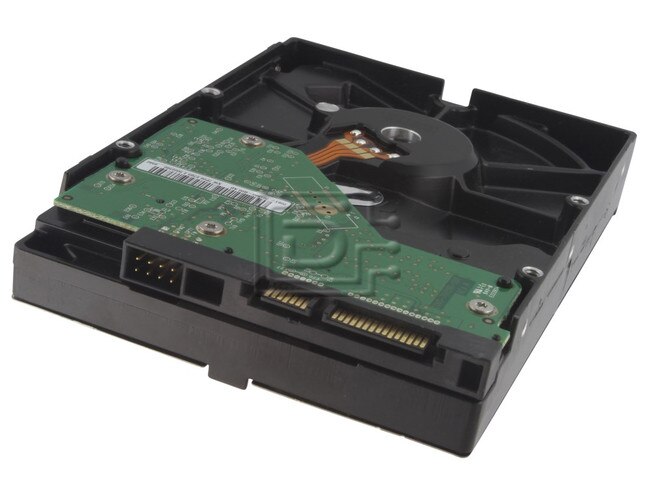

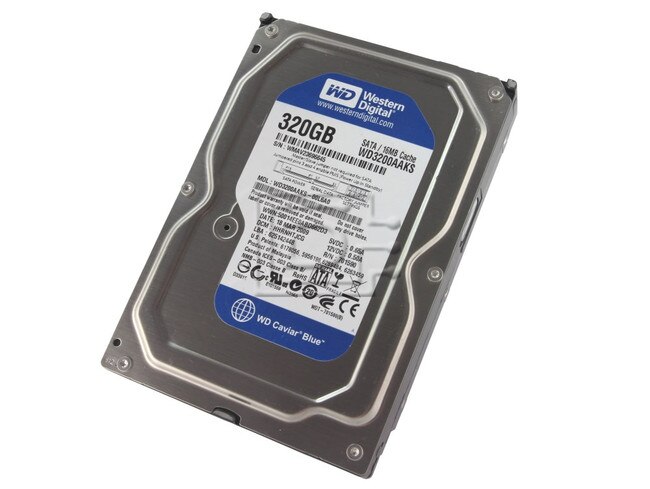

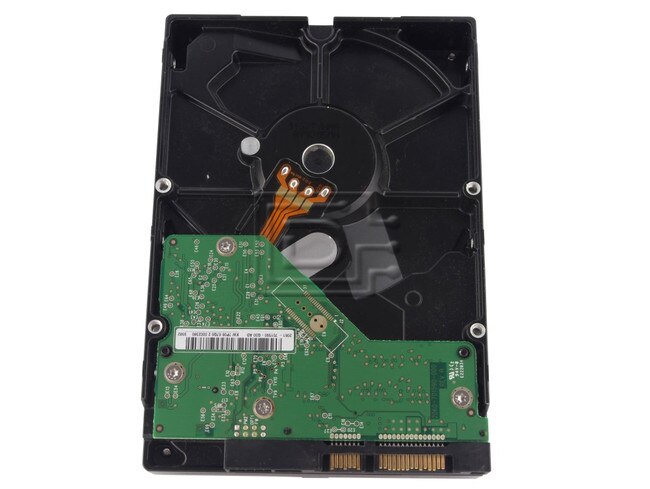

Western Digital Caviar Blue WD3200AAKS 320GB 7.2K SATA Hard Drive - New Pull OEM
PATA - Enhanced integrated drive electronics (EIDE), also called Parallel ATA (PATA), hard drives have been the standard in the computer industry for more than 10 years.
SATA - Serial ATA (SATA) hard drives are quickly becoming the new standard. Motherboard manufacturers now include SATA inputs on their boards. Because of their considerably narrower cables, SATA hard drives provide increased airflow and less clutter and in the computer system compared to PATA drives.
The performance difference - PATA drives support data transfer rates up to 100MB/sec, and all WD Caviar Blue SATA drive support 3 Gb/s transfer rates.
Solid performance - With SATA and PATA interfaces, and cache sizes up to 32 MB, this series of drives offer a full range of performance features.
Ultra cool and quiet - Keeping the drive cool enhances reliability. WD continues to develop new and innovative ways to keep drives cool while they are operating which helps protect the drive and the data stored on it.
Capacity - We offer WD Caviar Blue drives with capacities from 80 GB to 1 TB because you can never have too much storage space.
NoTouch ramp load technology - The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit. IntelliSeek - Calculates optimum seek speeds to lower power consumption, noise and vibration.
ShockGuard - Instantaneously protects the hard drive against damage from bumps and vibrations while it is running. This technology enables WD Caviar drives to achieve industry-leading shock specifications.
Compatible - We perform tests on hundreds of systems and a multitude of platforms in our FIT Lab and Mobile Compatibility Lab to give our customers confidence that our drives will work in their systems.
Dell p/n: 0X391D X391D
This drive is compatible with any computer that accepts 3.5" SATA drives.
|Rotational Speed||7200 RPM|
|Buffer Size||16 MB|
|Average Latency||4.20 ms (nominal)|
|Contact Start/Stop Cycles||50,000 minimum|
|Read Seek Time||8.9 ms|
|Write Seek Time||10.9 ms (average)|
|Track-To-Track Seek Time||2.0 ms (average)|
|Full Stroke Seek||21.0 ms (average)|
|Buffer To Host (Serial ATA)||3 Gb/s (Max)|
|Buffer To Disk||972 Mbits/s (Max)|
|Formatted Capacity||320,072 MB|
|Interface||SATA 3 Gb/s|
|User Sectors Per Drive||625,142,448|
|Height||1.028 Inches (Max)|
|Length||5.787 Inches (Max)|
|Width||4.00 Inches (+/- 0.010 inch)|
|Height||25.4 mm (Max)|
|Length||147 mm (Max)|
|Operating Shock (Read)||65G, 2 ms|
|Non-operating Shock||350G, 2 ms|
|Idle Mode||25 dBA (average)|
|Seek Mode 0||29 dBA (average)|
|Seek Mode 3||26 dBA (average)|
|Operating||32° F to 140° F|
|Non-operating||-40° F to 149° F|
|Operating||0° C to 60 ° C|
|Non-operating||-40° C to 65° C|
|Operating||5-95% RH non-condensing|
|Non-operating||5-95% RH non-condensing|
|Operating||-1,000 feet to 10,000 feet|
|Non-operating||-1,000 feet to 40,000 feet|
|Operating||-305M to 3,050M|
|Non-operating||-305M to 12,200M|
|Linear||20-300 Hz, .75G (0 to peak)|
|Random||7-500 Hz, 0.00221 g² / Hz|
|Low Frequency||10-300 Hz, 0.195 inches (double amplitude)|
|High Frequency||300-500 Hz, 5.0G (0 to peak)|
|12 VDC Current Requirements|
|5 VDC Current Requirements|
Click here to view the manufacturer's item description/brochure
Alternate MPNs: 0X391D X391D
Weight: 1.8 lb
Warranty: 1 Year DiscTech
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
