Western Digital Part #/MPN: WD3000BKFG
DiscTech Item #: WDC-WD3000BKFG-FR-1Y
- Factory RefurbishedCondition Levels Explained
The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.
Product Warranties ExplainedThe product has a manufacturer warranty for the time period specified.
- Warranty:3 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Enterprise Grade
Capacity: 300GB
Speed: 10,000RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Sustained Throughput: 128
Average Seek Time: 3.6 / 4.2
Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps
On-Board Cache: 16MB

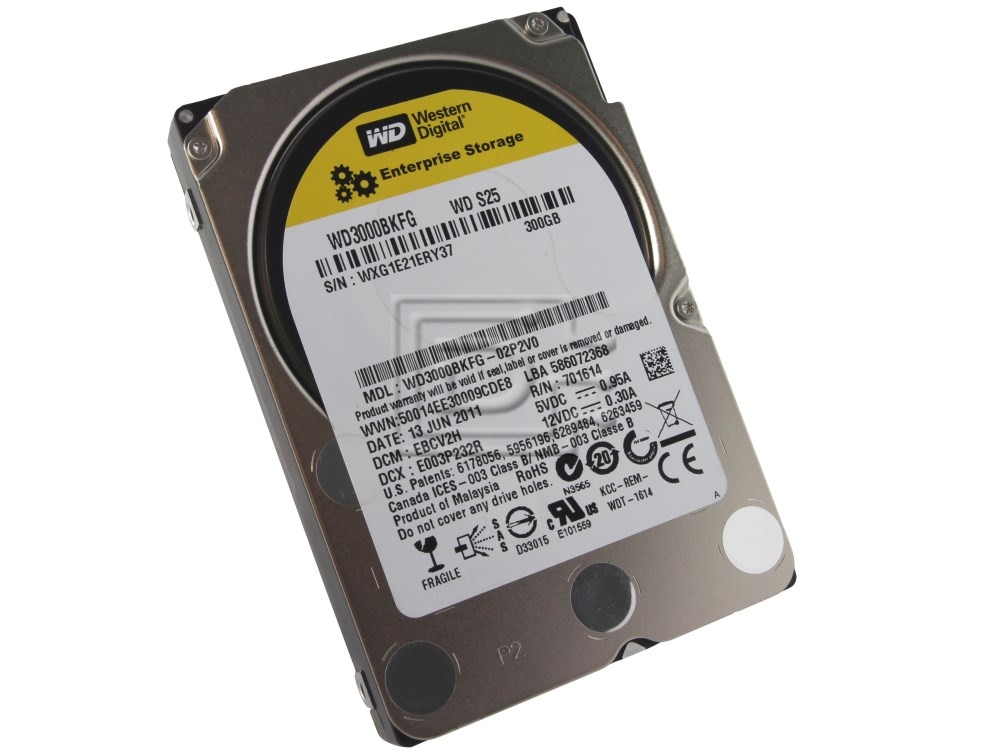

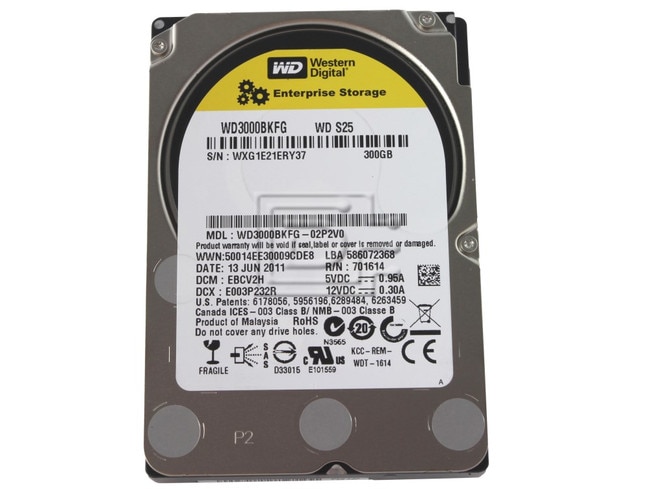

Western Digital S25 WD3000BKFG 300GB 10K SAS 6Gb/s Enterprise Hard Drive - Factory Recertified
The 2.5-inch WD S25 SAS drives offer the powerful combination of enterprise-class performance and reduced power consumption required for demanding high-performance computing and mission-critical environments.
The WD S25 SAS hard drives provide up to 300 GB of high performance storage suitable for both enterprise server and enterprise storage applications. The supersonic 6 Gb/s SAS interface enables optimum data reliability, availability and scalability. The small form-factor, 70 percent smaller than 3.5-inch drives, allows more system airflow resulting in lower cooling costs.
In an environment where space and power are limited, the WD S25 drives are an effective solution for high performance computing solutions such as power-constrained data centers, database transaction processing, and rack, tower, and blade servers.
Key Features
- Ultra fast - 6 Gb/s transfer rates and SAS 2.0 feature set delivering sustained sequential data rates of 128 MB/sec and high random IO rates.
- Low power consumption - Requires less than 8W to operate.
- Dual port, full duplex connectivity for the mission-critical Enterprise topologies.
- Industry's highest reliability rating at 1.6 million hours MTTF (MTBF).
- Planet friendly with RoHS compliant halogen reduced components.
Compatibility:
This drive is compatible with any of our 2.5" SAS drive trays and any of our SAS controllers.
Physical Specifications | ||
| Capacity | 300 GB | 147 GB |
| Interface | SAS 6 Gb/s (WD3000BKFG) SAS 3 Gb/s (WD3000BKFF) | SAS 6 Gb/s (WD1460BKFG) SAS 3 Gb/s (WD1460BKFF) |
| Form Factor | 2.5-inch Drive | 2.5-inch Drive |
| User Sectors Per Drive | 586,072,368 | 287,186,256 |
| Warranty | 5 Years | 5 Years |
Performance Specifications | |
| Rotational Speed | 10,000 RPM (nominal) |
| Buffer Size | 16 MB |
| Average Latency | 3.00 ms (nominal) |
| Read Seek Time | 3.6 ms (average) |
| Write Seek Time | 4.2 ms (average) |
| Track-To-Track Seek Time | 0.7 ms (average) |
| Transfer Rate (Buffer To Disk) | 128 MB/s (Sustained) |
Physical Dimensions | |
| Height | 0.59 Inches (15 mm) |
| Length | 3.94 Inches (100 mm) |
| Width | 2.75 inches (69.85 mm) |
| Weight | 0.48 Pounds (219 gm) |
Environmental Specifications | |
| Shock | |
| Operating Shock (Read) | 65G, 2 ms |
| Non-operating Shock | 300G, 2 ms |
| Acoustics | |
| Idle Mode | 27 dBA (average) |
| Seek Mode 0 | 34 dBA (average) |
| Temperature | |
| Operating | 41° F to 131° F (5° C to 55° C) |
| Non-operating | -40° F to 158° F (-40° C to 70° C) |
| Humidity | |
| Operating | 5-95% RH non-condensing |
| Non-operating | 5-95% RH non-condensing |
| Vibration (Operating) | |
| Linear | 20-300 Hz, .75G (0 to peak) |
| Random | 0.004 g²/Hz (10 to 300 Hz) |
| Vibration (Non-operating) | |
| Low Frequency | 0.05 g²/Hz (10 to 300 Hz) |
| High Frequency | 20-500 Hz, 4.0G (0 to peak) |
Electrical Specifications | |
| Current Requirements 12 VDC | |
| Read/Write | 300 mA |
| Idle | 140 mA |
| Current Requirements 5 VDC | |
| Read/Write | 750 mA |
| Idle | 700 mA |
| Power Dissipation | |
| Read/Write | 7.35 Watts |
| Idle | 5.18 Watt |
Click here to view the manufacturer's item description/brochure
Weight: 0.5 lb
Warranty: 3 Year Manufacturer
Factory Refurbished
The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.
The product has a manufacturer warranty for the time period specified.
3 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
