Western Digital Part #/MPN: WD1500BLFS
DiscTech Item #: WDC-WD1500BLFS-FR-OE
- Factory RefurbishedCondition Levels Explained
The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.
Product Warranties ExplainedThe product has a manufacturer warranty for the time period specified.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Enterprise Grade
Capacity: 150GB
Speed: 10,000RPM
Interface Types: SATA
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Sustained Throughput: 126
Average Seek Time: 4.2 / 4.7
Electrical Interface: SATA 300 - 3.0Gbps
On-Board Cache: 16MB

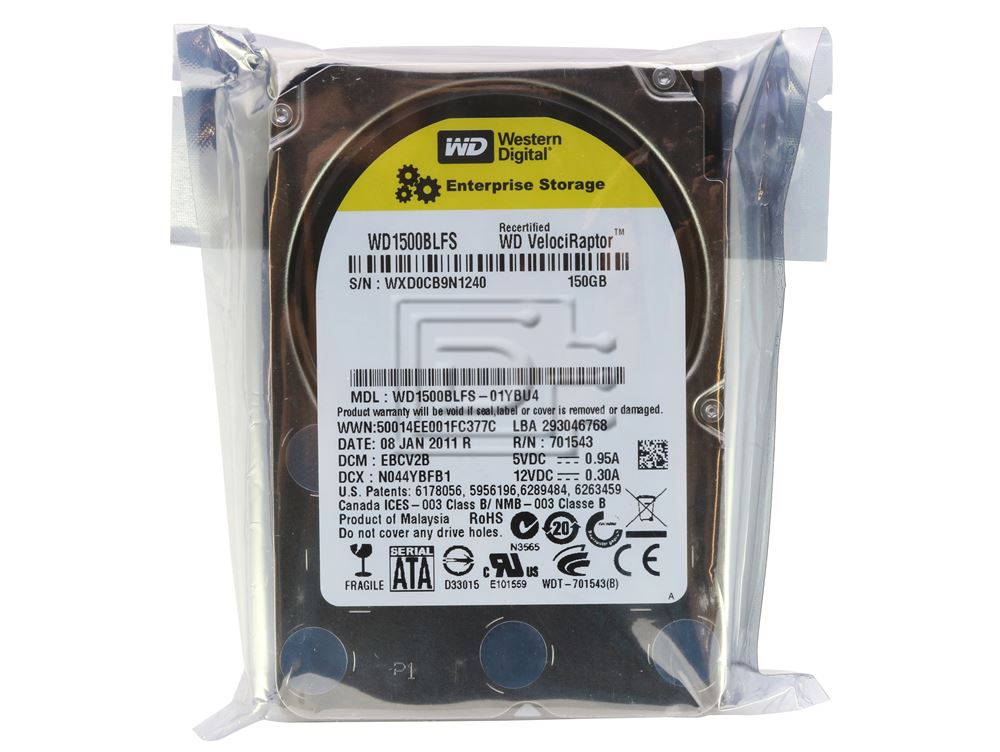

Western Digital VelociRaptor WD1500BLFS 150GB 10K 2.5" SATA Enterprise Hard Drive - Factory Recertified
Engineered for maximum speed! WD VelociRaptor, the newest member of our unique class of 10,000 RPM SATA hard drives, combines a SATA 3 Gb/s interface and 16 MB cache to deliver performance that’s up to 35% faster than its speedy older brother.
Key Features
| Killer speed - Built on the performance bloodlines of WD Raptor®, these 10,000 RPM drives, with SATA 3 Gb/s interface, and 16 MB cache deliver mind-bending performance. Not only are they 35% faster than the previous generation WD Raptor drives, but they also beat out all other competitors in the field. Rock-solid reliability - Designed and manufactured to mission-critical enterprise-class standards to provide enterprise reliability in high duty cycle environments. With 1.4 million hours MTBF, these drives have the highest available reliability rating on a high capacity SATA drive. Double the capacity - State-of-the-art technology packs twice the capacity per disk compared to its older brother WD Raptor resulting in up to 300 GB of high-performance storage space in this enterprise-class 2.5-inch drive. Ultra-cool operation - WD VelociRaptor consumes 35% less power than the previous generation of WD Raptor. Small form factor - This ultra fast 2.5-inch hard drive is engineered to fit into blade servers and other enterprise storage configurations. (Not designed for use in laptop or notebook computers) Rotary Acceleration Feed Forward (RAFF™) - Optimizes operation and performance when the drives are used in vibration-prone, multi-drive chassis. NoTouch™ ramp load technology - The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit. Ideal For - Blade servers, performance enthusiast systems, workstations, and low-end servers |
Compatibility:
This drive is compatible with any of our SATA drive trays and any of our SATA controllers.
Windows
- Windows® Vista/XP/2000
- SATA interface connector on motherboard or SATA host controller*
- Available 2.5-inch internal drive bay
*Compatibility may vary depending on user's hardware configuration and operating system.
Drive specification | WD1500BFLS |
Formatted Gbytes (512 bytes/sector) | 150 |
Spindle speed (RPM) | 10,000 |
I/O data transfer rate (MBps) | 300 |
Cache buffer | 16 Mbytes |
Interface Type | Serial ATA-300 |
Average latency | 3.00 ms |
Seek time (read / write) ms | 4.2 / 4.7 |
Track-to-track seek | 0.7 ms |
Track-to-track seek - Write | 0.4 ms (average), 0.75 (maximum) |
Dimensions (HxLxW) inches | 0.5905 / 3.9369 / 2.7499 |
Weight | 0.48 lbs |
Operating Shock (Read) | 65G, 2ms |
Non-operating Shock | 300G, 2ms |
Temperature - Operating | 41F - 131F |
Temperature - Non-operating | -40F - 158F |
Current Requirements 12VDC (Read/Write, Idle, Standby, Sleep) | 225ma / 200ma / 6ma / 6ma |
Current Requirements 5VDC (Read/Write, Idle, Standby, Sleep) | 675ma / 425ma / 70ma / 70ma |
Click here to view the manufacturer's item description/brochure
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Factory Refurbished
The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.
The product has a manufacturer warranty for the time period specified.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
