Western Digital Part #/MPN: WD1500BLFS
DiscTech Item #: WDC-WD1500BLFS-BN-5Y
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Interface Types: SATA
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Sustained Throughput: 126
Average Seek Time: 4.2 / 4.7
Electrical Interface: SATA 300 - 3.0Gbps
On-Board Cache: 16MB

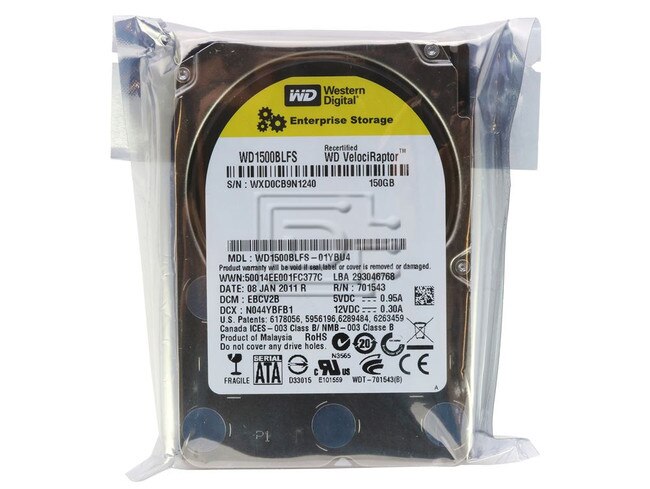

Western Digital VelociRaptor WD1500BLFS 150GB 10K 2.5" SATA Enterprise Hard Drive - Brand New
Engineered for maximum speed! WD VelociRaptor, the newest member of our unique class of 10,000 RPM SATA hard drives, combines a SATA 3 Gb/s interface and 16 MB cache to deliver performance that’s up to 35% faster than its speedy older brother.
|Killer speed - Built on the performance bloodlines of WD Raptor®, these 10,000 RPM drives, with SATA 3 Gb/s interface, and 16 MB cache deliver mind-bending performance. Not only are they 35% faster than the previous generation WD Raptor drives, but they also beat out all other competitors in the field. |
Rock-solid reliability - Designed and manufactured to mission-critical enterprise-class standards to provide enterprise reliability in high duty cycle environments. With 1.4 million hours MTBF, these drives have the highest available reliability rating on a high capacity SATA drive.
Double the capacity - State-of-the-art technology packs twice the capacity per disk compared to its older brother WD Raptor resulting in up to 300 GB of high-performance storage space in this enterprise-class 2.5-inch drive.
Ultra-cool operation - WD VelociRaptor consumes 35% less power than the previous generation of WD Raptor.
Small form factor - This ultra fast 2.5-inch hard drive is engineered to fit into blade servers and other enterprise storage configurations. (Not designed for use in laptop or notebook computers)
Rotary Acceleration Feed Forward (RAFF™) - Optimizes operation and performance when the drives are used in vibration-prone, multi-drive chassis.
NoTouch™ ramp load technology - The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit.
Ideal For - Blade servers, performance enthusiast systems, workstations, and low-end servers
This drive is compatible with any of our SATA drive trays and any of our SATA controllers.
- Windows® Vista/XP/2000
- SATA interface connector on motherboard or SATA host controller*
- Available 2.5-inch internal drive bay
*Compatibility may vary depending on user's hardware configuration and operating system.
Formatted Gbytes (512 bytes/sector)
Spindle speed (RPM)
I/O data transfer rate (MBps)
Seek time (read / write) ms
4.2 / 4.7
Track-to-track seek - Write
0.4 ms (average), 0.75 (maximum)
Dimensions (HxLxW) inches
0.5905 / 3.9369 / 2.7499
Operating Shock (Read)
Temperature - Operating
41F - 131F
Temperature - Non-operating
-40F - 158F
Current Requirements 12VDC (Read/Write, Idle, Standby, Sleep)
225ma / 200ma / 6ma / 6ma
Current Requirements 5VDC (Read/Write, Idle, Standby, Sleep)
675ma / 425ma / 70ma / 70ma
Click here to view the manufacturer's item description/brochure
Weight: 1.8 lb
Warranty: 5 Year Manufacturer
The product is brand new.
5 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
