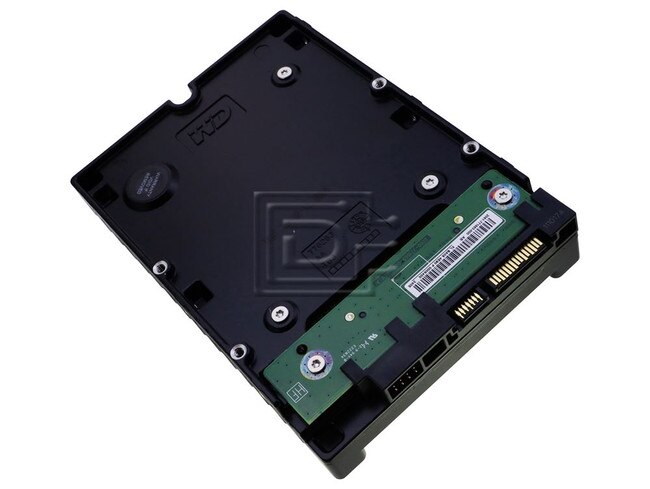

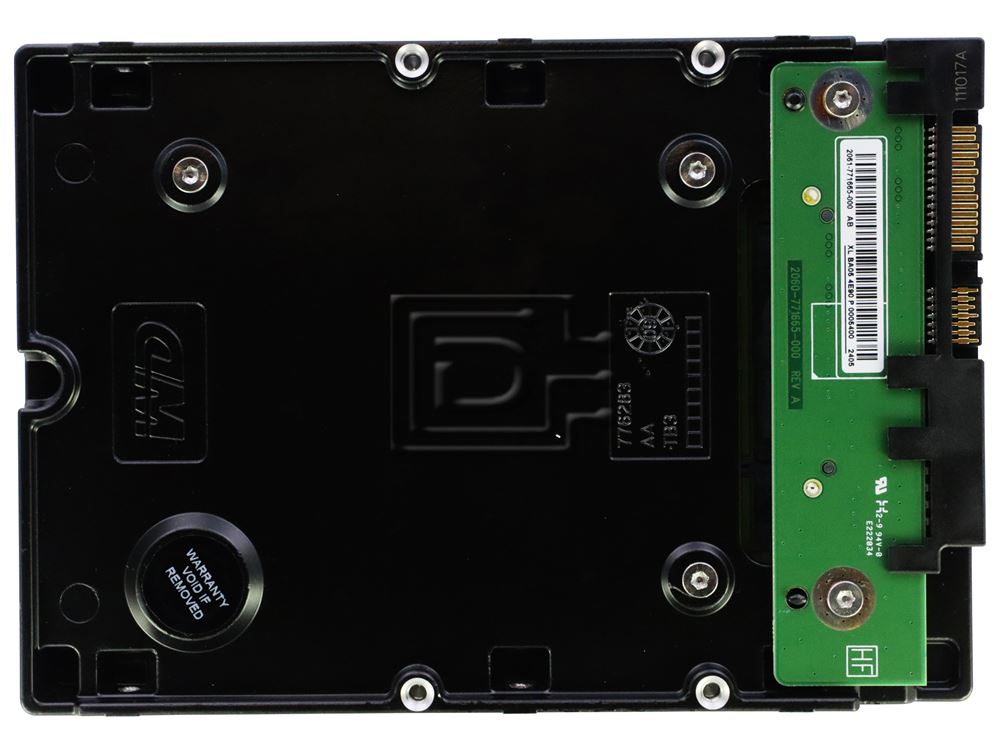

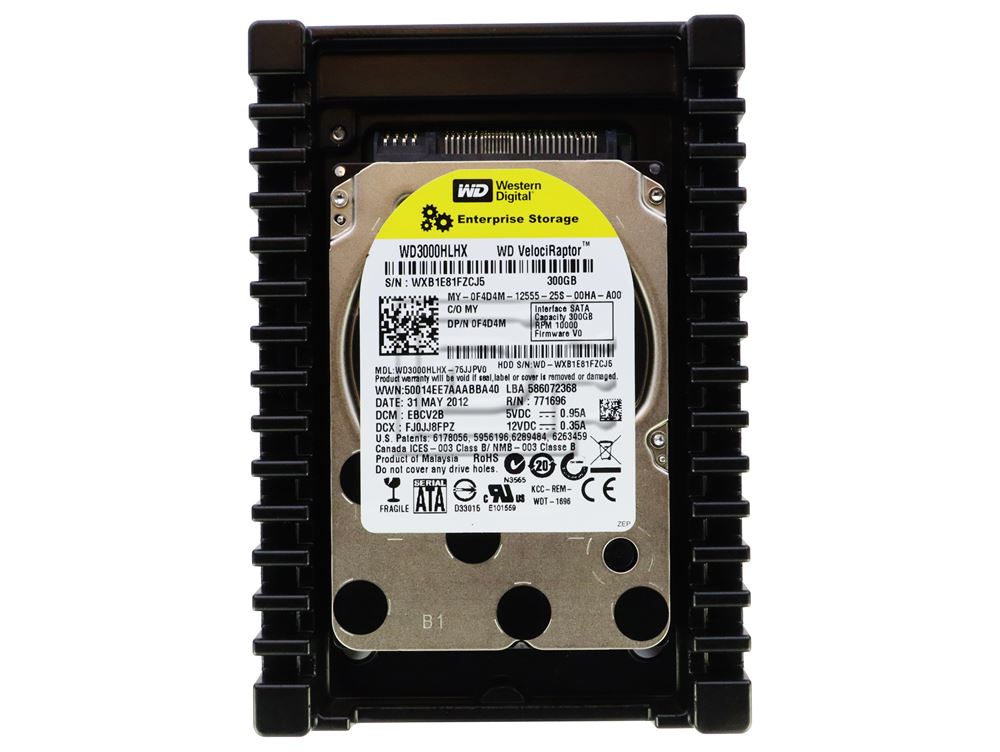

Western Digital VelociRaptor WD3000HLHX SATA Enterprise Hard Drive

(0) No Reviews Yet

Western Digital Part #/MPN: WD3000HLHX

DiscTech Item #: WDC-WD3000HLHX-RF-OE


$139.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$139.00

Enterprise Grade

Capacity: 300GB

Speed: 10,000RPM

Interface Types: SATA

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 126

Average Seek Time: 3.6 / 4.2

Electrical Interface: SATA 600 - 6.0Gbps

On-Board Cache: 32MB

Western Digital VelociRaptor WD3000HLHX 300GB 10K SATA  Enterprise Hard Drive - Refurbished

Western Digital VelociRaptor WD3000HLHX 300GB 10K SATA 3.5"  Enterprise Hard Drive

IDEAL FOR
Performance enthusiast systems, workstations, and low-end servers.

FASTEST SATA HARD DRIVE ON THE PLANET.
10,000 RPM, 32 MB cache and a SATA 6 Gb/s interface gives gamers the speed advantage they crave.

ROCK-SOLID RELIABILITY.
Best-in-class 1.4 million hour MTBF and 5-year limited warranty, makes these the most reliable SATA hard drives around.

SATA 6 GB/S INTERFACE
Twice the interface speed with backwards compatibility to legacy SATA standards.
ICEPACK MOUNTING FRAME
The 2.5-inch WD VelociRaptor is enclosed in a backplane-ready 3.5-inch enterprise-class mounting frame with a built-in heat sink that keeps this powerful little drive extra cool when installed in high-performance desktop chassis.

KILLER SPEED
SATA 6 Gb/s interface and 32 MB cache enhance the next generation 10,000 RPM WD VelociRaptor making it up to 15% faster than the award-winning previous generation.

ROTARY ACCELERATION FEED FORWARD (RAFF)
Optimizes operation and performance when the drives are used in vibration-prone, multi-drive chassis.
NOTOUCH RAMP LOAD TECHNOLOGY
The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit.
ENVIRONMENTALLY CONSCIOUS
In addition to being ROHS compliant, this generation of WD VelociRaptor is also a halogen-free design.


Compatibility:

This drive is compatible with any of our 3.5" SATA drive trays and any of our SATA controllers.

Drive specification

WD3000HLHX

Formatted Gbytes (512 bytes/sector)

300

Bytes per sector

512

Spindle speed (RPM)

10,000

I/O data transfer rate (MBps)

600

Cache buffer

32 Mbytes

Interface Type

Serial ATA-600

User Sectors

586,072,368

Seek time (read / write) ms

3.6 / 4.2

Track-to-track seek

0.4 ms

Track-to-track seek - Write

0.4 ms (average), 0.75 (maximum)

Start/stop cycles

50,000 minimum

Dimensions (HxLxW) inches

1.028 / 5.787 / 4.00

Weight

1.08 lbs

Operating Shock (Read)

65G, 2ms

Non-operating Shock

300G, 2ms

Temperature - Operating

41F - 131F

Temperature - Non-operating

-40F - 158F

Current Requirements 12VDC (Read/Write, Idle, Standby, Sleep)

225ma / 200ma / 6ma / 6ma

Current Requirements 5VDC (Read/Write, Idle, Standby, Sleep)

675ma / 425ma / 70ma / 70ma

Weight: 1.8 lb

Warranty: 1 Year DiscTech

Refurbished

Condition Levels Explained

The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items. Watch a video about our refurbishing process

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
