Western Digital Part #/MPN: WD2004FBYZ
DiscTech Item #: WDC-WD2004FBYZ-NP-OE-DEL
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 2TB
Speed: 7,200RPM
Interface Types: SATA
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 164
Average Seek Time: 7.7/7.6
Electrical Interface: SATA 600 - 6.0Gbps
On-Board Cache: 64MB

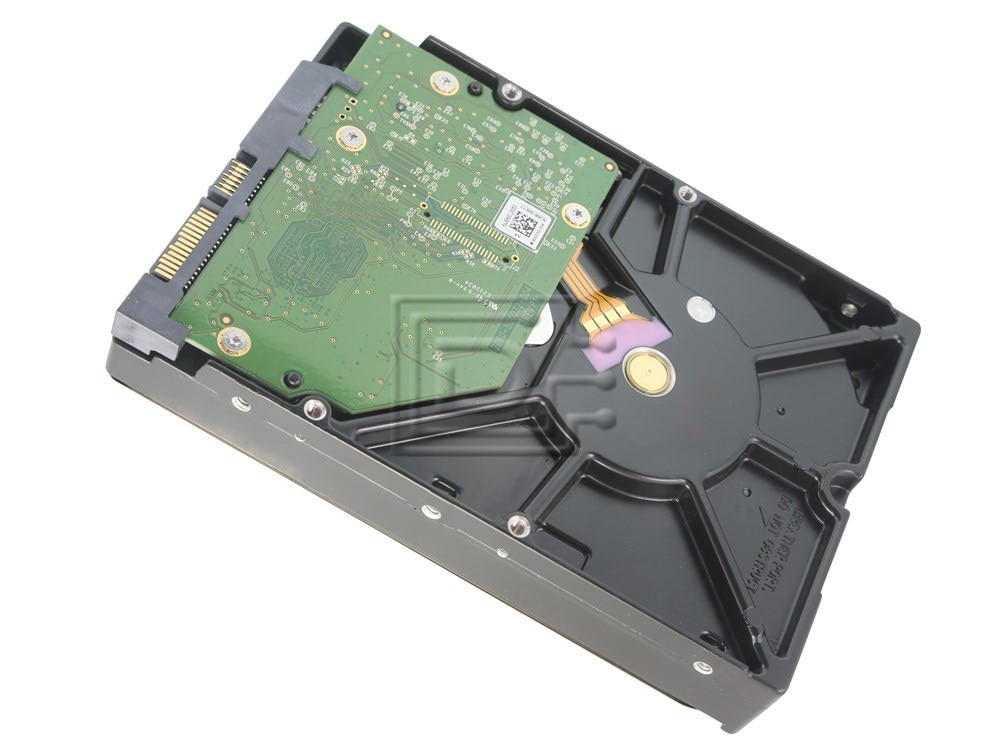

Western Digital WD Re WD2004FBYZ / MP6GM 2TB 3.5in 6Gbps 7.2K Enterprise Serial ATA / SATA Hard Drive - New Pull
Western Digital WD Re WD2004FBYZ / MP6GM 2TB / 2000GB 3.5" 6.0 Gb/s 7,200 RPM Enterprise Serial Attached Technology Attachment Hard Disk Drive - New Pull
Dell Model Number: MP6GM, 0MP6GM
WD Re
Datacenter Capacity HDD
Performance-optimized high-capacity storage for high-intensity applications.
Advanced drive technology that delivers consistent high performance in a multitude of applications, and with up to ten times the workload capability of desktop drives, the WD Re drive is the workhorse of WD’s datacenter portfolio. The WD Re drive is perfect for high-availability storage arrays that demand a robust storage device, and this drive’s high performance, capacity, and reliability make it ideal for data warehousing/mining and high-performance computing. The WD Re uses a SATA interface to provide maximum flexibility and compatibility.
Product Benefits
- High capacity nearline drive - Multiple capacities to suit even the most demanding datacenter, enterprise server, or cloud storage needs.
- Designed for high-intensity applications - Designed to handle workloads up to 550TB per year – among the highest workload capability of any 3.5-inch hard drive – delivering both performance and reliability to any datacenter environment.
- StableTrac™ - (excluding FBYZ models) The motor shaft is secured at both ends to reduce system-induced vibration and stabilize platters for accurate tracking during read and write operations.
- Vibration Protection - Enhanced RAFF™ technology includes sophisticated electronics to monitor the drive and correct both linear and rotational vibration in real time. The result is a significant performance improvement in high vibration environments over desktop drives.
- Dual actuator technology - A head positioning system with two actuators that improves positional accuracy over the data track(s). The primary actuator provides coarse displacement using conventional electromagnetic actuator principles. The secondary actuator uses piezoelectric motion to fine tune the head positioning to a higher degree of accuracy.
- Multi-axis shock sensor - Automatically detects the subtlest shock events and compensates to protect the data.
- RAID-specific, time-limited error recovery (TLER) - Reduces drive fallout caused by the extended hard drive error-recovery processes common to desktop drives.
- Designed for quality and reliability - With 2.0 million hours MTBF, these drives ensure one of the highest level reliability ratings for high-capacity enterprise storage needs.
- Thermal extended burn-in test - Each drive is put through extended burn-in testing with thermal cycling to ensure reliable operation.
- NoTouch™ ramp load technology - The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit.
- Dynamic fly height technology - Each read-write head’s fly height is adjusted in real time for optimum reliability.
Applications
Online Analytical Processing (OLAP), data warehousing/mining, high-performance computing, high-end NAS/SAN and surveillance systems, and high-availability cloud storage arrays.
The WD Advantage
WD puts datacenter products through extensive Functional Integrity Testing (F.I.T.) prior to any product launch. This testing ensures our products consistently meet the high quality and reliability standards of the WD brand. Following a FIT test the Enterprise System Group (ESG) testing validates interoperability with HBAs, operating systems, and drivers, to ensure an even greater level of quality, reliability, and peace of mind.
WD also has a detailed Knowledge Base with helpful articles and software utilities. Our customer support lines have long operational hours to ensure you get the help you need when you need it. Our toll-free customer support lines are here to help or you can access our WD Support site for additional details.
Compatibility:
This drive is compatible with any server that accepts 3.5inx1.0in SCSI Drive.
| Specifications | |
|---|---|
| 512 native model number | WD2004FBYZ |
| Dell Model Number | MP6GM |
| Interface | SATA 6 Gb/s |
| Formatted capacity | 2TB / 2000GB |
| User sectors per drive | 3,907,029,168 |
| Native command queuing | Yes |
| Form factor | 3.5-inch |
| RoHS compliant | Yes |
| Performance | |
| Data transfer rate (max) - Buffer to host - Host to/from drive (sustained) | - 6 Gb/s - 164 MB/s |
| Cache (MB) | 64 |
| Rotational speed (RPM) | 7200 |
| Reliability/Data Integrity | |
| Load/unload cycles | 600,000 |
| Non-recoverable read errors per bits read | <10 in 1016 |
| MTBF (hours) | 2,000,000 |
| AFR (%) | 0.44 |
| Power Management | |
| Average power requirements (W) - Sequential read - Sequential write - Random read/write - Idle | - 7.7 - 7.6 - 9.1 - 6.2 |
| Environmental Specifications | |
| Temperature (°C) - Operating - Non-operating | - 5 to 60 - -40 to 70 |
| Shock (Gs) - Operating (2 ms, read/write) - Operating (2 ms, read) - Non-operating (2 ms) | - 30 - 65 - 300 |
| Acoustics (dBA) - Idle - Seek (average) | - 31 - 34 |
| Physical Dimensions | |
| Height (in./mm, max) | 1.028/26.1 |
| Length (in./mm, max) | 5.787/147 |
| Width (in./mm, ± .01 in.) | 4/101.6 |
| Weight (lb./kg, ± 10%) | 1.55/0.70 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: MP6GM 0MP6GM
Weight: 1.8 lb
Warranty: 1 Year DiscTech
New Pull
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
