Western Digital WD3001BKHG 300GB SAS Hard Drive

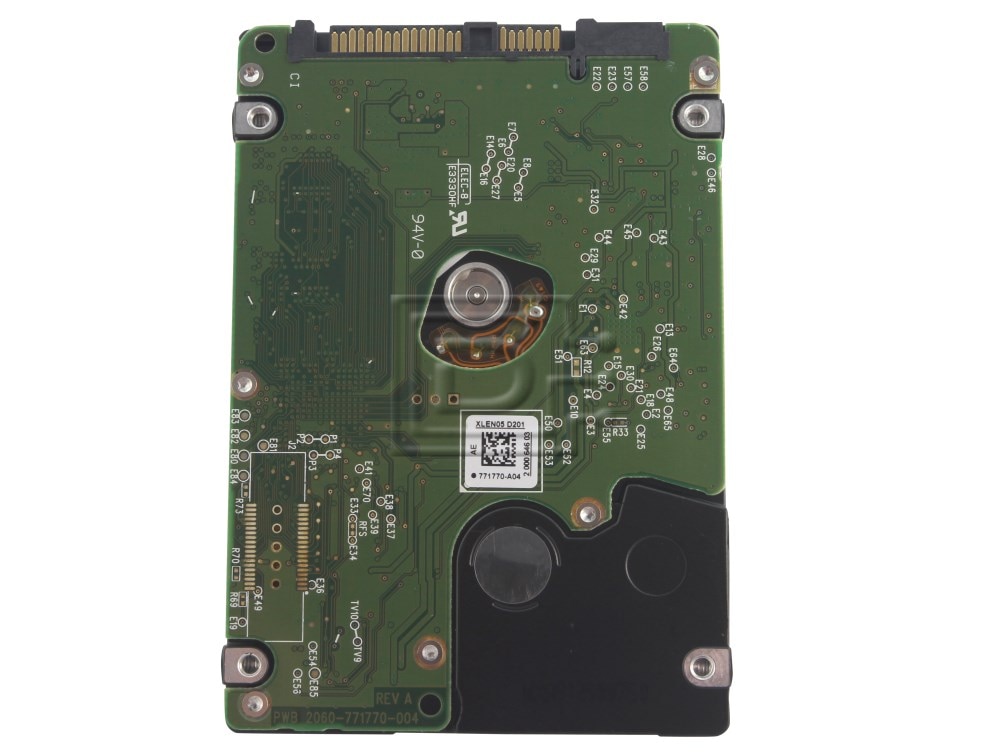

Western Digital WD3001BKHG CWHNN 0CWHNN WD SAS Hard Drives Image 1 image
  • Brand New
    Condition Levels Explained

    The product is brand new.

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

  • 1 Year DiscTechWarranty
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

$159.00

Capacity:300GB
Speed:10K RPM
Interface Types:SAS
Form Factor:2.5" SFF Server Drive
Electrical Interface:SAS-2 6Gbps
RAM:32MB

Description

Western Digital Xe WD3001BKHG 300GB 10K 6Gbps 2.5" SFF Serial Attached SCSI Hard Drive - Brand New OEM

Western Digital Xe WD3001BKHG 300GB 10K RPM 6Gbps 2.5inch Small Form Factor Serial Attached SCSI Hard Drive - Brand New OEM

Ultra-fast SAS storage
WD S25 delivers 6 Gb/s transfer rates, sustained sequential data rates up to 204MB/s.

Industry’s highest reliability rating
With a field-tested MTBF of up to 1.75 million hours, these high performance drives are perfect for enterprise server and enterprise storage applications. (BKHG models)

Low power consumption
This 2.5-inch SAS drive requires less than 8 watts to operate.

Ultra-cool operation
The small form-factor, 70 percent smaller than 3.5-inch drives, allows more system airflow resulting in lower cooling costs.

Rotary Acceleration Feed Forward (RAFF)
Optimizes operation and performance when the drives are used in vibrationprone, multi-drive chassis.

NoTouch ramp load technology
The recording head never touches the disk media ensuring significantly less wear to the recording head and media as well as better drive protection in transit.

Environmentally conscious
In addition to being ROHS compliant, these drives also incorporate a halogen free design.

Dell MPN : CWHNN 0CWHNN

Compatibility:

This drive is compatible with any server that accepts small form factor (SFF) SAS hard drives

Specifications

Specfications300 GB
Model Number WD3001BKHG
InterfaceSAS 6 Gb/s
Formatted capacity 300 GB
User sectors per drive 586,072,368
SCSI command queuing Yes
Form Factor 2.5-inch
Performance
Data transfer rate (max)
Buffer to host 6 Gb/s
Host to/from drive (sustained) 204 MB/s
Cache (MB) 32
Rotational speed (RPM) 10,000
Average drive ready time (sec) 13
Reliability/Data Integrity
Load/unload cycles 600,000
Non-recoverable read errors per bits read <10 in 10^17
MTBF (hours) 1,750,000
Power Management
12VDC (A, max) 1.6
Average power requirements (W)
Sequential read/write 5.3 /7.0
Random read/write 6.4
Idle5.2
Environmental Specifications
Temperature (C)
Operating5 to 55
Non-OPERATING (2 ms) -40 to 70
Average acoustics (dBA)
Idle mode 28
Performance seek mode 34
Physical Dimensions
Height (in./mm, max) 0.59/15
Length (in./mm, max) 3.94/100
Width (in./mm,)2.75/69.85
Weight (lb./kg) 0.51/0.23
Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: CWHNN 0CWHNN

Weight: 1 lb

Warranty: 1 Year DiscTech

Condition

Brand New

Warranty

1 Year DiscTech Warranty
