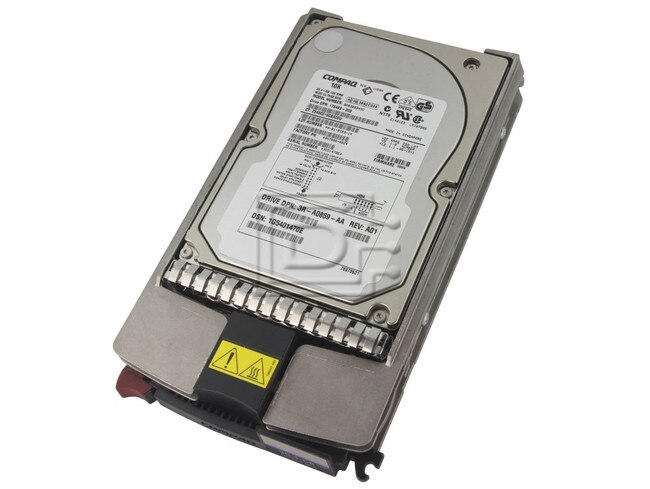

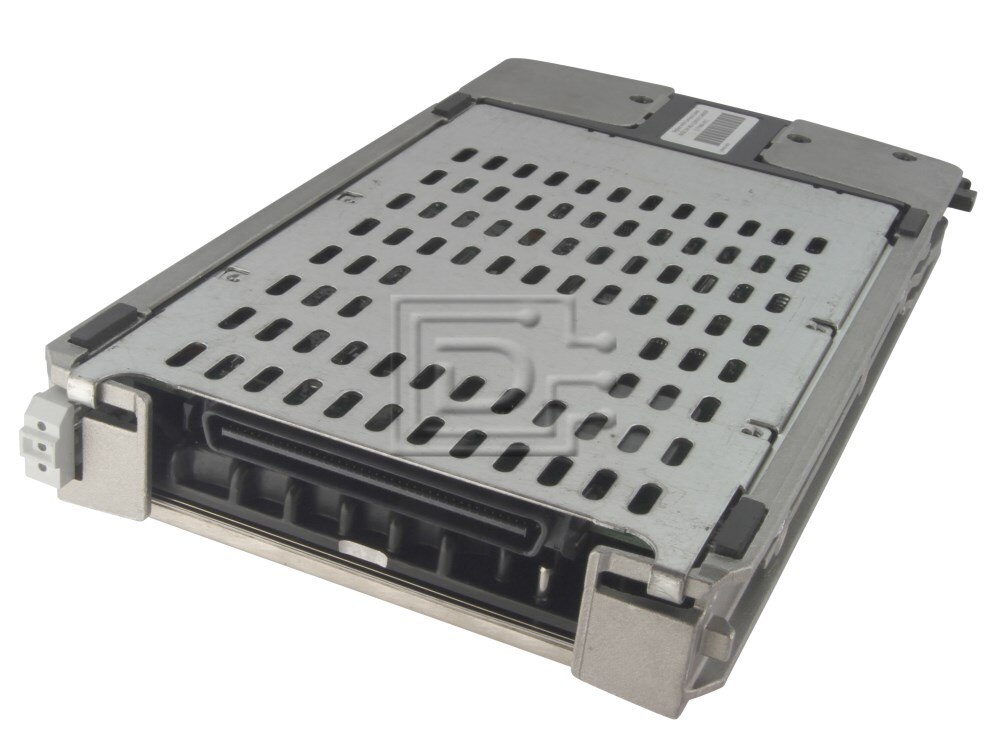

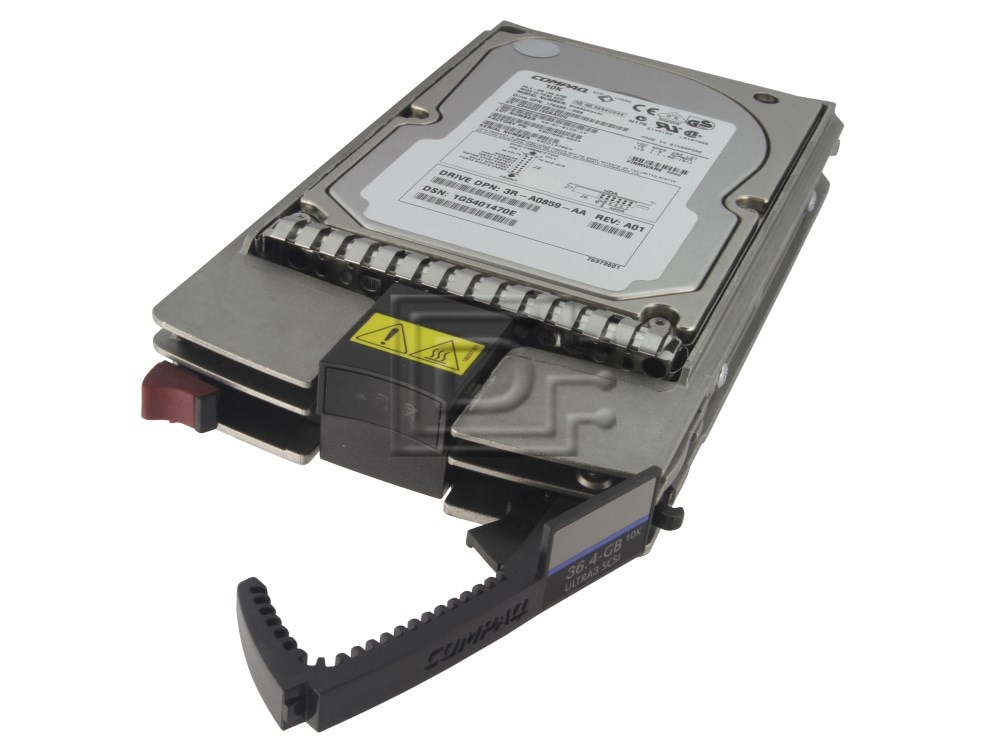

Compaq 176493-003 SCSI Hard Drive

The Cheetah 36LP family has the following standard features:

• Integrated Ultra160 SCSI controller
• Multimode SCSI drivers and receivers—single-ended (SE) and low voltage differential (LVD)
• 16 bit I/O data bus
• Asynchronous and synchronous data transfer protocol (supports Ultra160 transfer rate)
• Firmware downloadable via SCSI interface
• Selectable even byte sector sizes from 512 to 2,064 bytes/sector
• Programmable sector reallocation scheme
• Flawed sector reallocation at format time
• Programmable auto write and read reallocation
• Reallocation of defects on command (post format)
• ECC maximum burst correction length of 240 bits with a guaranteed burst correction length of 233 bits.
• Sealed head and disc assembly
• No preventative maintenance or adjustment required
• Dedicated head landing zone
• Embedded servo design
• Self diagnostics performed when power is applied to the drive
• Zoned bit recording (ZBR)
• Vertical, horizontal, or top down mounting
• Dynamic spindle brake
• 4,096 kbyte data buffer (16,384 kbytes on LWV and LCV models)
• Hot plug compatibility (Section 9.6.4.2 lists proper host connector needed) for LC and LCV model drives
• Drive Self Test (DST)
• Supports SCSI bus fairness

Media characteristics

The media used on the drive has a diameter of approximately 3.3 inches (84 mm). The aluminum substrate is
coated with a thin film magnetic material, overcoated with a proprietary protective layer for improved durability
and environmental protection.

Performance

• Supports industry standard Ultra3 SCSI interface
• Programmable multi-segmentable cache buffer (see Section 4.5)
• 10,033 RPM spindle. Average latency = 2.99 ms
• Command queuing of up to 64 commands
• Background processing of queue
• Supports start and stop commands (spindle stops spinning)

Reliability

• 1,200,000 hour MTBF
• LSI circuitry
• Balanced low mass rotary voice coil actuator
• Incorporates industry-standard Self-Monitoring, Analysis and Reporting Technology (S.M.A.R.T.)

 SEAGATE TECHNOLOGY, INC. 1-800-SEAGATE http://www.seagate.com (C)opyright 1999 ST-336704LW Ultra160 SCSI Wide (Cheetah 36LP, LVD) ÉÍÍÍÍÍÍÍÍÍÍÍ» º REAR VIEW º (ST-336704LW/LWV only) ÈÍÍÍÍÍÍÍÍÍÍͼ (TOP) J5 Auxiliary ___________________ ÚÄÄ Ä1¿/ÍÍÍÍÍÍÍÍÍ\ Í( ×××××××××××××××××1)ͳ::::::³³ 0 0 0 0 ÆÍ \ÄÄÄÄÄÄÄÄÄÄÄijÄÄÄÄ/ À ÄÄ 2ÙÀÄ5ÄGÄGÄ12Ù 68 pin I/O CableÙ ³³³³³³ Connection Male ³³³³³³ SCSI ID = 0 (none) ³³³³³ÀÄÄ SCSI ID = 1 pin-11 +5v ÄÄÙ³³³ÀÄÄÄ SCSI ID = 2 pin-10 GND ÄÄÄÙ³ÀÄÄÄÄ SCSI ID = 4 ÃÄÄÄÄÄ SCSI ID = 8 pins 9 & 12 no connection ÀÄÄÄÄÄÄ or pin-8 Activity LED* * These pins are driven low for 250ms after PWR ON and RESET to allow jumper selectable SCSI ID as shown above. ÉÍÍÍÍÍÍÍÍÍÍÍ» º REAR VIEW º (ST-336704LC/LCV only) ÈÍÍÍÍÍÍÍÍÍÍͼ 80 pin I/O and DC Power Wall/bracket Connection ³ Female J1 /ÄÄÄijÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ\ TOP (HDA) ÍÍÍÍÍÍÍÍÍÍ/ ×××××××××××××××××××× \ÍÍÍÍÍÍÍÍÍÍ (\Ä1ÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ40/) BOTTOM Notes on 80 pin I/O connector: pins 1 - 4 = +12v 41 - 44 = 12v GND 34 - 36 = +5v 74 - 76 = 5v GND 37 = SYNC 77 = LEDC 38 = MTRON 78 = DLYDST 39 = SCSIA0 79 = SCSIA1 40 = SCSIA2 80 = SCSIA3 Mating connector: AMP US p/n: 2-557103-1 straight-in, Male 80-pin 2-557101-1 right angle to PCB ÉÍÍÍÍÍÍÍÍÍÍÍ» º SIDE VIEW º (ST-336704LW/LC) ÈÍÍÍÍÍÍÍÍÍÍͼ FRONT TOP (HDA) J2 87654321 Õ͸ OF ÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍPÍWÍAÍÍÍÍÍ͵J1 DRIVE BOTTOM :::::::: Ô; ³³³³³³³³ Force Single-ended (LVD models only) ÄÙ³³³³³³À Term Power (LW only)¿ Start Delay (12 secs * ID) ÄÄÙ³³³³ÀÄ Reserved ³ Motor Start ÄÄÄÙ³³ÀÄÄ Reserved ³ Write Protect ÄÄÄÄÙÀÄÄÄ Parity Disable ³ ³ ³ ÚÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄ¿ ³ ³ Termination Power-source Table ÃÄÄÄÄÄÄÄÄÄÄÄÄÄÄÙ ÃÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÄÁÄÄÄÄÄ¿ ³ ....ÍÍÍÍÍPWA edgeÍÍÍÍÍ ³ ³ 2 1 ³ ³ A Drive Supplies Bus ÖÄ· ³ ³ øºøº ³ ³ (not used on LC model) øÓø½ ³ ³ A ³ ÀÄÄÄÄÄÄÄÄÄDefault no jumper ÄÄÄÄÄÄÄÄÄÄÄÙ Note: LW and LC drives do not have internal terminators or any other way of adding internal terminators to the drive; use external active termination if required. Use active (ANSI SCSI-2 Alternative 2) terminators when terminating the bus. Use active negation terminators when terminating a SCSI Ultra2 bus operating in Low Voltage Differential (LVD) mode. ÉÍÍÍÍÍÍÍÍÍÍÍÍ» º FRONT VIEW º (ST-336704LW/LC) ÈÍÍÍÍÍÍÍÍÍÍÍͼ ÚÄÄ´Reserved. Shipped with cover installed. ³ ÀDo not remove. Do not install jumpers TOP (HDA) ÕØÍÍ͸ 1 ÍÍPÍWÍAÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍÍ͵::::³::::::ÆÍÍ * BOTTOM ÔÍÍÍ;123456 ³ J6 ³³³³³³ LED ÄÙ ³³³³³³ Remote LED Ù³³³³À ID 1 (pin-11 +5v) ³³³ÀÄ ID 2 Reserved ÄÙ³ÀÄÄ ID 4 (pin-10 GND) ÀÄÄÄ ID 8 ST-336704LW UNFORMATTED CAPACITY (GB) ________________43.7 FORMATTED CAPACITY (GB) __________________36.7 AVERAGE SECTORS PER TRACK ________________423 rounded down ACTUATOR TYPE ____________________________ROTARY VOICE COIL TRACKS ___________________________________169,200 CYLINDERS ________________________________14,100 user HEADS ______PHYSICAL______________________12 DISCS (3.0 in) ___________________________6 MEDIA TYPE _______________________________THIN FILM/GMR RECORDING METHOD _________________________PRML 16/17 EPR4 INTERNAL TRANSFER RATE (mbits/sec)________280 to 427 INTERNAL FORMATTED TRANSFER RATE (MB/sec)_26.7 to 40.2 EXTERNAL TRANSFER RATE (mbyte/sec) _______40 Sync Low Voltage Differential(LVD) _______80/160 Sync SPINDLE SPEED (RPM) ______________________10,033 AVERAGE LATENCY (mSEC) ___________________2.99 BUFFER (/optional LWV and LCV) ___________4MB/16MB Read Look-Ahead, Adaptive, Multi-Segmented Cache INTERFACE ________________________________Ultra-SCSI Wide Low Voltage Differential __________Ultra3-SCSI Wide ASA II, SCAM level 2 (1 default) BYTES PER TRACK __________________________215,248 SECTORS PER DRIVE ________________________71,687,369 TPI (TRACKS PER INCH) ____________________18,145 BPI (PEAK KBITS PER INCH) ________________334 AVERAGE ACCESS (ms read/write)____________5.4/6.2 Drive level without controller overhead SINGLE TRACK SEEK (ms read/write) ________0.8/1.1 MAX FULL SEEK (ms read/write) ____________11.2/11.9 MTBF (power-on hours) ____________________1,200,000 SHOCK (G's, 11/2/.5 ms): operating (Read/Write) __________10 abnormal ________________________40 nonoperating ____________________75/200/100 ACOUSTICS (Bels typical, sound power) ____3.9 POWER DISSIPATION (watts/BTUs) Active ____/ Idle ______10.91/37.2 POWER REQUIREMENTS: +12V START-UP (amps) _2.2 +12V TYPICAL (amps) __0.58 idle +5V START-UP (amps) __0.86 +5V TYPICAL (amps) ___0.79 idle IDLE (watts) _________ LANDING ZONE (cyl) _______________________AUTO PARK IBM AT DRIVE TYPE ________________________0 or NONE Physical: Height (inches/mm): 1.0/25.4 Width (inches/mm): 4.00/101.6 Depth (inches/mm): 5.75/146 Weight (lbs/kg): 1.3/0.589 Already low-level formatted at the factory with x spare sectors at the end of each x cylinder region. ZBR = Zone Bit Recording = Variable sectors per track Seagate reserves the right to change, without notice, product offerings or specifications. (12/21/99)

Weight: 1.8 lb

Warranty: 1 Year Manufacturer

Factory Refurbished

1 Year Manufacturer Warranty
