Dell Y7D7D 1.6TB HHHL PCIe 4.0 Mixed Use PM1735 AIC SSD

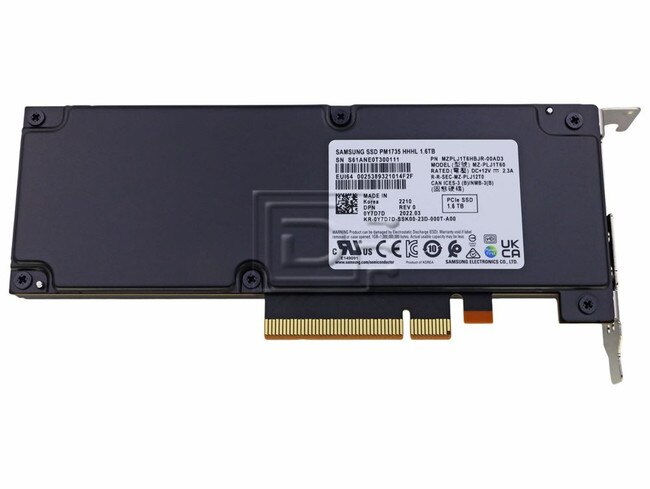

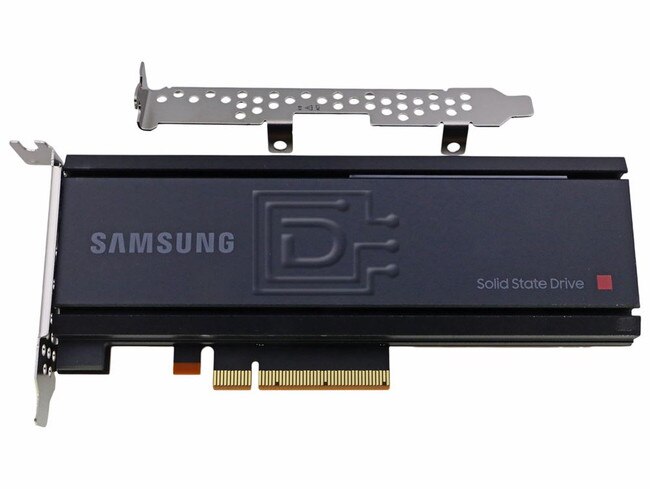

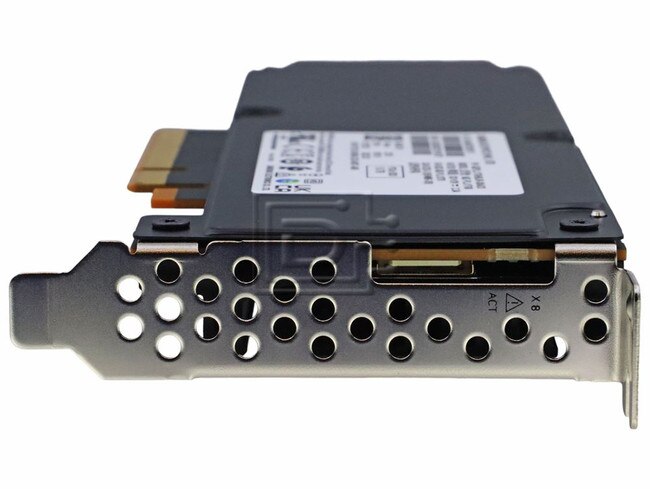

SAMSUNG MZPLJ1T6HBJR Y7D7D 0Y7D7D 3GFMW 03GFMW 3M6PY 03M6PY 1.6TB PCIe NVMe HHHL Image 1 image
  • Certified 95
    Condition Levels Explained

    These products can not qualify as new, however, we have tested and evaluated their health, performance and usage statistics and determined that they have at least 95% of their designed service life remaining. e.g. in SSDs they are guaranteed to have at least 95% endurance remaining.

  • In Stock
    Stock Levels

    We don’t track exact quantities on this item, but it is usually in stock (95% of the time).

  • 1 Year DiscTechWarranty
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

$599.00

Capacity:1.6TB
Speed:Solid State
Interface Types:PCIe
Form Factor:HHHL (Half-Height/Half-Length)
SSD Endurance DWPD:Enterprise Mixed Use / MU
Electrical Interface:PCIe - v4.0 - 32GBps
Click to see more 1.6TB PCIe Solid State Drives

Description

Dell Y7D7D / 3GFMW / 3M6PY Samsung PM1735 MZ-PLJ1T60 / MZPLJ1T6HBJR-00AD3 1.6TB PCIe (HHHL) 4.0 X 8 NVME Mixed Use Enterprise Solid State Drive - Certified 95

Dell-Certified Samsung PM1735 1.6TB PCIe 4.0 NVMe HHHL SSD – Enterprise-Grade Storage for Demanding PowerEdge Workloads

Engineered for Dell server owners who require uncompromising performance, the Samsung PM1735 1.6TB PCIe 4.0 NVMe SSD delivers enterprise-class speed, endurance, and reliability. Optimized for mission-critical applications—AI/ML training, real-time analytics, and high-density virtualization—this Dell-certified drive integrates seamlessly with PowerEdge ecosystems, ensuring maximum ROI for IT infrastructure.

Key Enterprise Features:

PCIe 4.0 x8 NVMe Performance: 7,000 MB/s sequential read and ~1,500K IOPS random read to eliminate data bottlenecks.

3 DWPD Endurance: Built for 24/7 mixed-use workloads (databases, AI, edge computing) with 5-year lifespan assurance.

Dell Ecosystem Integration: Pre-tested firmware and compatibility with PowerEdge servers for plug-and-play deployment.

Power Loss Protection + TCG Opal 2.0: Enterprise-grade data integrity and encryption for compliance-sensitive environments.

Compatibility:

This Dell Certified Samsung PM1735 1.6TB HHHL SSD is compatible with any Dell server supporting HHHL PCIe cards. However, to unlock its full PCIe Gen4 performance (7,000 MB/s read, 1,500K IOPS), ensure your system supports PCIe Gen4. For optimal results, pair it with one of the following Dell PowerEdge servers equipped with PCIe Gen4 slots and risers:

Full Model NameModel NumberServer SeriesModel SeriesGenerationPCIe Gen
PowerEdge R470R470PowerEdgeRack (R)175
PowerEdge R670R670PowerEdgeRack (R)175
PowerEdge R670 CSPR670 CSPPowerEdgeRack (R)175
PowerEdge R6715R6715PowerEdgeRack (R)175
PowerEdge R6725R6725PowerEdgeRack (R)175
PowerEdge R770R770PowerEdgeRack (R)175
PowerEdge R770 CSPR770 CSPPowerEdgeRack (R)175
PowerEdge R7715R7715PowerEdgeRack (R)175
PowerEdge R7725R7725PowerEdgeRack (R)175
PowerEdge MX760cMX760cPowerEdgeModular (MX)165
PowerEdge R360R360PowerEdgeRack (R)164
PowerEdge R660R660PowerEdgeRack (R)165
PowerEdge R660xsR660xsPowerEdgeRack (R)164
PowerEdge R6625R6625PowerEdgeRack (R)165
PowerEdge R760R760PowerEdgeRack (R)165
PowerEdge R760XAR760XAPowerEdgeRack (R)165
PowerEdge R760XD2R760XD2PowerEdgeRack (R)165
PowerEdge R760XSR760XSPowerEdgeRack (R)165
PowerEdge R7615R7615PowerEdgeRack (R)165
PowerEdge R7625R7625PowerEdgeRack (R)165
PowerEdge R860R860PowerEdgeRack (R)165
PowerEdge R960R960PowerEdgeRack (R)165
PowerEdge XE8640XE8640PowerEdgeXE165
PowerEdge XE9680XE9680PowerEdgeXE165
PowerEdge XR7620XR7620PowerEdgeXR165
PowerEdge R250R250PowerEdgeRack (R)154
PowerEdge R350R350PowerEdgeRack (R)154
PowerEdge R450R450PowerEdgeRack (R)154
PowerEdge R550R550PowerEdgeRack (R)154
PowerEdge R650R650PowerEdgeRack (R)154
PowerEdge R650XSR650XSPowerEdgeRack (R)154
PowerEdge R6515R6515PowerEdgeRack (R)154
PowerEdge R6525R6525PowerEdgeRack (R)154
PowerEdge R750R750PowerEdgeRack (R)154
PowerEdge R750XAR750XAPowerEdgeRack (R)154
PowerEdge R750XSR750XSPowerEdgeRack (R)154
PowerEdge R7515R7515PowerEdgeRack (R)154
PowerEdge R7525R7525PowerEdgeRack (R)154
PowerEdge XE8545XE8545PowerEdgeXE154
PowerEdge XR11XR11PowerEdgeXR154
PowerEdge XR12XR12PowerEdgeXR154

Specifications

Samsung® SSD PM1735 Series
Model NumberMZ-PLJ1T60
Product CollectionSamsung® SSD PM1735 Series
Physical dimensions69.90 x 167.65 x 18.71 mm
Capacity1.6TB / 1600GB
StatusMass Production
Launch DateQ4'19
Lithography TypeSamsung TLC 3D V-NAND
Use ConditionsServer/Enterprise
Sequential Read(up to) 7000 MB/s
Sequential Write(up to) 2400 MB/s
Random Read(100% Span) 1000000 IOPS
Random Write(100% Span) 200000 IOPS
LatencyRead 120 µs
LatencyWrite 20 µs
Power - Active21W
Power - Idle7.5W
Vibration - Operating2.17GRMS
Vibration - Non-Operating3.13GRMS
Shock (Operating and Non-Operating1000G
Operating Temperature Range0°C to 55°C
Endurance Rating (Lifetime Writes)12.25 PBW / 12,250 TBW
Mean Time Between Failures (MTBF)2 million hours
Uncorrectable Bit Error Rate (UBER)1 sector per 10-17 bits read
Weight310g
Form FactorHHHL
InterfacePCIe 4.0 x 8, NVMe
Click here to view the manufacturer's item description/brochure

Alternate MPNs: Y7D7D 0Y7D7D 3GFMW 03GFMW 3M6PY 03M6PY

Weight: 1 lb

Warranty: 1 Year DiscTech
