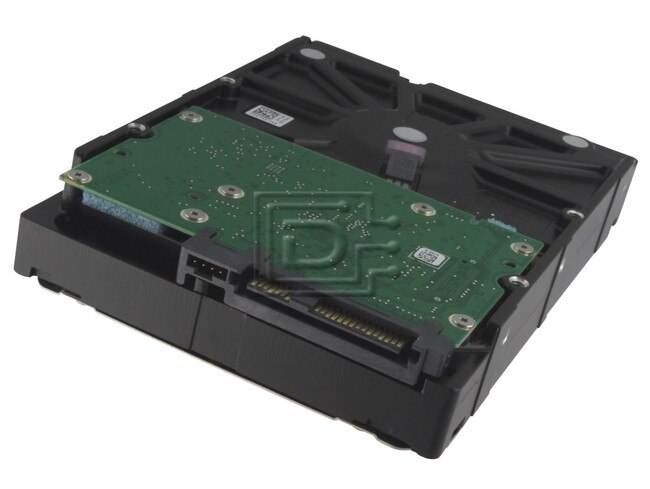

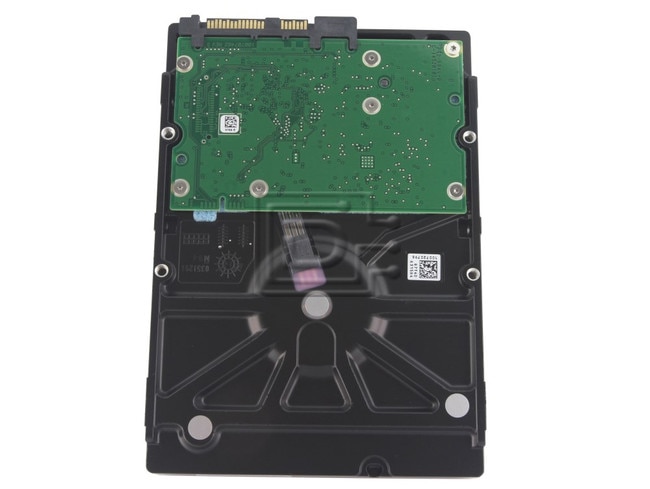

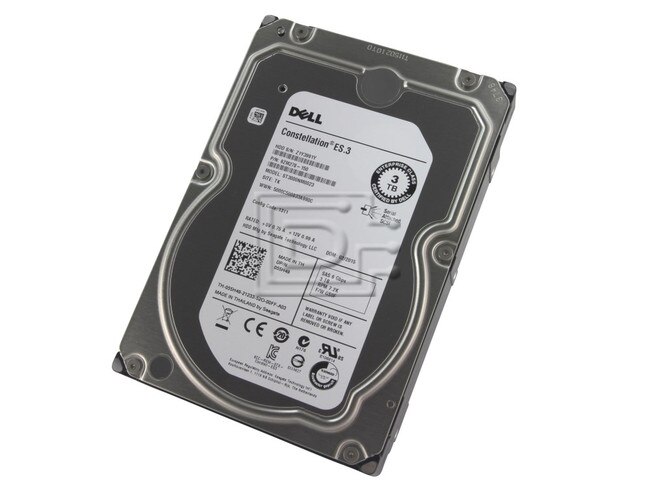

Dell 55H49 / Seagate Constellation ES.3 ST3000NM0023 3TB 7.2K 3.5" SAS Hard Drive
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- In Stock:1Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 3TB |
| Speed: | 7.2K RPM |
| Interface Types: | SAS |
| Form Factor: | 3.5" LFF Hard Drive |
| Electrical Interface: | SAS-2 6Gbps |
| RAM: | 128MB |
Description
Dell 55H49 / Seagate Constellation ES.3 ST3000NM0023 3TB 7.2K 3.5" SAS Hard Drive - Refurbished OEM
Alt MPN: 9ZM278-150
Dell Alt MPN: 55H49 055H49
This Constellation ES.3 SAS drive offers the world’s largest capacities in a 3.5-inch form factor. Build cost-effective maximum capacity storage solutions with enterprise-class, 7200-RPM drives in capacities up to 4TB, with a sixth-generation SAS interface for easy integration. Among 3.5-inch form factor drives, the Constellation ES.3 features the lowest operating power in the industry-less than 10.68W on average.
Additionally, Constellation ES.3 hard drives further power reductions with enhanced PowerChoice™ technology. Purpose-built for enterprise environments, the PowerChoice feature enables the T10-compliant power management standard, allowing organizations to tailor systems for optimal energy usage resulting in up to 90% more power savings. The Constellation ES.3 provides enhanced error correction, super-parity and end-to-end SAS-based data integrity for accurate data storage each and every time. With its robust 7200-RPM performance, ramp load technology and a humidity sensor for optimum performance, it’s the perfect solution for maximizing your enterprise system availability. Powered by our multi-drive firmware and enhanced rotational vibration tolerance, the Constellation ES.3 can help to ensure consistent and reliable performance. In addition, protect data where it lives-on the drive- with our Self-Encrypting Drive option with FIPS 140-2 and Seagate Instant Secure Erase.
Compatibility:
Specifications
Product Specifications | |
| Interface | SAS 6 Gb/s |
Performance Specifications | |
| Rotational Speed | 7,200 RPM (nominal) |
| Cache | 128 MB |
| Transfer Rate, Max Ext (MB/s) | 600 MB/s |
| Sustained Data Rate OD | 175MB/s |
| Average Latency (ms) | 4.16 |
Reliability/Data Integrity | |
| Nonrecoverable Read Errors per Bits Read | 1 in 1015 |
| Annualized Failure Rate (AFR) | 0.63% |
| Physical Dimensions | |
| English | |
| Height | 1.028 Inches |
| Length | 5.787 Inches |
| Width | 4.00 Inches |
| Weight | 1.444 Lbs |
| Metric | |
| Height | 26.1 mm |
| Depth | 147 mm |
| Width | 101.6 mm |
| Weight | 0.635 kg |
| Environmental Specifications | |
| Shock | |
| Operating Shock (Read) | 70/40 (2 ms) |
| Non-operating Shock | 300G (2 ms) |
| Acoustics (belssound power) | |
| Idle Mode | 2.8 |
| Seek Mode 0 | 3.0 |
| Temperature (English) | |
| Operating | 41° F to 131° F |
| Non-operating | -40° F to 158° F |
| Temperature (Metric) | |
| Operating | 5° C to 60° C |
| Non-operating | -40° C to 70° C |
| Electrical Specifications | |
| Current Requirements | |
| Power Dissipation: | |
| Read/Write | 11.27 Watts |
| Idle | 6.73 Watts |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 55H49 055H49 9ZM278-150
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Condition
Refurbished
Warranty
1 Year DiscTech Warranty
