Seagate Part #/MPN: ST3000NM0023
DiscTech Item #: SGT-ST3000NM0023-BN-3Y
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Interface Types: SAS Serial Attached SCSI
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 182
Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps
On-Board Cache: 128MB

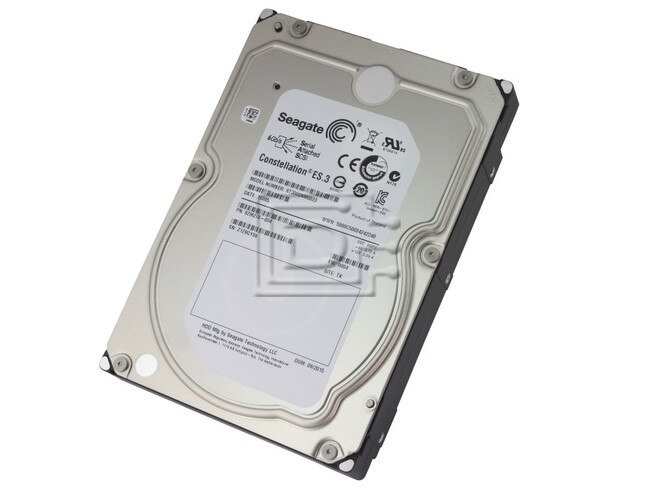

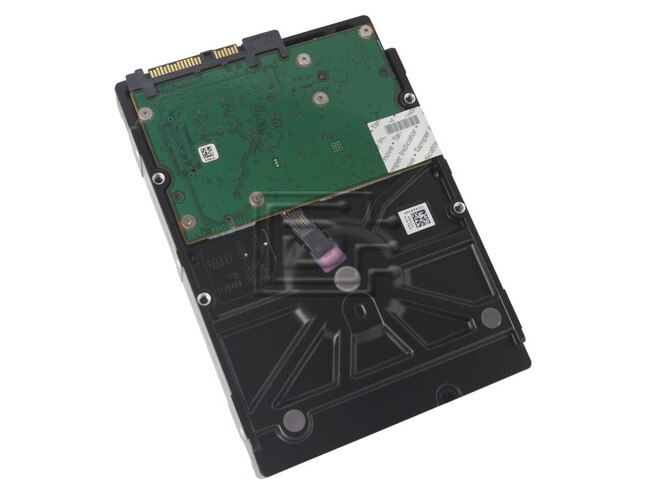

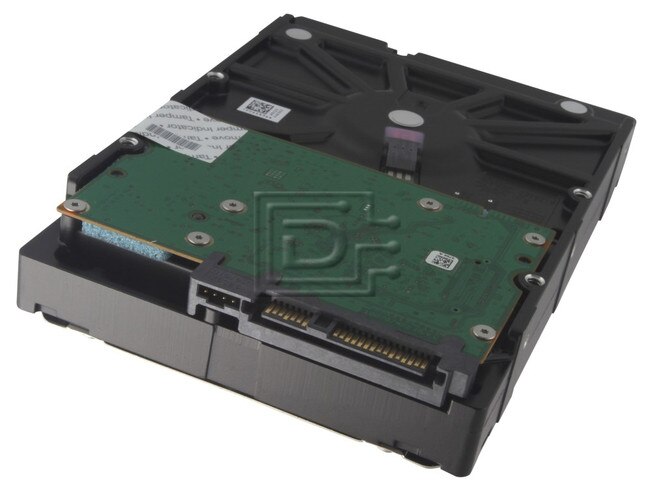

Seagate Constellation ES.3 ST3000NM0023 3TB / 3000GB 7.2K 3.5" SAS Hard Drive - Brand New
Alt MPN: 9ZM278-004
This Constellation ES.3 SAS drive offers the world’s largest capacities in a 3.5-inch form factor. Build cost-effective maximum capacity storage solutions with enterprise-class, 7200-RPM drives in capacities up to 4TB, with a sixth-generation SAS interface for easy integration. Among 3.5-inch form factor drives, the Constellation ES.3 features the lowest operating power in the industry-less than 10.68W on average.
Additionally, Constellation ES.3 hard drives further power reductions with enhanced PowerChoice™ technology. Purpose-built for enterprise environments, the PowerChoice feature enables the T10-compliant power management standard, allowing organizations to tailor systems for optimal energy usage resulting in up to 90% more power savings. The Constellation ES.3 provides enhanced error correction, super-parity and end-to-end SAS-based data integrity for accurate data storage each and every time. With its robust 7200-RPM performance, ramp load technology and a humidity sensor for optimum performance, it’s the perfect solution for maximizing your enterprise system availability. Powered by our multi-drive firmware and enhanced rotational vibration tolerance, the Constellation ES.3 can help to ensure consistent and reliable performance. In addition, protect data where it lives-on the drive- with our Self-Encrypting Drive option with FIPS 140-2 and Seagate Instant Secure Erase.
|Interface||SAS 6 Gb/s|
|Rotational Speed||7,200 RPM (nominal)|
|Transfer Rate, Max Ext (MB/s)||600 MB/s|
|Sustained Data Rate OD||175MB/s|
|Average Latency (ms)||4.16|
|Nonrecoverable Read Errors per Bits Read||1 in 1015|
|Annualized Failure Rate (AFR)||0.63%|
|Operating Shock (Read)||70/40 (2 ms)|
|Non-operating Shock||300G (2 ms)|
|Acoustics (belssound power)|
|Seek Mode 0||3.0|
|Operating||41° F to 131° F|
|Non-operating||-40° F to 158° F|
|Operating||5° C to 60° C|
|Non-operating||-40° C to 70° C|
Click here to view the manufacturer's item description/brochure
Alternate MPNs: 9ZM278-004
Weight: 1.8 lb
Warranty: 3 Year Manufacturer
The product is brand new.
3 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
