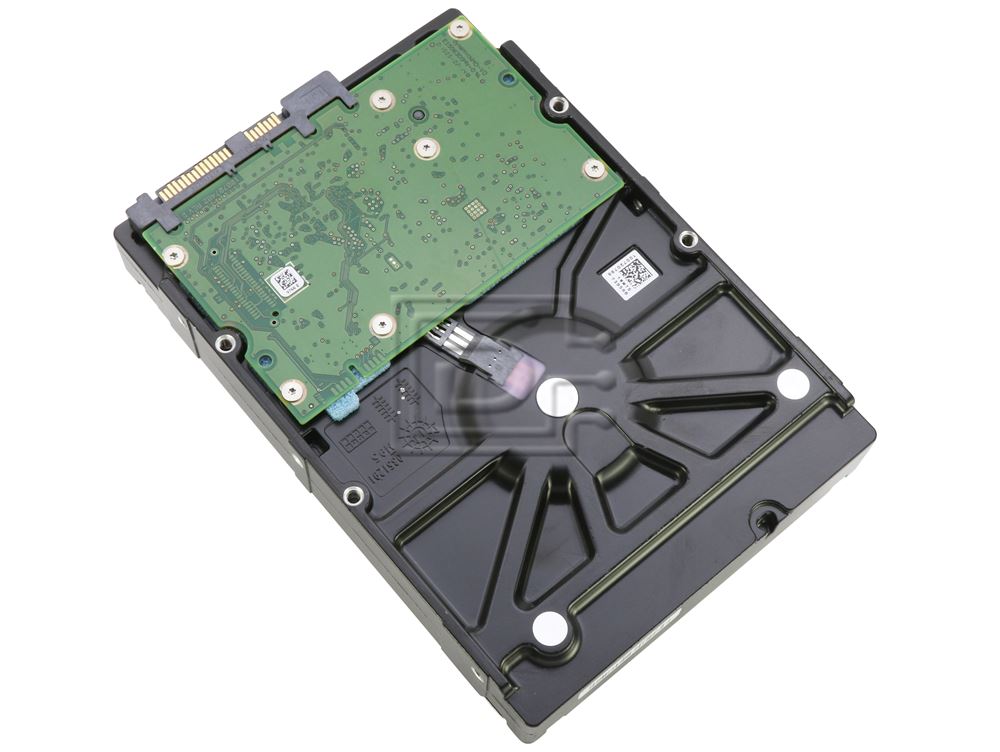

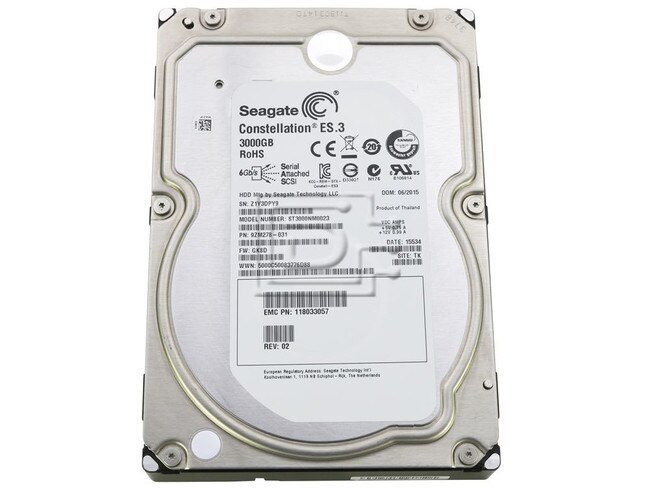

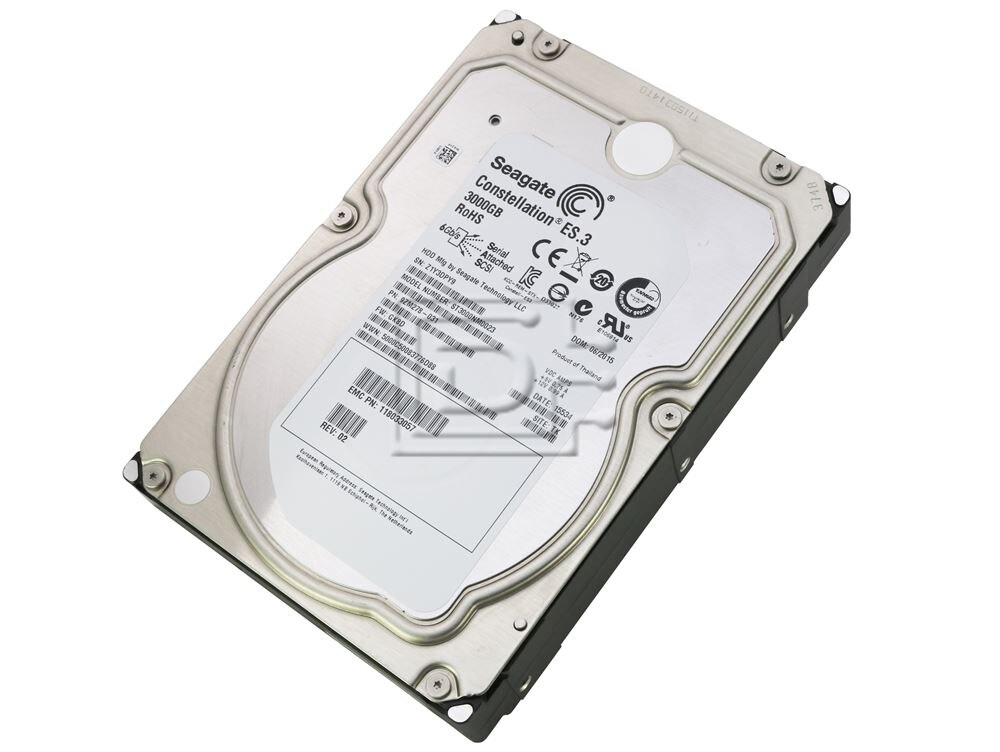

Seagate ST3000NM0023 3TB SAS Hard Drive

Seagate Part #/MPN: ST3000NM0023

DiscTech Item #: SGT-ST3000NM0023-RF-OE-GEN


$37.99
$37.99

Enterprise Grade

Capacity: 3TB

Speed: 7,200RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 182

Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps

On-Board Cache: 128MB

Seagate Constellation ES.3 ST3000NM0023 3TB 3.5 inches 6Gbps 7.2K Enterprise SAS Hard Drive - Refurbished

Seagate Constellation ES.3 ST3000NM0023 3TB / 3000GB 3.5" 6.0 Gbps 7200RPM Enterprise Serial Attached SCSI Hard Disk Drive - Refurbished

This Constellation ES.3 SAS drive offers the world’s largest capacities in a 3.5-inch form factor. Build cost-effective maximum capacity storage solutions with enterprise-class, 7200-RPM drives in capacities up to 4TB, with a sixth-generation SAS interface for easy integration. Among 3.5-inch form factor drives, the Constellation ES.3 features the lowest operating power in the industry-less than 10.68W on average.

Additionally, Constellation ES.3 hard drives further power reductions with enhanced PowerChoice™ technology. Purpose-built for enterprise environments, the PowerChoice feature enables the T10-compliant power management standard, allowing organizations to tailor systems for optimal energy usage resulting in up to 90% more power savings. The Constellation ES.3 provides enhanced error correction, super-parity and end-to-end SAS-based data integrity for accurate data storage each and every time. With its robust 7200-RPM performance, ramp load technology and a humidity sensor for optimum performance, it’s the perfect solution for maximizing your enterprise system availability. Powered by our multi-drive firmware and enhanced rotational vibration tolerance, the Constellation ES.3 can help to ensure consistent and reliable performance. In addition, protect data where it lives-on the drive- with our Self-Encrypting Drive option with FIPS 140-2 and Seagate Instant Secure Erase.


Compatibility: This drive is compatible with any server that accepts 3.5inx1.0in SAS Drive.



Product Specifications
Capacity3TB / 3000GB
InterfaceSAS 6 Gb/s
Performance Specifications
Rotational Speed7,200 RPM (nominal)
Cache128 MB
Transfer Rate, Max Ext (MB/s)600 MB/s
Sustained Data Rate OD175MB/s
Average Latency (ms)4.16
Reliability/Data Integrity
Nonrecoverable Read Errors per Bits Read1 in 1015
Annualized Failure Rate (AFR)0.63%
Physical Dimensions
English
Height1.028 Inches
Length5.787 Inches
Width4.00 Inches
Weight1.444 Lbs
Metric
Height26.1 mm
Depth147 mm
Width101.6 mm
Weight0.635 kg
Environmental Specifications
Shock
Operating Shock (Read)70/40 (2 ms)
Non-operating Shock300G (2 ms)
Acoustics (belssound power)
Idle Mode2.8
Seek Mode 03.0
Temperature (English)
Operating41° F to 131° F
Non-operating-40° F to 158° F
Temperature (Metric)
Operating5° C to 60° C
Non-operating-40° C to 70° C
Electrical Specifications
Current Requirements
Power Dissipation:
Read/Write11.27 Watts
Idle6.73 Watts




Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 1.8 lb

Warranty: 1 Year DiscTech

Refurbished

Condition Levels Explained

These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
