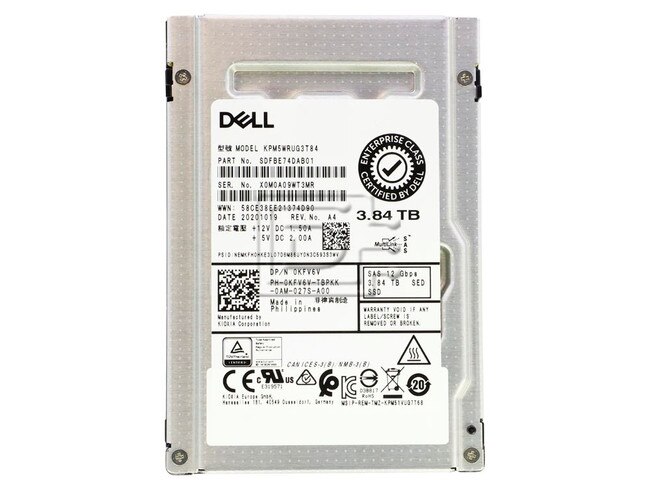

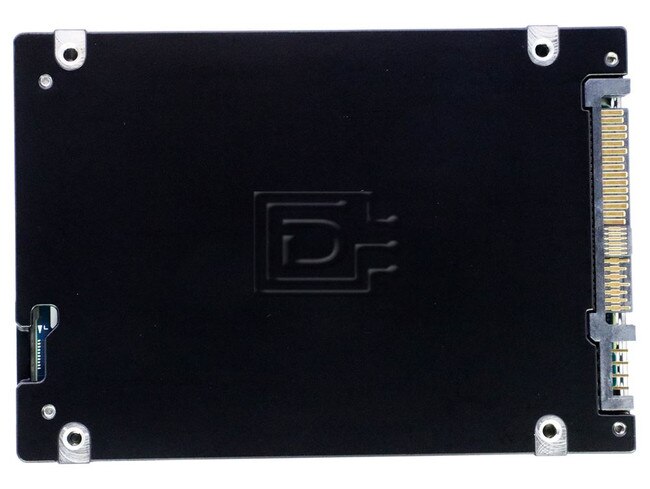

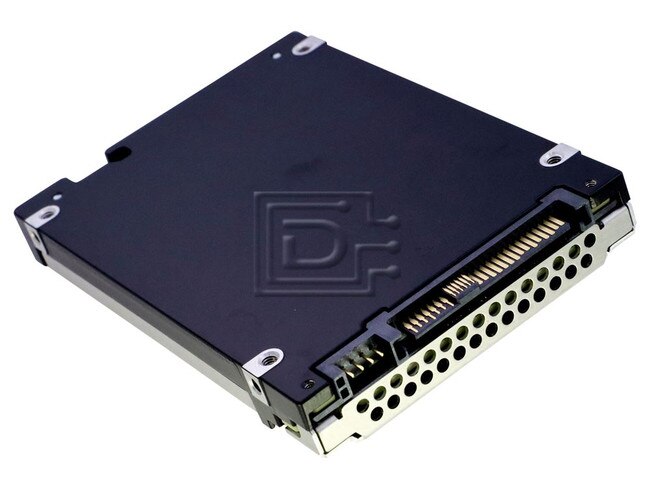

Dell KFV6V / KIOXIA Toshiba KPM5WRUG3T84 3.84TB 2.5inch 12Gbps Read Intensive TLC SAS SED / FIPS SSD
| Capacity: | 3.84TB |
| Speed: | Solid State |
| Interface Types: | SAS |
| Form Factor: | 2.5" SFF Server Drive |
| SSD Endurance DWPD: | Enterprise Read Intensive / RI |
| Electrical Interface: | SAS-3 12Gbps |
Description
Dell KFV6V / KIOXIA Toshiba KPM5WRUG3T84 3.84TB 2.5inch 12Gbps Read Intensive TLC SAS SED / FIPS SSD - New Pull
Dell KFV6V / KIOXIA Toshiba KPM5WRUG3T84 3.84TB 2.5inch 12Gbps Read Intensive TLC SAS SED / FIPS SSD - New Pull
PM5-R Series - Enterprise Read Intensive SSD
PM5-R 12.0 Gbit/s enterprise SAS SSD is optimized for read intensive applications, including web services, data warehousing, media streaming and video on demand. The Series provides high levels of performance, reliability and endurance, and is designed to minimize total cost of ownership.
Featuring KIOXIA Corporation’s 64-layer BiCS FLASH™ 3D memory, this 5th generation enterprise SAS SSD offers 1 DWPD (Drive Write Per Day) with capacities up to 15.36 TB.
Key Features
- 12.0 Gbit/s SAS interface with single/dual port and MultiLink SAS™ support
- Capacities from 480 GB to 15.36 TB
- T10 Multi-Stream Write support
- Up to 385 K random read IOPS (4 KiB) in dual port mode
- 2.5 inch form factor, 15 mm Z-height
- 1 DWPD with 100 % Random Write Workload
- Power loss protection and end-to-end data protection, including T10 DIF
- Pin-3 power disable support
- Sanitize Instant Erase (SIE) option
- Self-Encrypting (SED) option
- Self-Encrypting (SED), FIPS validated option
Key Applications
- Media streaming
- Data warehousing
- Web servers
- Video on demand (VOD)
DPN: KFV6V / 0KFV6V
Compatibility:
This drive is compatible with any server that accepts 2.5in x 15mm (SFF) large capacity (>2TB) SAS drives.
Specifications
| Enterprise Read Intensive SSD | |
|---|---|
| Model Number | KPM5WRUG3T84 |
| Basic Specifications | |
| Interface | SAS-3.0 |
| Interface Speed | 12.0 Gbit/s , 6.0 Gbit/s , 3.0 Gbit/s , 1.5 Gbit/s |
| Memory Type | BiCS FLASH TLC |
| Formatted Capacity | 3.84TB |
| Sustained 64KiB Sequential Read | 2,100 MiB/s |
| Sustained 64KiB Sequential Write | 2,100 MiB/s |
| Sustained 4KiB Random Read | 370,000 IOPS |
| Sustained 4KiB Random Write | 55,000 IOPS |
| Reliability | |
| MTTF | 2,500,000 hours |
| DWPD | 1 |
| Power Requirements | |
| Supply Voltage | 5 V ±7 % , 12 V ±7 % |
| Power Consumption (Operating) | 3.2W Typ. |
| Dimensions | |
| Height | 15.0 mm +0 , -0.5 mm |
| Width | 69.85 ±0.25 mm |
| Length | 100.45 mm Max. |
| Weight | 130 g Max. |
| Enviromental | |
| Temperature (Operating) | 0 to 55 °C |
| Relative Humidity ( Operating ) | 5 to 95 % R.H. |
| Vibration (Operating) | 21.27 m/s {2.17 Grms} (100 to 800 Hz) |
| Shock (Operating) | 9.8 km/s {1,000 G} (0.5 msec) |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: KFV6V 0KFV6V
Weight: 0.7 lb
Warranty: 1 Year DiscTech
Condition
New Pull
Warranty
1 Year DiscTech Warranty
