Dell Part #/MPN: R740
DiscTech Item #: DEL-PER740LH32-4114-BN-2M
$2,995.00
- Brand New
- Warranty:2 Month DiscTech
- Low Stock:Call for ETA
Interface Types: SAS, SATA, USB 2.0, USB 3.0 3.1 3.2, Ethernet RJ45, PCIe, VGA, Serial RS-232 DB9, SFP
Form Factor: 3.5" LFF Hard Drive
Electrical Interface: SAS-3 12Gbps
Bays/Ports/Slots: 8
U Height: 2U
Compatible Systems: Dell 12th Gen. R720/T620

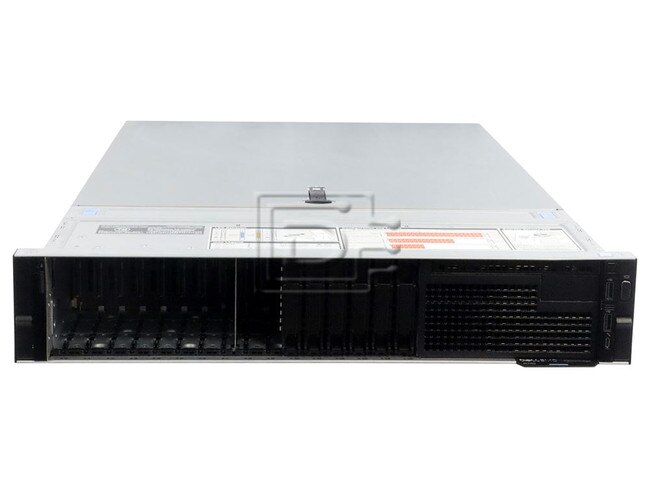

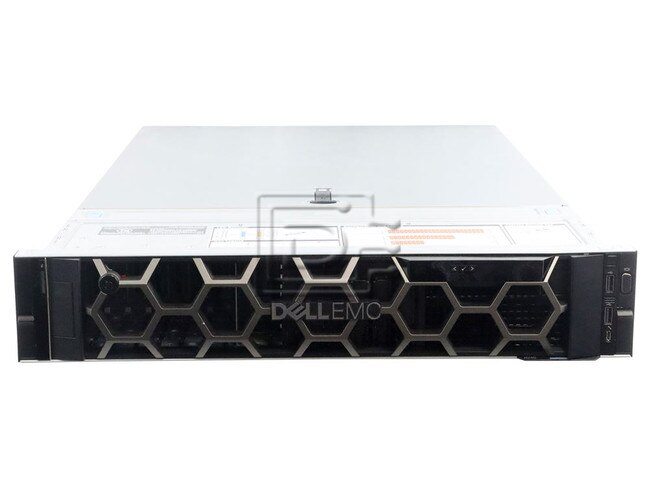

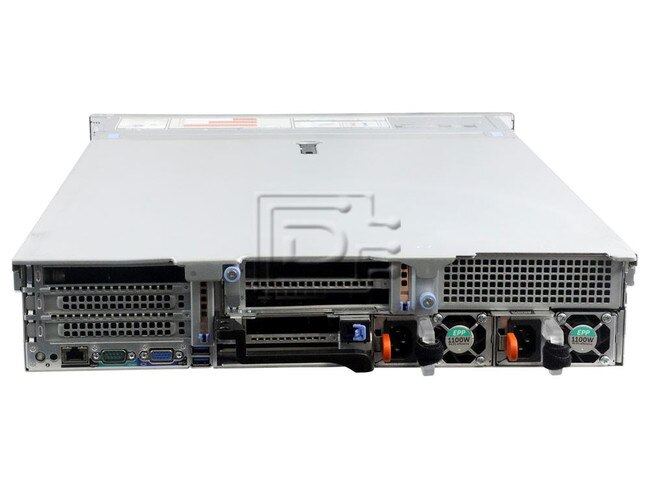

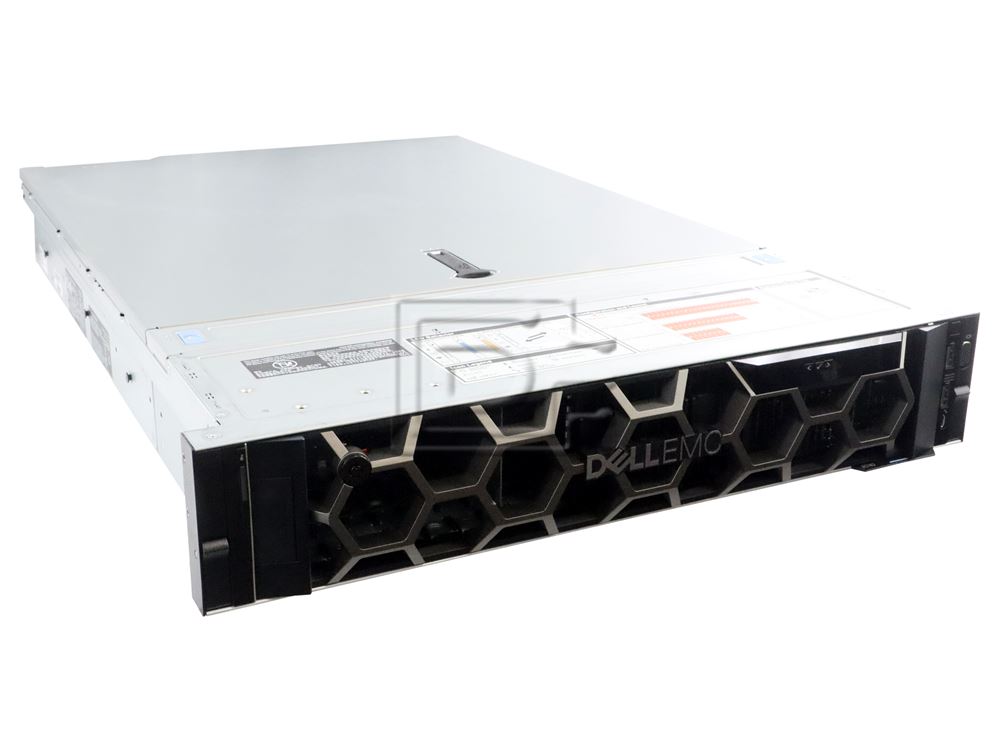

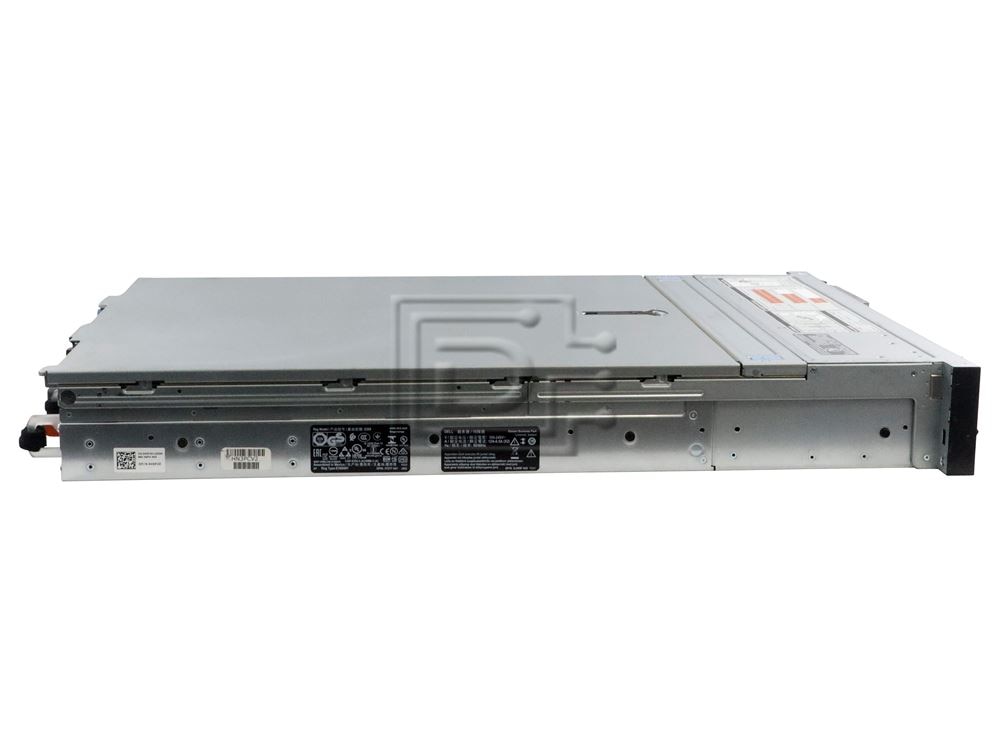

Dell PowerEdge R740, Intel Xeon Silver 4114 10C/20T 2.2GHz, 32GB, 8x 3.5" Bays, 750W Hot Swap, S140 2U Rackmount Configurable Server - Brand New
Fully configurable - Optional Dual CPUs, up to 3TB RAM, redundant power supplies etc. - Please contact Sales for more details available configurations.
POWEREDGE R740:Optimized for workload acceleration
The Dell PowerEdge R740 is Dell's 14th generation two-socket, 2U server. The PowerEdge R740 was designed to accelerate application performance leveraging accelerator cards and storage scalability. The 2-socket, 2U platform has the optimum balance of resources to power the most demanding environments
With up to 16 2.5” drives or 8 3.5” drives the R740 provides the versatility to adapt to virtually any application and provides the perfect platform for VDI deployments.
• Scale your VDI deployments with 3 double-width GPUs, supporting up to 50% more users when compared to R730.
• Free up storage space using internal M.2 SSDs optimized for boot.
• Scale compute resources with Intel® Xeon® Scalable delivering a 27% increase in processing cores and 50% increase in bandwidth over previous generation of Xeon processors.
Automate systems management with OpenManage
The Dell EMC OpenManage™ portfolio helps deliver peak efficiency for PowerEdge servers, delivering intelligent, automated management of routine tasks. Combined with unique agent-free management capabilities,
the R740 is simply managed, freeing up time for high profile projects.
• Simplify management with the New OpenManage Enterprise™ console, with customized reporting and automatic discovery.
• Take advantage of QuickSync 2 capabilities and gain access to your servers easily through your phone or tablet.
Rely on PowerEdge with built-in security
Every PowerEdge server is designed as part of a cyber resilient architecture, integrating security into the full server lifecycle.
The R740 leverages new security features built-into every new PowerEdge server strengthening protection so you can reliably and securely deliver accurate data to your customers no matter where they are.
By considering each aspect of system security, from design to retirement, Dell EMC ensures trust and delivers a worry-free, secure infrastructure without compromise.
• Rely on a secure component supply chain to ensure protection from factory to the data center.
• Maintain data safety with cryptographically signed firmware packages and Secure Boot.
• Prevent unauthorized or malicious change with Server Lockdown.
• Wipe all data from storage media including hard drives, SSDs and system memory quickly and securely with System Erase.
- 1x Intel Xeon Silver 2.2.0GHz 10Core CPU (2 CPU Max)
- 32GB RDIMM 2666MT/s RAM
- S140 Software RAID Controller Integrated
- 1x Power Supply 750W (Dual redundant supported)
- 4x 1Gb RJ45 Ethernet
- No hard drives or secondary network cards.
- iDrac9
- 3.5" Chassis 8 bays
- No OS
- Keyboard or Mouse Optional
- Bezel Optional
Fully configurable - Optional Dual CPUs, up to 3TB RAM, redundant power supplies etc. - Please contact Sales for more details available configurations.
Dell PowerEdge R740, Intel Xeon Silver 4114 10C/20T 2.2GHz, 32GB, 8x 3.5" Bays, 750W Hot Swap, S140 2U Rackmount Configurable Server - Brand New
POWEREDGE R740:Optimized for workload acceleration
The Dell PowerEdge R740 is Dell's 14th generation two-socket, 2U server. The PowerEdge R740 was designed to accelerate application performance leveraging accelerator cards and storage scalability. The 2-socket, 2U platform has the optimum balance of resources to power the most demanding environments
With up to 16 2.5” drives or 8 3.5” drives the R740 provides the versatility to adapt to virtually any application and provides the perfect platform for VDI deployments.
• Scale your VDI deployments with 3 double-width GPUs, supporting up to 50% more users when compared to R730.
• Free up storage space using internal M.2 SSDs optimized for boot.
• Scale compute resources with Intel® Xeon® Scalable delivering a 27% increase in processing cores and 50% increase in bandwidth over previous generation of Xeon processors.
Automate systems management with OpenManage
The Dell EMC OpenManage™ portfolio helps deliver peak efficiency for PowerEdge servers, delivering intelligent, automated management of routine tasks. Combined with unique agent-free management capabilities,
the R740 is simply managed, freeing up time for high profile projects.
• Simplify management with the New OpenManage Enterprise™ console, with customized reporting and automatic discovery.
• Take advantage of QuickSync 2 capabilities and gain access to your servers easily through your phone or tablet.
Rely on PowerEdge with built-in security
Every PowerEdge server is designed as part of a cyber resilient architecture, integrating security into the full server lifecycle.
The R740 leverages new security features built-into every new PowerEdge server strengthening protection so you can reliably and securely deliver accurate data to your customers no matter where they are.
By considering each aspect of system security, from design to retirement, Dell EMC ensures trust and delivers a worry-free, secure infrastructure without compromise.
• Rely on a secure component supply chain to ensure protection from factory to the data center.
• Maintain data safety with cryptographically signed firmware packages and Secure Boot.
• Prevent unauthorized or malicious change with Server Lockdown.
• Wipe all data from storage media including hard drives, SSDs and system memory quickly and securely with System Erase.
UPGRADE OPTIONS | |
Processor | 2nd Xeon Silver 4114 10C Processor |
Memory / RAM | DDR4 RDIMM Options |
Please Call for Assistance with Hard Drives / SSDs | 3.5" Enterprise Dell drives & SSDs |
Hardware Raid Controller | H330 PCIe Internal RAID Non Cache Controller |
Hardware Raid Controller w/ 2GB BBU Cache | H730p PCIe 2GB Internal Caching RAID Controller |
2nd Redundant Hot Swap Power Supply | 2nd 750W Hot Swap PSU |
Upgrade Network 4x 10GbE SFP+ | Intel X710 Quad Port 10GbE SFP+ Mezzanine Adapter |
Rail Kit | Sliding Rapid ReadyRails |
Compatibility:
- Microsoft® Windows Server® with Hyper-V
- Microsoft® Windows Server® 2019
- Microsoft® Windows Server® 2016
- Microsoft® Windows Server® 2012
- SUSE® Linux Enterprise Server
- Red Hat® Enterprise Linux®
- Canonical® Ubuntu® LTS
- Citrix® XenServer®
Dell PowerEdge R740 Specs:
- Brand: Dell
- Product Line: PowerEdge
- Product Type: Rackmount Server
- Form Factor: 2U Rackmount
- Processors: Up to 2x Intel Xeon Scalable Processor
- Memory: Up to 3TB DDR4 RDIMM
- Hard Drives: Up to 8x 3.5" SATA or SAS drives
- Maximum Internal Storage: N/A
- I/O Slots: Riser options with up to 8 PCIe Gen3 slots, max of 4 x 16 slots
- Remote Management: iDRAC9 Enterprise
- Power Supply Unit: Hotswap PowerSupply up to 1100Watts
What you will get:
- Server: Dell R740 Build To Order
- CPU: Intel Xeon Silver 4114 2.2GHz CPU (1-CPU / 2-max)
- Memory: 32GB
- Hard Drive: None Included (Please contact us for Drives)
- Caddy/Tray: None Included
- Controller: S140 Integrated Software RAID SATA Controller
- LAN: Broadcom 5720 4 X 1GBE RJ45, rNDC
- Rail Kit: None Included
- Bezel: None Included
- Remote Management: iDRAC9
- Power Supply Unit: 750Watt PSU (x1 included, 2-max)
Click here to view the manufacturer's item description/brochure
Weight: 70 lb
Warranty: 2 Month DiscTech
Brand New
2 Month DiscTech Warranty
