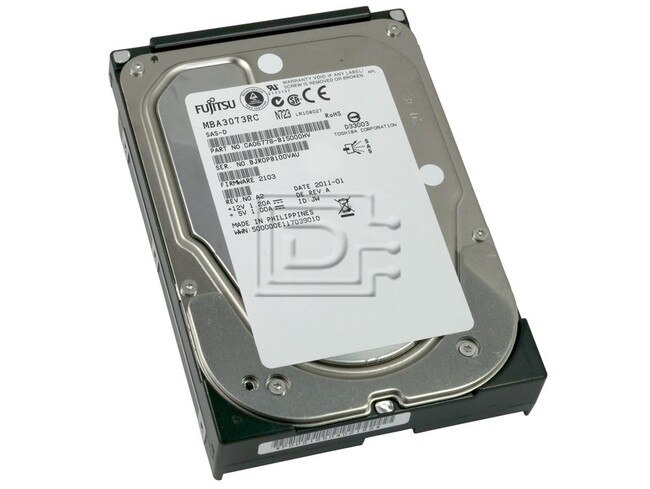

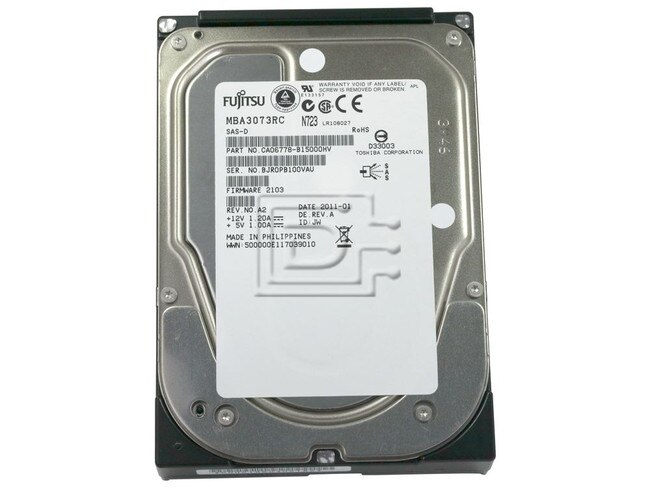

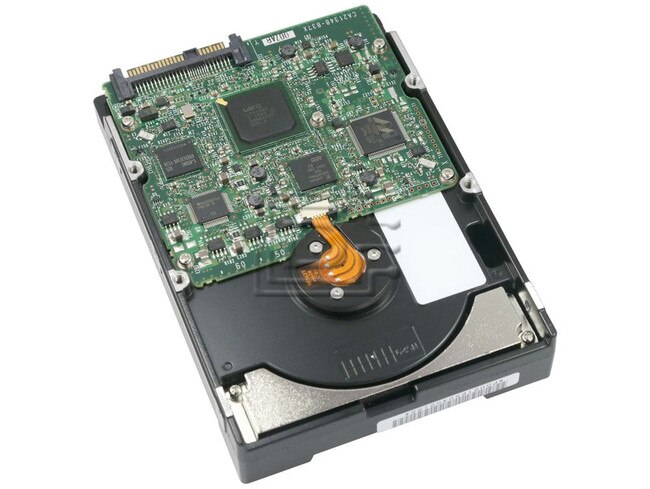

Fujitsu MBA3073RC SAS Hard Disk

FUJITSU Part #/MPN: MBA3073RC

DiscTech Item #: FUJ-MBA3073RC-BN-5Y


$172.00
  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$172.00

Enterprise Grade

Capacity: 73GB

Speed: 15,000RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 179

Average Seek Time: 3.4 / 3.9

Electrical Interface: SAS Serial Attached SCSI - 3.0Gbps

On-Board Cache: 16MB

Fujitsu MBA 73GB 15K 3Gbps Serial Attached SCSI Hard Drive MBA3073RC - Brand New

Fujitsu MBA 73GB 15K 3Gbps Serial Attached SCSI Hard Drive MBA3073RC - Brand New OEM

DPN: 0RW548 / RW548

Fujitsu p/n: CA06778-B100


Compatibility:

Dell PowerEdge 1950, 1955, 2900, 2950, 6950

Compaq/HP Proliant:
BL20p G4, BL460c, BL465c, BL480c, DL360 G4p, DL360 G5, DL380 G4, DL380 G5, DL385, DL385 G2, DL580 G3, DL580 G4, DL585, DL585 G2, ML350 G5, ML370 G4, ML370 G5, ML570 G3, ML570 G4

FUNCTIONAL SPECIFICATIONS
Formatted storage capacity73.5 GB
Seek time (track to track)Read 0.2 / Write 0.4 ms. typ.
Seek time (average)3.4 / 3.9 ms. typ. (read/write)
Seek time (full track)8.0/9.0 ms. typ. (read/write)
Average latency time2.00 ms.
Rotational speed15,005 RPM
InterfaceSAS (3Gbps)
Data Buffer Size16 MB
Recording code60/62 MEEPRML
Head positioning methodROTARY VCM
Spindle start time20 seconds typical
Spindle stop time20 seconds typical
PHYSICAL SPECIFICATIONS
Power requirement Idle (ready)12.8 W typ.
Form Factor3.5-inch x 1-inch high
Mounting screws#6 x 32UNC
Height25.4 mm
Width101.6 mm
Depth146.0 mm
Weight0.75 kg
Ambient temperature (operating)5 to 55 degrees C
Ambient temperature (non-operating)-40 to 70 degrees C
Maximum DE surface temperature (operating)60 max deg. C
Gradient20 degrees C per hour
Relative humidity (operating)5 to 95 % RH (non-condensing)
Relative humidity (non-operating)5 to 95 % RH (non-condensing)
Maximum wet bulb29 degrees C (non-condensing)
Vibration (operating)0.6mm (5 to 20 Hz)/ 1.0G (20 to 300 Hz)
Vibration (non-operating)3.1mm (5 to 20 Hz)/ 5.0G (20 to 300Hz)
Shock (operating)65G Max (2ms)
Shock (non-operating)250G Max (2ms)
Altitude (operating)3,000 metres
Altitude (non-operating)12,000 metres
Acoustic noise (at 1 metre idle)>/=3.6 (ready) bels
RELIABILITY
MTBF (Mean Time Between Failures)1,400,000 power on hours
Component life (years)
Design life used to calculate MTBF. NOT Warranty
5 years
Unrecoverable errors1 per 10^15 bits read
Seek errors10 per 10^8 seeks

Click here to view the manufacturer's item description/brochure

Alternate MPNs: CA06778-B100

Weight: 1.8 lb

Warranty: 5 Year Manufacturer

Brand New

Condition Levels Explained

The product is brand new.

5 Year Manufacturer Warranty

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
