FUJITSU Part #/MPN: MBB2147RC
DiscTech Item #: FUJ-MBB2147RC-RF-OE-DEL
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
Enterprise Grade
Capacity: 146GB
Speed: 10,000RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Average Seek Time: 4 / 4.5
Electrical Interface: SAS-1 Serial Attached SCSI - 3.0Gbps
On-Board Cache: 16MB
Compatible Systems: Dell 10th Gen. 2950 / 6950

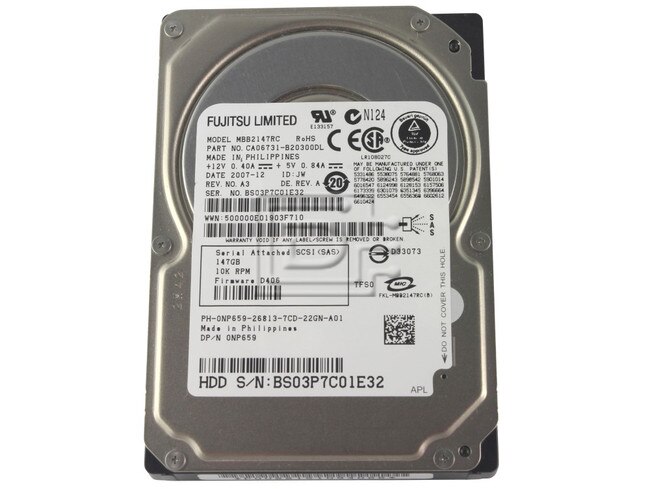

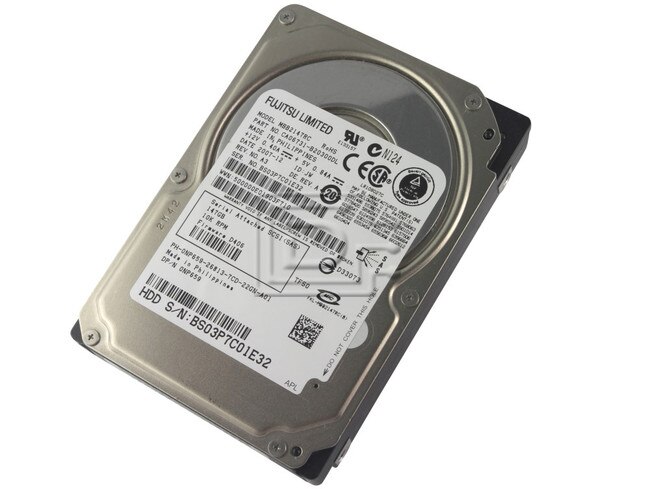

Fujitsu MBB 146GB 10K 3Gbps SFF Serial Attached SCSI Hard Drive MBB2147RC - Refurbished OEM
Fujitsu's latest generation 10K RPM 2.5 inch (SFF) Enterprise Hard Disk Drives (MBB Series) continue to represent a leading edge design with best of class performance and reliability. With 73 and 147GB capacity points this technology becomes even more useable and advantageous in applications previously dominated by 3.5 inch.
Offering a Serial Attached SCSI (SAS) interface and a 16MB buffer, performance is certainly not compromised by the physical size (70% smaller than it's bigger brother).
With design advantages ranging from lower power consumption (up to 50% reduction over conventional 3.5"), a smaller form factor that reduces system cooling requirements, low acoustics, redundant data paths and an interface design featuring scalability, hot plugability, simplified cabling (less conductors,less space,more air flow)and a common infrastructure which supports SATA . Leveraged from high maturity technology from it's proven 3.5-inch big brother, the MBB continues to lead the way in HDD design. Ideal for high-end, missioncritical applications residing on database servers, storage arrays, and NAS and SAN systems.
DPN: NP659
Compatibility:
Dell PowerEdge 1950, 1955, 2900, 2950, 6950
Compaq/HP Proliant:
BL20p G4, BL460c, BL465c, BL480c, DL360 G4p, DL360 G5, DL380 G4, DL380 G5, DL385, DL385 G2, DL580 G3, DL580 G4, DL585, DL585 G2, ML350 G5, ML370 G4, ML370 G5, ML570 G3, ML570 G4
FUNCTIONAL SPECIFICATIONS | |
Formatted storage capacity | 147.0 GB |
Seek time (track to track) | Read 0.2 / Write 0.4 ms. typ. |
Seek time (average) | 4.0/4.5 ms. typ. (read/write) |
Seek time (full track) | 8.0/9.0 ms. typ. (read/write) |
Average latency time | 2.99 ms. |
Rotational speed | 10,025 RPM |
Interface | SAS (3Gbps) |
Data Buffer Size | 16 MB |
Recording code | 60/62 MEEPRML |
Head positioning method | ROTARY VCM |
Spindle start time | 15 seconds typical |
Spindle stop time | 15 seconds typical |
PHYSICAL SPECIFICATIONS | |
Power requirement Idle (ready) | 4.7 W typ. |
Form Factor | 2.5-inch x 15mm high |
Mounting screws | #4 x M3 |
Height | 15.0 mm |
Width | 69.85 mm |
Depth | 100.45 mm |
Weight | 0.22 kg |
Ambient temperature (operating) | 5 to 55 degrees C |
Ambient temperature (non-operating) | -40 to 70 degrees C |
Maximum DE surface temperature (operating) | 55 max deg. C |
Gradient | 15 degrees C per hour |
Relative humidity (operating) | 5 to 95 % RH (non-condensing) |
Relative humidity (non-operating) | 5 to 95 % RH (non-condensing) |
Maximum wet bulb | 29 degrees C (non-condensing) |
Vibration (operating) | 0.6mm (5 to 20 Hz)/ 1.0G (20 to 300 Hz) |
Vibration (non-operating) | 3.1mm (5 to 20 Hz)/ 5.0G (20 to 300Hz) |
Shock (operating) | 100G Max (1ms) |
Shock (non-operating) | 400G Max (1ms) |
Altitude (operating) | 3,000 metres |
Altitude (non-operating) | 12,000 metres |
Acoustic noise (at 1 metre idle) | >/=2.9 (ready) bels |
RELIABILITY | |
MTBF (Mean Time Between Failures) | 1,400,000 power on hours |
Component life (years) Design life used to calculate MTBF. NOT Warranty | 5 years |
Unrecoverable errors | 1 per 10^15 bits read |
Seek errors | 10 per 10^8 seeks |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: NP659
Weight: 1 lb
Warranty: 1 Year DiscTech
Refurbished
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
