FUJITSU Part #/MPN: MBD2147RC
DiscTech Item #: FUJ-MBD2147RC-BN-5Y
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:5 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 146GB
Speed: 10,000RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Average Seek Time: 3.8 / 4.3
Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps
On-Board Cache: 16MB
Compatible Systems: Dell 10th Gen. 2950 / 6950

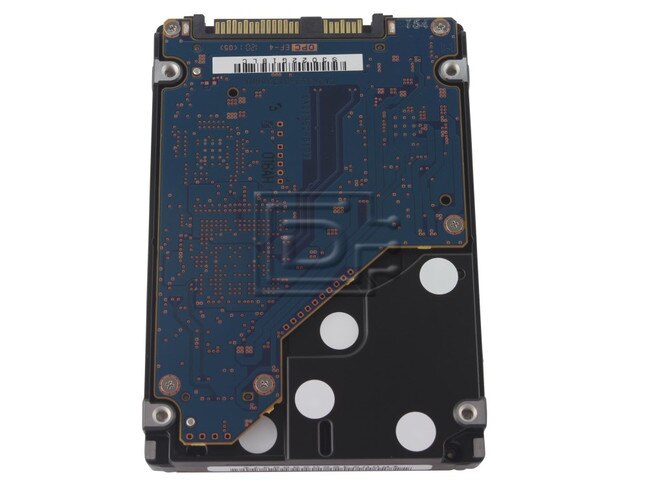

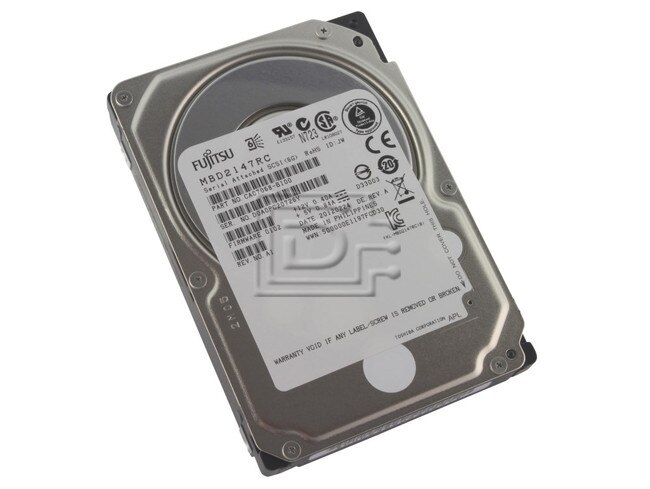

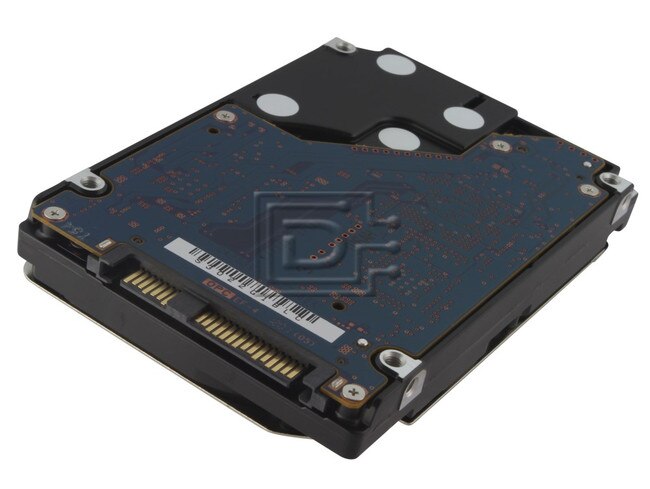

Fujitsu MBD MBD2147RC 146GB 10K 6Gbps SFF Serial Attached SCSI Hard Drive - Brand New
Utilizing the vast experience and innovative technology developed over 40 years, Fujitsu introduces a new enterprise class 2.5-inch SAS drive offering industry leading performance and environmental benefits.
The MBD2-RC series is the first enterprise hard disk drive from Fujitsu to be halogen free. The 10,000 RPM 6Gb/sec. SAS-2 interface enterprise drive doubles its capacity from previous generation models through the adoption of perpendicular magnetic recording.
The higher capacity and performance meets a wide range of enterprise applications, from midrange volume servers to disk storage arrays. In addition, the best-in-class low power values are ideal for servers and storage systems used in data centers, which require minimal energy usage and mounting space. The 6Gb/sec. SAS interface and improved areal densities enable higher data rates.
As part of the Fujitsu Green Policy Innovation program, the new series provides the best-in-class power consumption at 3.4 watts idle, achieving up to 28% reduction from previous generation models, and up to 74% reduction from current 3.5" 15K RPM offerings.
Fujitsu p/n: CA07068-B100
Compatibility:
This drive is compatible with the followinig servers (this list is not all inclusive):
Dell PowerEdge 1900, 1950, 1955, 2900, 2950, 6900, 6950 Servers and MD1120 Storage Arrays.
Compaq/HP Proliant:
BL20p G4, BL460c, BL465c, BL480c, DL360 G4p, DL360 G5, DL380 G4, DL380 G5, DL385, DL385 G2, DL580 G3, DL580 G4, DL585, DL585 G2, ML350 G5, ML370 G4, ML370 G5, ML570 G3, ML570 G4
| FUNCTIONAL SPECIFICATIONS | |
| Formatted storage capacity | 147.0 GB |
| User Data Blocks | 287,277,984 512K Blocks |
| Seek time (track to track) | Read 0.2 / Write 0.4 ms. typ. |
| Seek time (average) | 3.8/4.3 ms. typ. (read/write) |
| Seek time (full track) | 8.0/9.0 ms. typ. (read/write) |
| Average latency time | 2.99 ms. |
| Rotational speed | 10,025 RPM |
| Interface | SAS II (6Gbps) |
| Data Buffer Size | 16 MB |
| PHYSICAL SPECIFICATIONS | |
| Power requirement Idle (ready) | 3.2 W typ. |
| Form Factor | 2.5-inch x 15mm high |
| Height | 15.0 mm |
| Width | 69.85 mm |
| Depth | 100.45 mm |
| Weight | 0.22 kg |
| Ambient temperature (operating) | 5 to 55 degrees C |
| Ambient temperature (non-operating) | -40 to 70 degrees C |
| Maximum DE surface temperature (operating) | 60 max deg. C |
| Gradient | 20 degrees C per hour |
| Relative humidity (operating) | 5 to 95 % RH (non-condensing) |
| Relative humidity (non-operating) | 5 to 95 % RH (non-condensing) |
| Maximum wet bulb | 29 degrees C (non-condensing) |
| Vibration (operating) | 0.6mm (5 to 20 Hz)/ 1.0G (20 to 300 Hz) |
| Vibration (non-operating) | 3.1mm (5 to 20 Hz)/ 5.0G (20 to 300Hz) |
| Shock (operating) | 100G Max (1ms) |
| Shock (non-operating) | 400G Max (1ms) |
| Altitude (operating) | 3,048 metres |
| Altitude (non-operating) | 12,192 metres |
| Acoustic noise (at 1 metre idle) | >/=2.9 (ready) bels |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: CA07068-B100
