Hitachi UltraStar He8 0F23694 / HUH728080ALE604 / J6RTX 8TB SATA Hard Drive
- Special Order - Call for Lead TimeSpecial Order - Call for Lead Time
This item has a variable lead time for fulfilment. Please call us to discuss. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 8TB |
| Speed: | 7.2K RPM |
| Interface Types: | SATA |
| Form Factor: | 3.5" LFF Hard Drive |
| Electrical Interface: | SATA 600 - 6Gbps |
| RAM: | 128MB |
Description

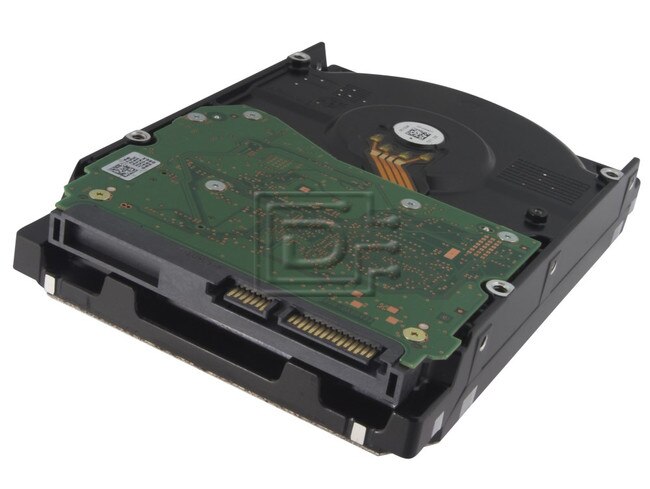

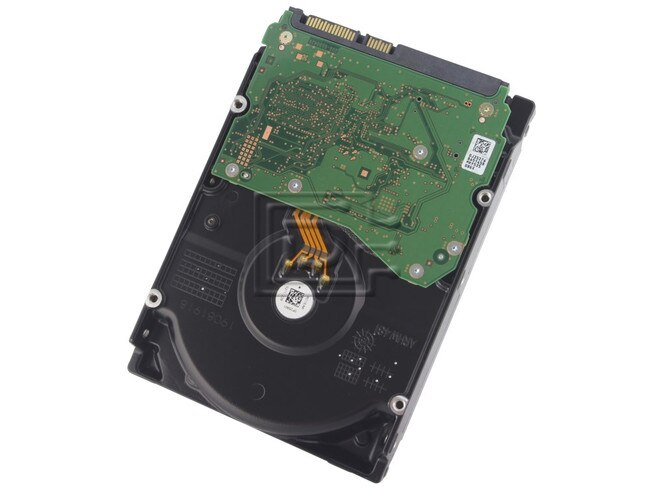

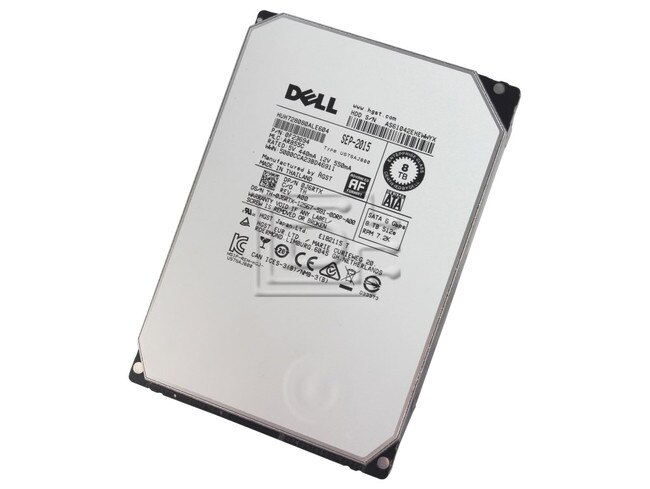

Hitachi UltraStar He8 0F23694 / HUH728080ALE604 / J6RTX 8TB 6Gbps 7.2K RPM (512e) Enterprise SATA HDD - Brand New OEM
Hitachi UltraStar He8 0F23694 8TB / 8000GB 6.0 Gb/s 7200 RPM (512e) Enterprise Serial ATA Hard Disk Drive - Brand New OEM
Dell Part Number: HUH728080ALE604, 0F23668, J6RTX, 0J6RTX
Count on the drives trusted by world's major cloud service providers and massive 24/7/365 online transaction processing (OLTP) environments. With industry-leading capacity, reliability and warranty, the Ultrastar® He8 lays the foundation for a worry-free data center. Innovative HelioSeal® technology allows HGST to put more platters in the same size enclosure; increasing storage capacity. The Ultrastar He8 also requires less power to operate and cool than air-filled drives. For quality, reliability at a low TCO, trust HGST to deliver more value to your data center.
Compatibility
This drive is compatible with any server that accepts 3.5in x 1.0in (LFF) SATA drives.
Specifications
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: HUH728080ALE604 0F23668 0J6RTX J6RTX
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Condition
The product is brand new.
Warranty
1 Year DiscTech Warranty
| Specifications | |
|---|---|
| Model # / Part # | HUH728080ALE604 / 0F23694 |
| Interface | SATA 6Gb/s |
| Capacity (GB) | 8TB |
| Max Areal Density (Gbits/sq. in.) | 664 (8TB) |
| Form Factor | 3.5-inch HDD |
| Performance | |
| Data Buffer (MB) | 128 |
| Rotational Speed (RPM) | 7200 |
| Latency Average (ms) | 4.16 |
| Interface Transfer Rate (MB/sec, max) | 600 |
| Sustained Transfer Rate (MB/sec, typ.) | 205MB/s (8TB) |
| Seek Time (read, ms, typical) | 8.5 (Read), 9.0 (Write) |
| Reliability | |
| Error Rate (non-recoverable, bits read) | 1 in 10^15 |
| MTBF (M hours) | 2.5 |
| Annual Failure Rate (AFR) | 0.35% |
| Load/Unload Cycles | 600,000 |
| Availability (hrs/day x days/wk) | 24x7 |
| Power | |
| Requirement | +5 VDC, +12 VDC |
| Operating (W, typical) | 7.4 |
| Idle (W) | 5.1 |
| Power Consump. Efficiency Index (W/GB) | 0.64W/TB / 0.00064W/GB (8TB) |
| Physical Size | |
| Z-Height (mm) | 26.1 |
| Dimensions (width x depth, mm) | 101.6 (+/-0.25) x 147 |
| Weight (g, max) | 650 |
