IBM Part #/MPN: 41Y8351
DiscTech Item #: IBM-41Y8351-BN-OE
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:1Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Enterprise Grade
Capacity: 200GB
Speed: Solid State Memory
Interface Types: SATA
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Sustained Throughput: 500/365
Average Seek Time: 50/65
Electrical Interface: SATA 600 - 6.0Gbps
SSD Type: MLC
SSD Endurance DWPD: Enterprise Mixed Use

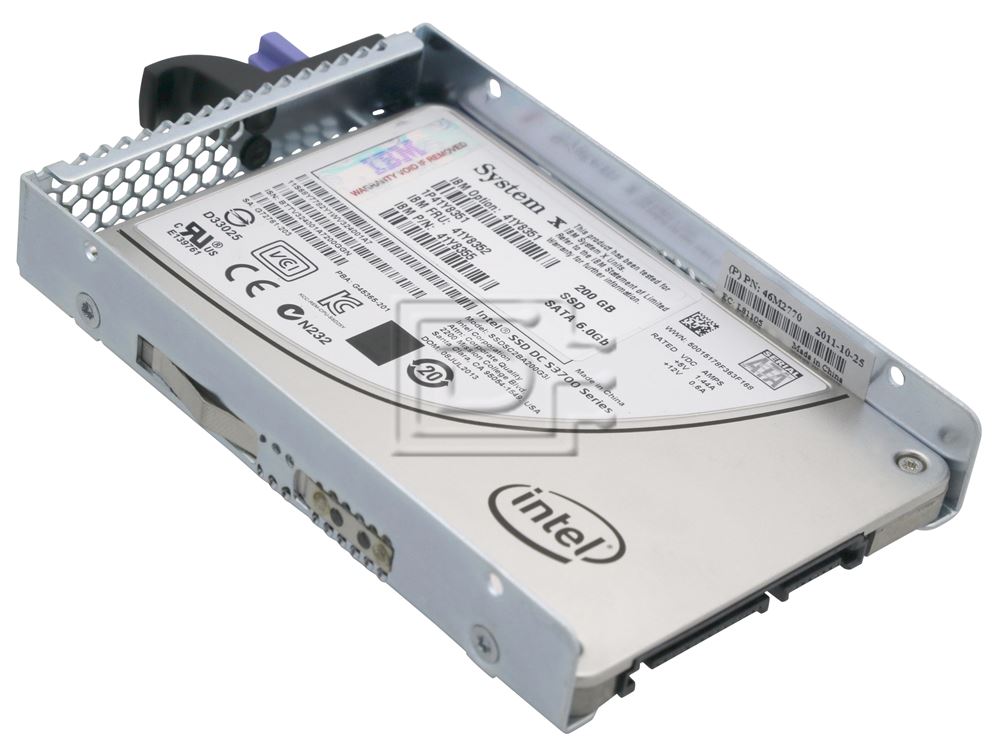

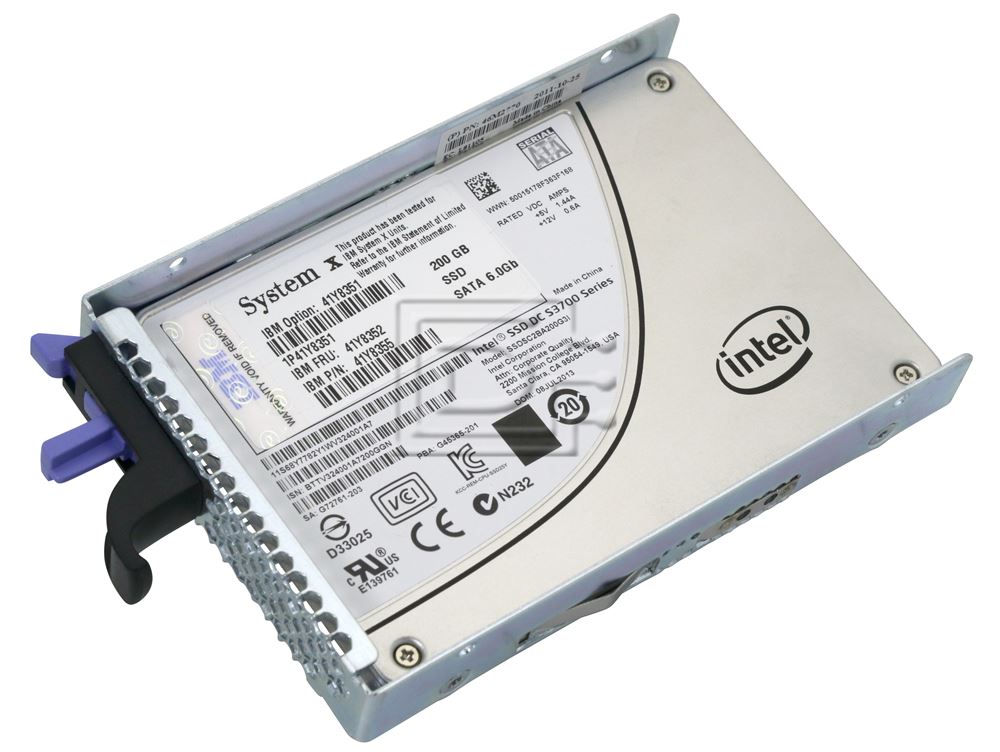

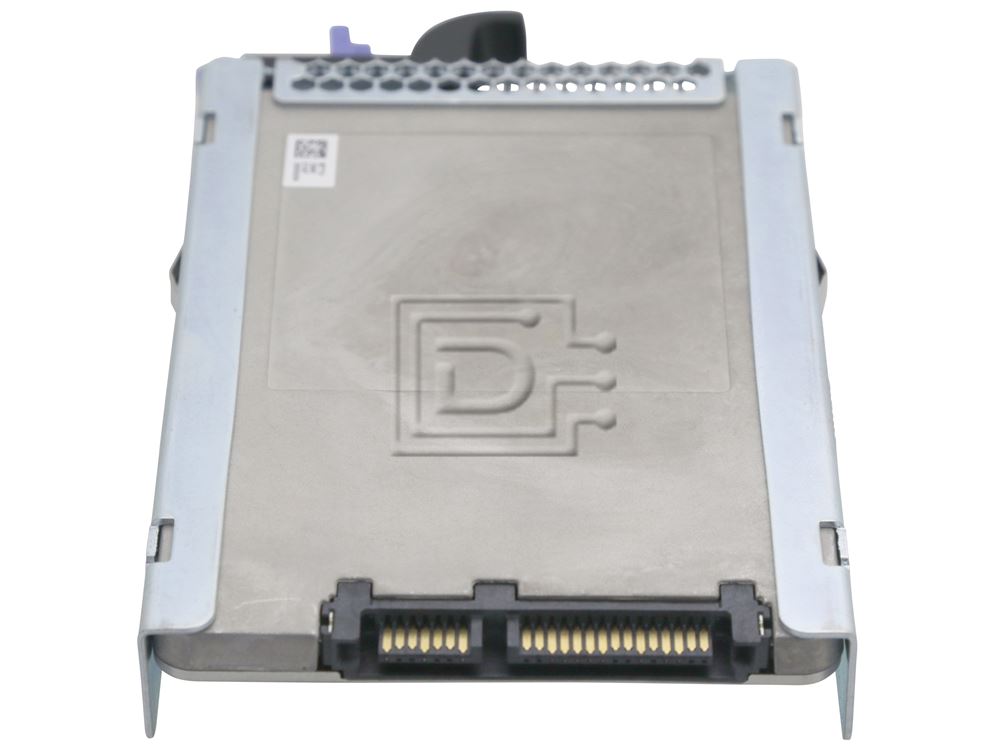

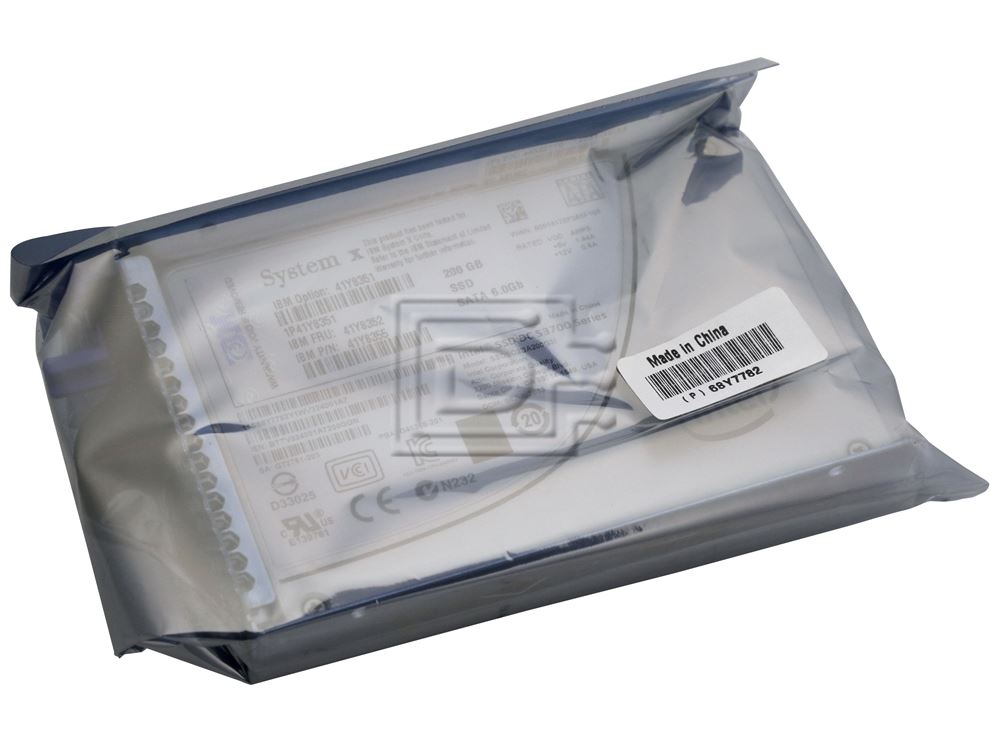

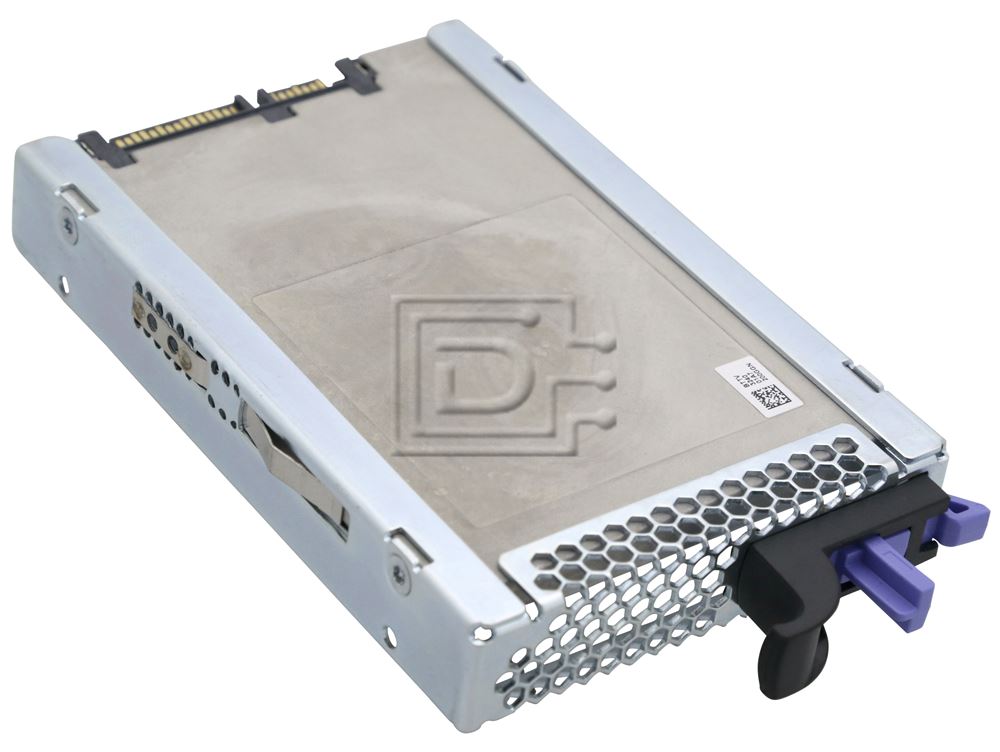

IBM / Lenovo S3700 41Y8351 / 41Y8352 200GB 2.5-Inch SFF eMLC SS Mixed Use SATA Solid State Drive kit 46M2770 for Systems x3530 M4, x3250 M4, dx360 M4 - Brand New
IBM / Lenovo S3700 41Y8351 / 41Y8352 200GB 2.5" Small Form Factor / SFF Enterprise Multi-Level Cell / eMLC Simple-Swap / SS Mixed Use 10 Drive Writes Per Day / DWPD Serial ATA / SATA Solid State Drive / SSD kit 46M2770 for Systems x3530 M4, x3250 M4, dx360 M4 - Brand New
Introduction
The S3700 SATA MLC Enterprise solid-state drives (SSDs) employ MLC NAND flash memory with High Endurance Technology and a 6 Gbps SATA interface to provide an affordable solution with industry leading performance. They are targeted at databases and other enterprise workloads that require high I/O performance in random read and write operations, including applications caching and tiering. The 1.8-inch SSDs can also be used in the eXFlash solution for maximum capacity and performance.
Did you know?
With High Endurance Technology, S3700 SATA MLC Enterprise SSDs can be fully rewritten up to ten times per day throughout their entire five-year life expectancy. These solid-state drives provide outstanding performance, endurance, reliability, and energy efficiency for both read- and write-intensive enterprise applications, such as databases, data warehouses, corporate email and collaboration, actively connected users, medical imaging, and other applications.
Rigorous testing of S3700 SATA Enterprise MLC SSDs by Lenovo through the ServerProven® program assures a high degree of confidence in storage subsystem compatibility and reliability.
The part numbers include the following items:
- One SSD without a drive tray (1.8-inch SSDs) or one SSD with a 2.5-inch hot-swap or simple-swap drive tray (2.5-inch SSDs) or one SSD with a 3.5-inch hot swap drive tray (3.5-inch SDDs)
- Technical Update Flyer
- Warranty Flyer
- Important Notices document
Features
The S3700 SATA MLC Enterprise SDDs have the following features:
- Industry standard 1.8-inch, 2.5-inch, or 3.5-inch form factors
- Support for a standard 2.5-inch or 3.5-inch drive bay (2.5-inch SSDs or 3.5-inch SSDs, respectively), eXFlash drive bay (1.8-inch SSDs), or SSD drive bay (1.8-inch SSDs) on selected System x®, iDataPlex®, BladeCenter®, and Flex System™ servers
- Cost-effective Intel 25 nm MLC NAND flash memory with High Endurance Technology (HET)
- High Endurance Technology combines NAND silicon enhancements and SSD NAND management techniques to extend the write endurance of an SSD
- SATA MLC solid-state drive with high read and write performance and consistently low latencies to fulfill client needs in the enterprise space
- High endurance, with up to 14.6 PB of total bytes written (TBW) to enable applications with intensive read/write workloads
- High reliability and enhanced ruggedness
- Energy saving, with as little as 6 W power consumption per drive
- Absence of moving parts to reduce potential failure points in the server
- S.M.A.R.T. support
- Advanced Encrypting Standard (AES) 256-bit encryption
- Full end-to-end data path protection
- Thermal throttling to extend the life of the drive
- Enhanced power loss data protection
- 41Y8352
The key difference between Enterprise SSDs and Enterprise Value SSDs is their endurance (or life expectancy). SSDs have a huge but finite number of program/erase (P/E) cycles, which affect how long they can perform write operations and thus their life expectancy. Enterprise SSDs have better endurance but a higher cost/IOPS ratio compared to Enterprise Value SSDs. SSD write endurance is typically measured by the number of program/erase cycles that the drive can incur over its lifetime, which is listed as TBW in the device specification.
Alternate part numbers:
Compatibility:
System DX360 M3 | System X3550 M5 | System x3250 M4 | System x3250 M5 |
S3700 SATA MLC Enterprise SSDs | |
---|---|
Part# | 41Y8351 |
Alt Part# | 41Y8352 |
Hot-swap drive | No |
Form factor | 2.5" |
Capacity | 200GB |
Interface | 6 Gbps SATA |
Endurance | 3.65 PB / 3650 TB TBW |
Data reliability | < 1 in 10e17 bits read |
MTBF, hours | 2,000,000 |
IOPS reads | 75,000 |
IOPS writes | 32,000 |
Sequential read rate | 500 MBps |
Sequential write rate | 365 MBps |
Read latency | 50 |
Write latency | 65 |
Shock, operating | 1000 g, 0.5 ms |
Vibration, operating | 2.17 g rms 5-700 Hz |
Vibration, non-operating | 3.13 g rms 5-800 Hz |
Typical power | 6 W |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 41Y8352
Weight: 1 lb
