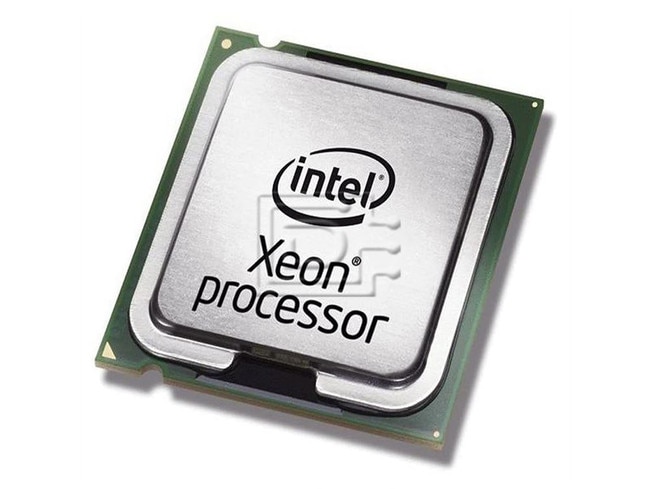

Intel E5-2418L 2 GHz Quad Core 10MB SmartCache Processor

INTEL Part #/MPN: E5-2418L

DiscTech Item #: INT-E5-2418L-BN-OE

  • Low Stock:Call for ETA
    Stock Levels

    This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.


Interface Types: Socket FCLGA1356

Encryption/SED Supported

Electrical Interface: Clock 2 GHz

On-Board Cache: 10MB

Intel Xeon E5-2418L / 00Y8103 / 00Y8135 2 GHz Quad Core 10MB SmartCache Processor - Socket FCLGA1356 - Brand New

Intel Xeon E5-2418L / 00Y8103 / 00Y8135 2 GHz 4 Core 10MB SmartCache Processor - Socket FCLGA1356 - Brand New

The Intel® Xeon® Processor E5-2400 Product Family provides DC specifications, signal integrity, differential signaling specifications, land and signal definitions, and an overview of additional processor feature interfaces.

The Intel® Xeon® processor E5-2400 product family is the next generation of 64-bit, multi-core enterprise processors built on 32-nanometer process technology. Throughout this document, the Intel® Xeon® processor E5-2400 product family may be referred to as simply the processor. Based on the low-power/high performance 2nd Generation Intel(r) Core(TM) Processor Family microarchitecture, the processor is designed for a two chip platform consisting of a processor and a Platform Controller Hub (PCH) enabling higher performance, easier validation, and improved x-y footprint. The Intel® Xeon® processor E5-2400 product family is designed for server-class platforms including those for embedded and storage applications with up to two processor sockets. The processor family features one Intel® QuickPath Interconnect (Intel® QPI) point-to-point link capable of up to 8.0 GT/s, up to 24 lanes of PCI Express 3.0 links capable of 8.0 GT/s, and 4 lanes of DMI2/PCI Express 2.0 interface with a peak transfer rate of 5.0 GT/s. The processor supports up to 46 bits of physical address space and 48-bit of virtual address space.

Included in this family of processors is an integrated memory controller (IMC) and integrated I/O (IIO) (such as PCI Express and DMI2) on a single silicon die. This single die solution is known as a monolithic processor.

Processor Feature Details

  • Each core supports two threads (Intel® Hyper-Threading Technology), up to 16 threads per socket
  • 46-bit physical addressing and 48-bit virtual addressing
  • 1 GB large page support for server applications
  • A 32-KB instruction and 32-KB data first-level cache (L1) for each core
  • A 256-KB shared instruction/data mid-level (L2) cache for each core
  • Up to 20 MB last level cache (LLC): up to 2.5 MB per core instruction/data last level cache (LLC), shared among all cores

System Memory Support

  • Intel® Xeon® processor E5-2400 product family product family supports three DDR3 channels
  • Unbuffered DDR3 and registered DDR3 DIMMs
  • LR DIMM (Load Reduced DIMM) for buffered memory solutions demanding higher capacity memory subsystems
  • Independent channel mode or lockstep mode
  • Data burst length of eight cycles for all memory organization modes
  • Memory DDR3 data transfer rates of 800, 1066, 1333, and 1600 MT/s
  • 64-bit wide channels plus 8-bits of ECC support for each channel
  • DDR3 standard I/O Voltage of 1.5 V and DDR3 Low Voltage of 1.35 V
  • 1-Gb, 2-Gb and 4-Gb DDR3 DRAM technologies supported for these devices:
    • UDIMMs x8, x16
    • RDIMMs x4, x8
    • LRDIMM x4, x8 (2-Gb and 4-Gb only)
  • Up to 8 ranks supported per memory channel, 1, 2 or 4 ranks per DIMM
  • Open with adaptive idle page close timer or closed page policy
  • Per channel memory test and initialization engine can initialize DRAM to all logical zeros with valid ECC (with or without data scrambler) or a predefined test pattern
  • Minimum memory configuration: independent channel support with 1 DIMM populated
  • Integrated dual SMBus master controllers
  • Command launch modes of 1n/2n
  • RAS Support (including and not limited to):
    • Rank Level Sparing and Device Tagging
    • Demand and Patrol Scrubbing
    • DRAM Single Device Data Correction (SDDC) for any single x4 or x8 DRAM device failure. Independent channel mode supports x4 SDDC. x8 SDDC requires lockstep mode
    • Lockstep mode where channels 2 & 3 are operated in lockstep mode
    • Data scrambling with address to ease detection of write errors to an incorrect address.
    • Error reporting via Machine Check Architecture
    • Read Retry during CRC error handling checks by iMC
    • Channel mirroring within a socket
  • Improved Thermal Throttling with dynamic Closed Loop Thermal Throttling (CLTT)
  • Memory thermal monitoring support for DIMM temperature via two memory signals, MEM_HOT_C{1/23}_N

PCI Express

  • The PCI Express port(s) are fully-compliant to the PCI Express Base Specification, Revision 3.0 (PCIe 3.0)
  • Support for PCI Express 3.0 (8.0 GT/s), 2.0 (5.0 GT/s), and 1.0 (2.5 GT/s)
  • Up to 24 lanes of PCI Express interconnect for general purpose PCI Express devices at PCIe 3.0 speeds that are configurable for up to 6 x4 independent ports
  • 4 lanes of PCI Express at PCIe 2.0 speeds when not using DMI2 port (Port 0), also can be downgraded to x2 or x1
  • Negotiating down to narrower widths is supported:
    • x16 port (Port 3) may negotiate down to x8, x4, x2, or x1.
    • x8 port (Port 1) may negotiate down to x4, x2, or x1.
    • x4 port (Port 0) may negotiate down to x2, or x1
    • When negotiating down to narrower widths, there are caveats as to how lane reversal is supported.
  • Non-Transparent Bridge (NTB) is supported by PCIe Port3a/IOU1. For more details on NTB mode operation refer to PCI Express Base Specification
    • x4 or x8 widths and at PCIe 1.0, 2.0, 3.0 speeds
    • Two usage models; NTB attached to a Root Port or NTB attached to another NTB
    • Supports three 64-bit BARs
    • Supports posted writes and non-posted memory read transactions across the NTB
    • Supports INTx, MSI and MSI-X mechanisms for interrupts on both side of NTB in upstream direction only
  • Address Translation Services (ATS) 1.0 support
  • Hierarchical PCI-compliant configuration mechanism for downstream devices.
  • Traditional PCI style traffic (asynchronous snooped, PCI ordering).
  • PCI Express extended configuration space. The first 256 bytes of configuration space aliases directly to the PCI compatibility configuration space. The remaining portion of the fixed 4-KB block of memory-mapped space above that (starting at 100h) is known as extended configuration space.
  • PCI Express Enhanced Access Mechanism. Accessing the device configuration space in a flat memory mapped fashion.
  • Automatic discovery, negotiation, and training of link out of reset.
  • Supports receiving and decoding 64 bits of address from PCI Express.
    • Memory transactions received from PCI Express that go above the top of physical address space (when Intel VT-d is enabled, the check would be against the translated HPA (Host Physical Address) address) are reported as errors by the processor.
    • Outbound access to PCI Express will always have address bits 63 to 46 cleared.
  • Re-issues Configuration cycles that have been previously completed with the Configuration Retry status.
  • Power Management Event (PME) functions.
  • Message Signaled Interrupt (MSI and MSI-X) messages
  • Degraded Mode support and Lane Reversal support
  • Static lane numbering reversal and polarity inversion support

Direct Media Interface Gen 2 (DMI2)

  • Serves as the chip-to-chip interface to the Intel® C600 Series Chipset
  • The DMI2 port supports x4 link width and only operates in a x4 mode when in DMI2
  • Operates at PCI Express 1.0 or 2.0 speeds
  • Transparent to software
  • Processor and peer-to-peer writes and reads with 64-bit address support
  • APIC and Message Signaled Interrupt (MSI) support. Will send Intel-defined “End of Interrupt” broadcast message when initiated by the processor.
  • System Management Interrupt (SMI), SCI, and SERR error indication
  • Static lane numbering reversal support
  • Supports DMI2 virtual channels VC0, VC1, VCm, and VCp

Intel® QuickPath Interconnect (Intel® QPI)

  • Compliant with Intel QuickPath Interconnect v1.1 standard packet formats
  • Implements a full width Intel QuickPath Interconnect port
  • Full width port includes 20 data lanes and 1 clock lane
  • 64 byte cache-lines
  • Home snoop based coherency
  • 3-bit Node ID
  • 46-bit physical addressing support
  • No Intel QuickPath Interconnect bifurcation support
  • Differential signaling
  • Forwarded clocking
  • Up to 8.0 GT/s data rate (up to 16 GB/s direction peak bandwidth per port)
    • All ports run at same operational frequency>
    • Reference Clock is 100 MHz>
    • Slow boot speed initialization at 50 MT/s
  • Common reference clocking (same clock generator for both sender and receiver)
  • Intel® Interconnect Built-In-Self-Test (Intel® IBIST) for high-speed testability
  • Polarity and Lane reversal (Rx side only)

Platform Environment Control Interface (PECI)
The PECI is a one-wire interface that provides a communication channel between a PECI client (the processor) and a PECI master (the PCH).

  • Supports operation at up to 2 Mbps data transfers
  • Link layer improvements to support additional services and higher efficiency over PECI 2.0 generation
  • Services include CPU thermal and estimated power information, control functions for power limiting, P-state and T-state control, and access for Machine Check Architecture registers and PCI configuration space (both within the processor package and downstream devices)
  • PECI address determined by SOCKET_ID configuration
  • Single domain (Domain 0) is supported


Intel C608 ChipsetIntel C606 ChipsetIntel C604 ChipsetIntel C602J Chipset
Intel Server System R1208BB4DCIntel Server System R1208BB4GS9Intel Server System R1304BB4DCIntel Server System R1304BB4GS9
Intel Server System R1208EP2SHFNIntel Server System R1304EP2SFFNIntel Server System R1304EP2SHFNIntel Server System R1304SP2SFBN
Intel Server System R1304SP2SHBNIntel Server System R1304SP4SHOCIntel Server System R2000BB4GS9Intel Server System R2208BB4GC
Intel Server System R2208BB4GS9Intel Server System R2216BB4GCIntel Server System R2224BB4GCSASIntel Server System R2308BB4GC
Intel Server System R2312BB4GS9Intel Server System R2308SC2SHDRIntel Server System R2308SC2SHFNIntel Server System R2312SC2SHGR
Intel Server System P4304SC2SFENIntel Server System P4304SC2SHDRIntel Server System P4308SC2MHGCIntel Server Board S1400FP2
Intel Server Board S1400FP4Intel Server Board S1400SP2Intel Server Board S1400SP4Intel Server Board S2400EP2
Intel Server Board S2400EP4Intel Server Board S2400GP2Intel Server Board S2400GP4Intel Server Board S2400SC2

Intel® Xeon® Processor E5-2418L
10M, 2.0 GHz, 6.4 GT/s Intel® QPI
Intel Model NumbersE5-2418L
Alternate Model Numbers00Y8103
Product CollectionIntel® Xeon® Processor E5 Family
Code NameProducts formerly Sandy Bridge EN
Vertical SegmentEmbedded
Processor NumberE5-2418L
Launch DateQ2'12
Lithography32 nm
Number of Cores4
Number of Threads8)
Processor Base Frequency2.00 GHz
Max Turbo Frequency2.10 GHz
Cache10 MB SmartCache
Bus Speed6.4 GT/s QPI
Number of QPI Links1
Thermal Design Power (TDP)50 W
Supplemental Information
Embedded Options AvailableYes
Memory Specifications
Max Memory Size (dependent on memory type)384 GB
Memory TypesDDR3 800/1066/1333
Max Number of Memory Channels3
ECC Memory SupportedYes
Expansion Options
PCI Express RevisionGen 3.0
PCI Express ConfigurationsGen 3.0
Max Number of PCI Express Lanes24
Package Specifications
Sockets SupportedFCLGA1356
Max CPU Configuration2
Low Halogen Options AvailableSee MDDS
Advanced Technologies
Intel® Turbo Boost Technology2.0
Intel® Hyper-Threading TechnologyYes
Intel® Virtualization Technology (VT-x)Yes
Intel® Virtualization Technology for Directed I/O (VT-d)Yes
Intel® VT-x with Extended Page Tables (EPT)Yes
Intel® 64Yes
Enhanced Intel SpeedStep® TechnologyYes
Intel® Flex Memory AccessNo
Intel® Identity Protection TechnologyNo
Security & Reliability
Intel® AES New InstructionsYes
Intel® Trusted Execution TechnologyYes
Execute Disable BitYes

Click here to view the manufacturer's item description/brochure

Alternate MPNs: 00Y8103 00Y8135

Weight: 1 lb

Warranty: 1 Year DiscTech

Brand New

Condition Levels Explained

The product is brand new.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
