Seagate Part #/MPN: ST3300656SS
DiscTech Item #: SGT-ST3300656SS-BN-OE-DEL
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 300GB
Speed: 15,000RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 110 - 171
Average Seek Time: 3.4 / 3.9
Electrical Interface: SAS-1 Serial Attached SCSI - 3.0Gbps
On-Board Cache: 16MB
Compatible Systems: Dell 10th Gen. 2950 / 6950

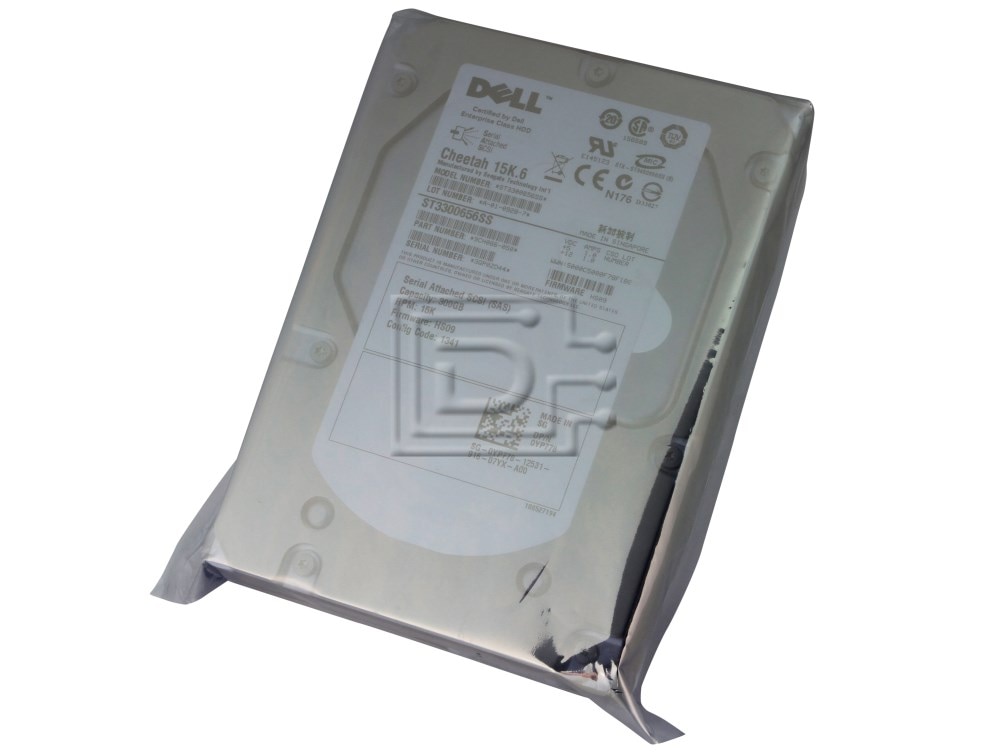

Seagate Cheetah 15K.6 300GB 15K 3.0Gbps Serial SCSI / SAS Hard Drive ST3300656SS - Brand New OEM
The Seagate® Cheetah® 15K.6 hard drive enables manageable tiered storage solutions without compromising performance or reliability. Cheetah 15K.6 drives deliver cost-effective solutions, allowing systems to keep up with increasing performance needs over a longer period of time.
Key Advantages
- Second-generation perpendicular recording delivers up to 450-GB capacity.
- Unprecedented performance with a 28 percent increase in sustained data rate, up to 164 MB/sec.
- Industry’s highest 3.5-inch drive reliability at 1.6-million-hours MTBF.
- Seagate proprietary PowerTrim™ technology provides a 61 percent improvement in watts/GB at idle.
- Advanced read/write technology delivers unrecoverable error rate of 1x10-16
- Available in FC or SAS interfaces
This is the direct replacement model to the ST3300655SS and is fully compatible as a RAID replacement.
Alternate PNs: YP778 0YP778 9CH066-050
Compatibility:
All SAS compatible servers including:
Dell PowerEdge 2900, 2950, 69090, 6950. PowerVault MD1000 and MD3000.
| Specifications | |
| Model number | ST3300656SS |
| Model Name | Cheetah 15K.6 |
| Form Factor(width) | 3.5-inch |
| Form Factor(height) | 1-inch |
| Height | 25.4 mm |
| Width | 101.6 mm |
| Length | 146.05 mm |
| Weight | 0.709 kg |
| Formatted Capacity | 300 Gbytes |
 | |
| Internal Transfer Rate (min) | 1051 Mbits/sec |
| Internal Transfer Rate (max) | 2225 Mbits/sec |
| Formatted Int Transfer Rate (min) | 110 MBytes/sec |
| Formatted Int Transfer Rate (max) | 171 MBytes/sec |
| External (I/O) Transfer Rate (max) | 300 MBytes/sec |
| |
| Average Seek Time, Read | 3.4 msec typical |
| Average Seek Time, Write | 3.9 msec typical |
| Track-to-Track Seek, Read | 0.2 msec typical |
| Track-to-Track Seek, Write | 0.4 msec typical |
| Average Latency | 2 msec |
| |
| Default Buffer (cache) Size | 16 Mbytes |
| Number of Discs (physical) | 3 |
| Number of Heads (physical) | 6 |
| |
| Startup Current (12VDC +/- 5%) | 4.56 amps |
| Startup Current (5VDC +/- 5%) | 1.95 amps |
| |
| Max Operating Shock (2-msec) | 60 Gs |
| Max Nonoperating Shock (2-msec) | 250 Gs |
| Operating Vibration (max) | 1.0 Gs |
| Nonoperating Vibration (max) | 2.0 Gs |
| |
| Operating Temperature (max) | 55 deg C |
| Operating Temperature (min) | 5 deg C |
| Nonoperating Temperature (max) | 70 deg C |
| Nonoperating Temperature (min) | -40 deg C |
| Acoustics, Idle (sound power, typ) | 3.6 Bels |
| MTBF (Hours) | 1,600,000 hours |
| Nonrecoverable Read Errors | 1 per 10^16 bits read |
| Supports S.M.A.R.T. | Yes |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: YP778 0YP778 9CH066-050
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
