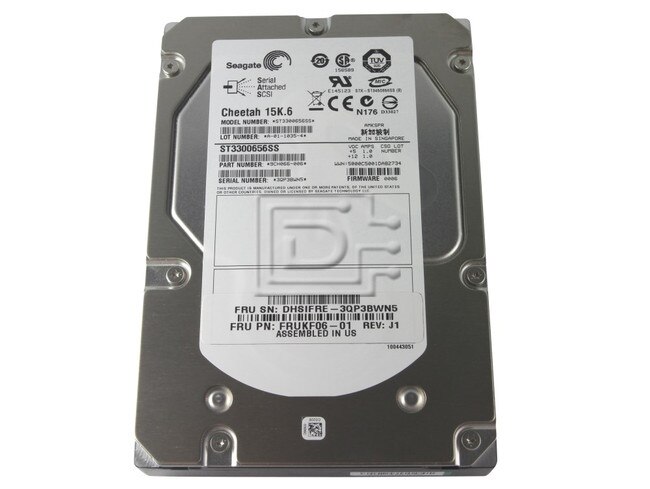

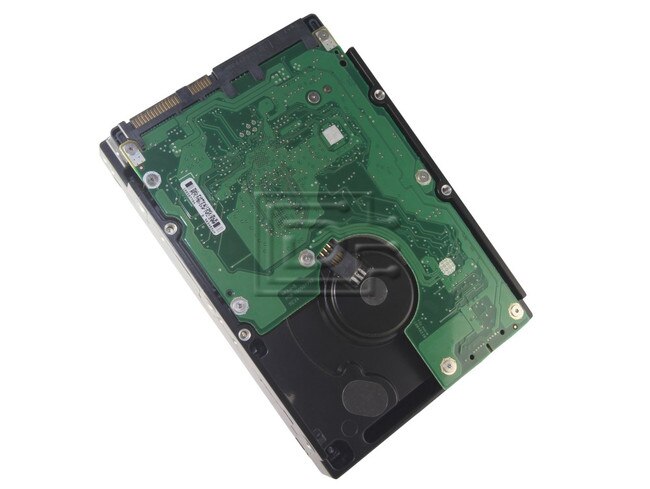

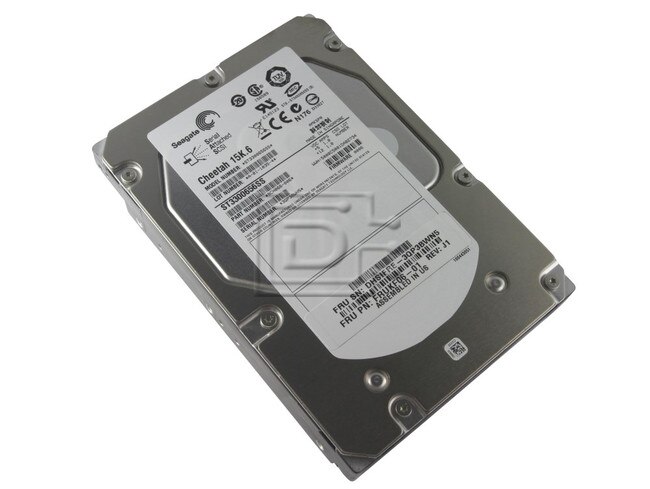

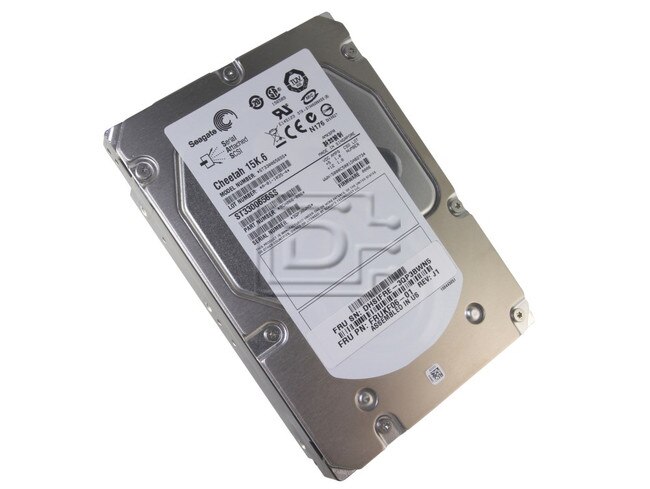

Seagate ST3300656SS 300GB SAS Hard Drives

Seagate Part #/MPN: ST3300656SS

DiscTech Item #: SGT-ST3300656SS-BN-5Y

$149.00

Brand New

Condition Levels Explained

The product is brand new.
Warranty:5 Year Manufacturer

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.
Low Stock:Call for ETA

Stock Levels

This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

$149.00

Enterprise Grade

Capacity: 300GB

Speed: 15K RPM

Interface Types: SAS

Form Factor: 3.5" LFF Hard Drive

Sector Size: 512 / 512e

Electrical Interface: SAS-1 3Gbps

On-Board Cache: 16MB

Compatible Systems: Dell 10th Gen. 2950 / 6950

Seagate Cheetah ST3300656SS 15K.6 300GB 15K 3.0Gbps Serial SCSI / SAS Hard Drive - Brand New

Features	Benefits
15K RPM spindle speed	Delivers more I/O's per second and faster sustained transfer rates than 10K 3.5-inch drvies, enabling the same high performance to be met with fewer drives.
Background Media Scan (BMS)	Second generation Seagate-exclusive BMS proactively scans the media for potential defects during drive idle time. It enables incipient errors to be corrected before data is lost.
Perpendicular Recording	Perpendicular recording is fundamentally superior, enabling the highest areal density with 30 percent higher performance.
Nonrecoverable Error Rate	The nonrecoverable error rate has been improved by a factor of 10.
Idle Read After Write (IRAW)	Seagate-exclusive IRAW enhances data protection by verifying-during drive idle time-that data in the drive buffer was properly written.
The industry's highest reliability 3.5" drive 30% more IOPS and 20% faster response times than 3.5" 10K drives

Compatibility:

All SAS compatible servers including:
Dell PowerEdge 1900, 1950, 2900, 2950, 6900, 6950. PowerVault MD1000

Specifications
Model Number	ST3300656SS
Interface	SAS 3Gb/s
Cache	16MB
Capacity	300 GB
Areal density (avg)	165 Gbits/inch2
Guaranteed Sectors	585,937,500
PHYSICAL
Height (max)	26.11 mm (1.028 inches)
Width (max)	101.85 mm (4.010 inches)
Length (max)	146.99 mm (5.787 inches)
Weight (typical)	694 grams (1.53 pounds)
PERFORMANCE
Spindle Speed	15,000 rpm
Sustained data transfer rate	171,000 null
Average latency	2.0 msec
Random read seek time	3.4 msec
Random write seek time	3.9 msec
null	300 null
RELIABILITY
MTBF	1,600,000 hours
Annual Failure Rate	0.55%
Unrecoverable read errors	1 in 10^16
POWER
Maximum start current, AC	4.06 amps
Maximum start current, DC	1.78 amps
ENVIRONMENT
Ambient Temperature
Operating	5 to55 degrees C
Nonoperating	-40 to70 degrees C
Maximum operating temperature change	20 degrees C per hour
Maximum nonoperating temperature change	20 degrees C per hour
Shock
Operating Shock (max)	25 Gs null 2 msec
Nonoperating Shock (max)	300 Gs null 2 msec
ACOUSTICS
Acoustics (Idle Volume)	3.5 bels
Acoustics (Seek Volume)	3.7 bels
