Seagate Part #/MPN: ST91000640SS
DiscTech Item #: SGT-ST91000640SS-NP-OE-DEP
- New PullCondition Levels Explained
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 1TB
Speed: 7,200RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Sustained Throughput: 115
Average Seek Time: 7.5 / 8.5
Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps
On-Board Cache: 64MB

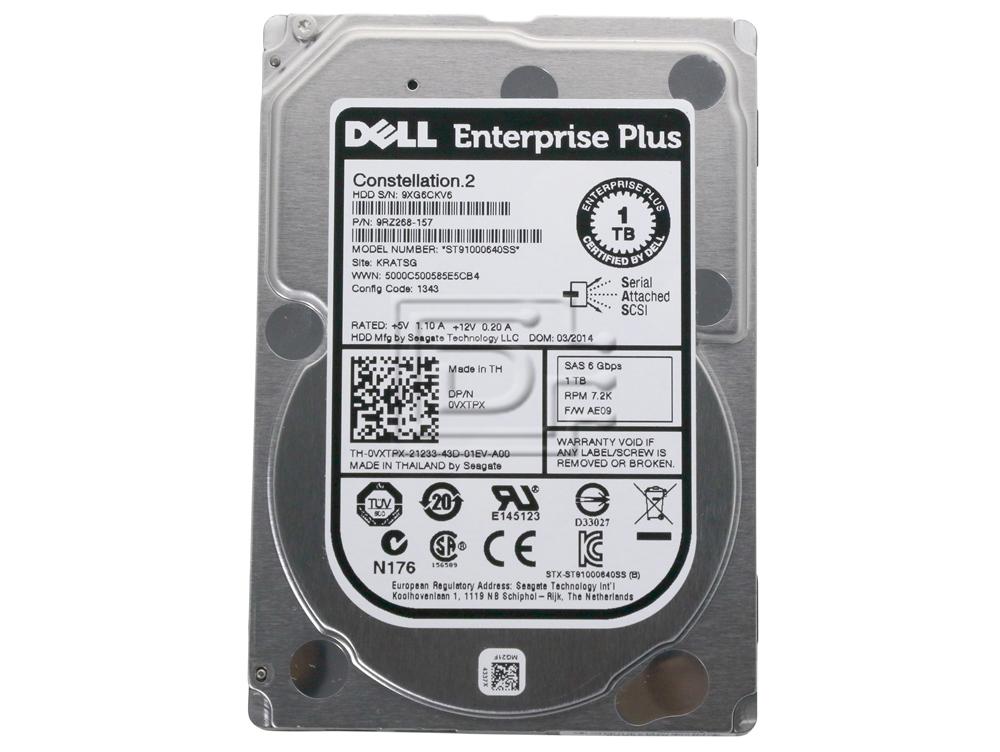

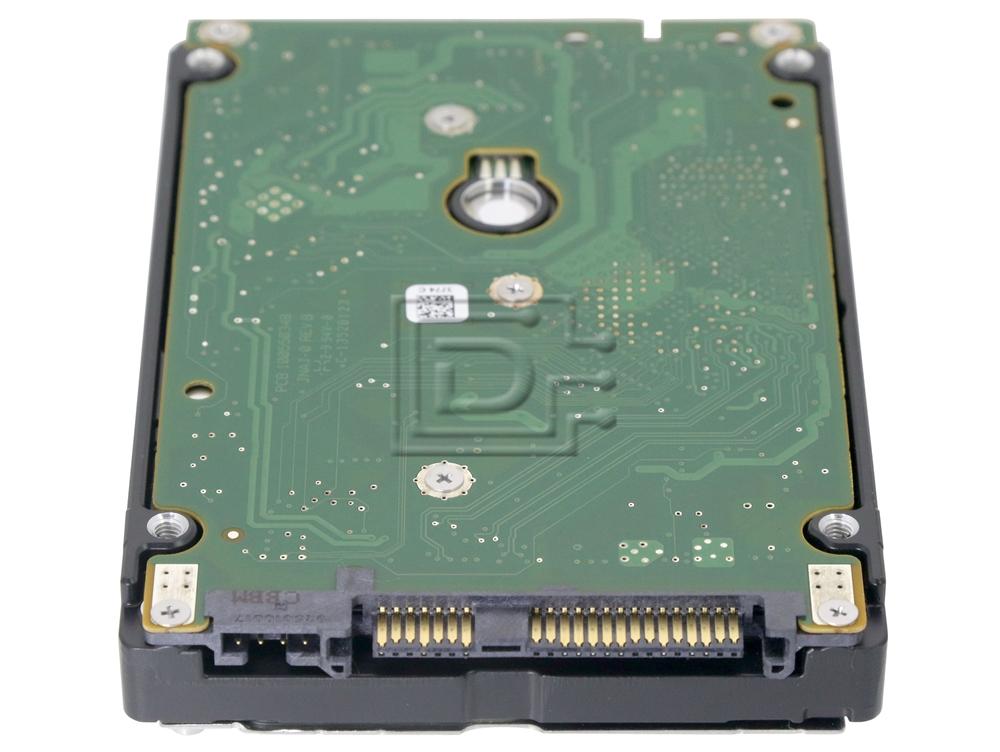

Dell Enterprise Plus VXTPX / Seagate Constellation.2 ST91000640SS 1TB 7.2K 6.0Gbps SFF Serial SCSI / SAS Hard Drive - New Pull OEM
Overview
For Dell Equallogic enterprise storage solutions.
Seagate® Constellation.2™ drives are the most energy efficient enterprise drives on the market. Designed for enterprise robustness, Constellation.2 is available in capacities up to 1TB and offers reliable storage for high capacity servers and storage arrays in a minimal footprint.
Key Features and Benefits
* Industry’s first 2.5-inch 1TB capacity-optimized drive for dense, space-constrained data centers allows you to store twice as much data in the same footprint.
* Build highly efficient bulk storage solutions while lowering your power consumption costs
* Designed for robust 24x7 operation with a 1.4M hour mean-time-between-failure (MTBF) rating
* Best-in-class rotational vibration tolerance ensures unrivaled performance in high spindle-density applications, and multi-drive firmware maximizes system availability
* Choose from 6Gb/s SAS with improved data integrity, scalability and fastest data access or SATA 6Gb/s for economical 7200-RPM performance
* TCG- compliant, Self-Encrypting Drive (SED) security option cuts IT drive retirement expenses while securely protecting data*
DPN: 0VXTPX / VXTPX / TH-0VXTPX-21233-163-007H-A01
Compatibility:
This drive is compatible with any of our SAS drive trays and any of our SAS controllers.
Drive specification | ST91000640SS |
Formatted Gbytes (512 bytes/sector) | 1000 |
Bytes per sector | 512 |
Spindle speed (RPM) | 7,200 |
I/O data transfer rate (MBps) | 600 |
Cache buffer | 64 MB |
Interface Type | 6.0Gbps SAS |
Seek time (read / write) ms | 7.5 / 8.5 |
Sustainted Data Transfer Rate | 115MB/s |
Dimensions (HxLxW) mm | 15 / 100.45 / 70.1 |
Weight | 0.200 kg |
Operating Shock (Read) | 25G, 2ms |
Non-operating Shock | 400G, 2ms |
Temperature - Operating | 5C -60C |
Temperature - Non-operating | -40C - 70C |
Current Requirements 12VDC (Read/Write, Idle) | 10.8w / 8.0w |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: 0VXTPX VXTPX
Weight: 0.5 lb
Warranty: 1 Year DiscTech
New Pull
The product has been mounted in a brand new system (e.g. server), then removed from the system, before entering service. These products may have some hours of usage due to system build time / burn-in / testing etc. New Pulls are guaranteed to have at least 95% (often 99%) of their service life remaining , they may show signs of being physically mounted and dismounted. All handling is performed by trained technicians, taking full ESD precautions.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
