Seagate Constellation ST91000640SS Serial SCSI / SAS Hard Disk

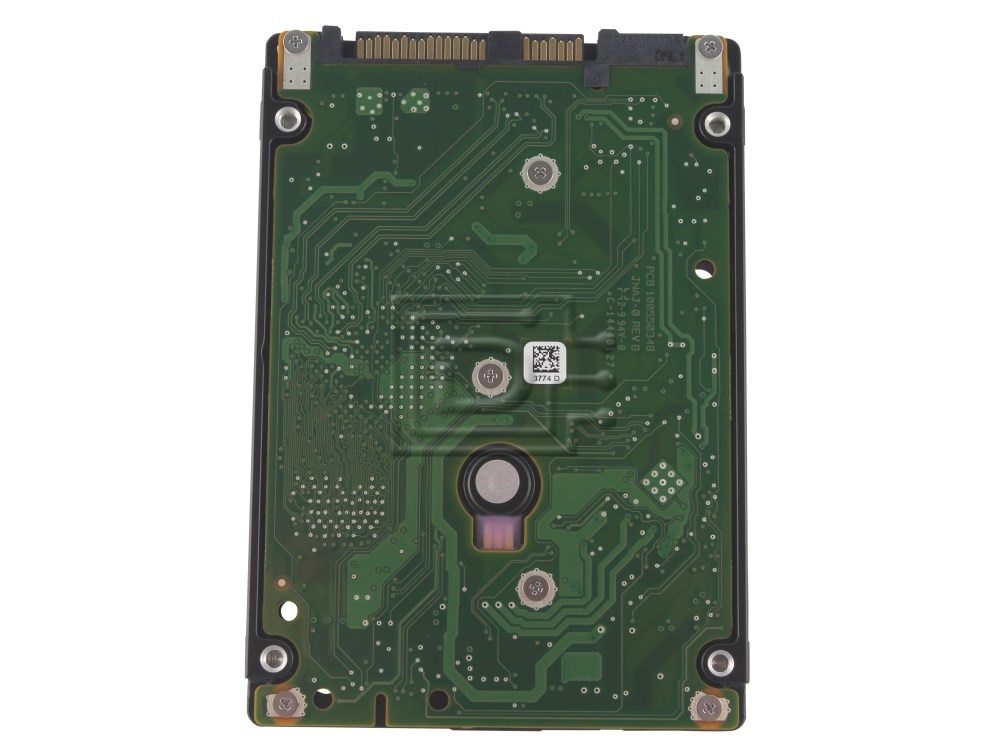

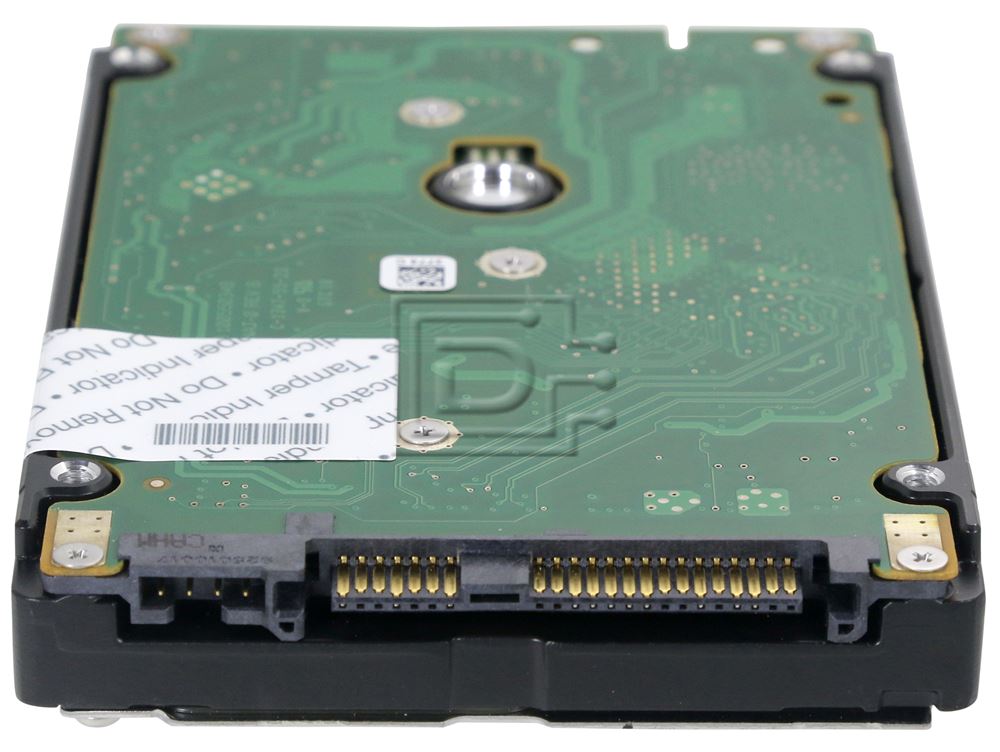

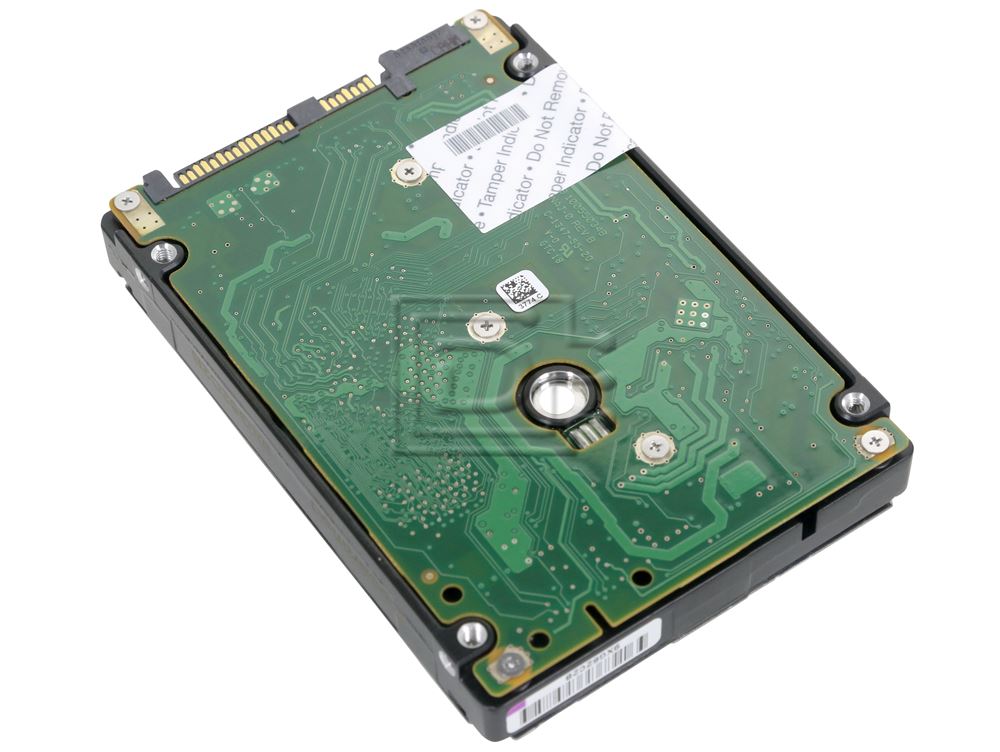

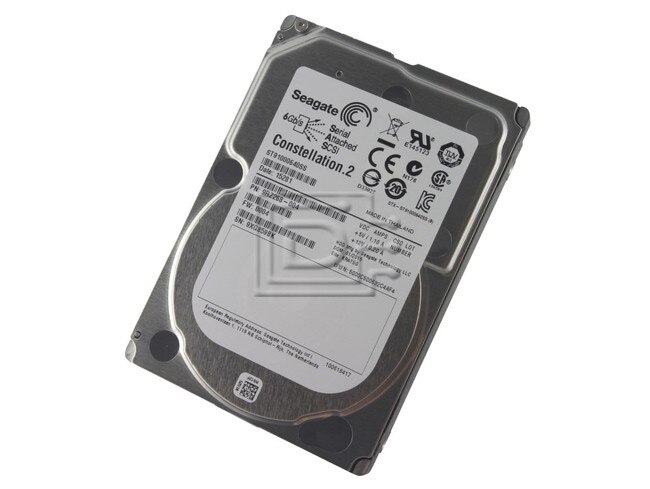

Seagate ST91000640SS SAS Hard Drive Image 1 image
  • Brand New
    Condition Levels Explained

    The product is brand new.

  • In Stock:3
    Need more?
    Stock Levels

    This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.

  • 1 Year DiscTechWarranty
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

$139.99

Capacity:1TB
Speed:7.2K RPM
Interface Types:SAS
Form Factor:2.5" SFF Server Drive
Electrical Interface:SAS-2 6Gbps
RAM:64MB

Description

Seagate Constellation.2 ST91000640SS 1TB / 1000GB 7.2K 6.0Gbps SFF Serial SCSI / SAS Hard Drive - Brand New

Overview

Seagate® Constellation.2™ drives are the most energy efficient enterprise drives on the market. Designed for enterprise robustness, Constellation.2 is available in capacities up to 1TB and offers reliable storage for high capacity servers and storage arrays in a minimal footprint.
Key Features and Benefits

    * Industry’s first 2.5-inch 1TB capacity-optimized drive for dense, space-constrained data centers allows you to store twice as much data in the same footprint.
    * Build highly efficient bulk storage solutions while lowering your power consumption costs
    * Designed for robust 24x7 operation with a 1.4M hour mean-time-between-failure (MTBF) rating
    * Best-in-class rotational vibration tolerance ensures unrivaled performance in high spindle-density applications, and multi-drive firmware maximizes system availability
    * Choose from 6Gb/s SAS with improved data integrity, scalability and fastest data access or SATA 6Gb/s for economical 7200-RPM performance
    * TCG- compliant, Self-Encrypting Drive (SED) security option cuts IT drive retirement expenses while securely protecting data*

Compatibility:

This drive is compatible with any of our SAS drive trays and any of our SAS controllers.

Specifications

Drive specification

ST91000640SS

Formatted Gbytes (512 bytes/sector)

1000

Bytes per sector

512

Spindle speed (RPM)

7,200

I/O data transfer rate (MBps)

600

Cache buffer

64 MB

Interface Type

6.0Gbps SAS

Seek time (read / write) ms

7.5 / 8.5

Sustainted Data Transfer Rate

115MB/s

Dimensions (HxLxW) mm

15 / 100.45 / 70.1

Weight

0.200 kg

Operating Shock (Read)

25G, 2ms

Non-operating Shock

400G, 2ms

Temperature - Operating

5C -60C

Temperature - Non-operating

-40C - 70C

Current Requirements 12VDC (Read/Write, Idle)

10.8w / 8.0w

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 1 lb

Warranty: 1 Year DiscTech

Condition

Brand New

Warranty

1 Year DiscTech Warranty
