Seagate Exos X24 ST24000NM002H 24TB 3.5in SATA 6Gbps 7.2K 512e/4Kn ISE Enterprise HDD
- In Stock:88Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
- 5 Year ManufacturerWarrantyProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
Description
Seagate Exos X24 ST24000NM002H 24TB 3.5 LFF 6Gbps 7.2K RPM FastFormat 512e Enterprise SATA Hard Drive - Brand New
Seagate Exos X24 ST24000NM002H 24TB 3.5 LFF 6Gbps 7.2K RPM FastFormat 512e Enterprise SATA Hard Drive - Brand New

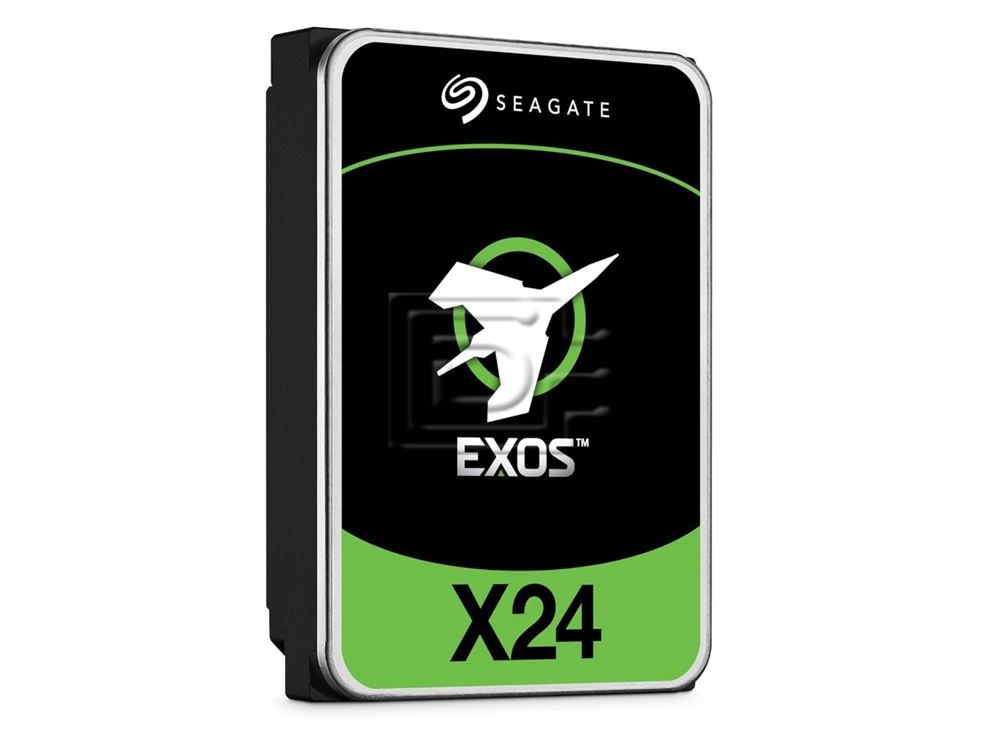

Seagate Exos X24 24TB Enterprise SATA Hard Drive
The Seagate Exos X24 ST24000NM002H is a 24TB, 3.5-inch enterprise hard drive designed for high-capacity data center, scale-out storage, RAID, backup, and distributed file-system deployments. This model uses a single-port SATA 6Gb/s interface, 7,200 RPM spindle speed, Conventional Magnetic Recording (CMR), a helium-sealed design, and 512MB multisegmented cache.
ST24000NM002H is the standard Seagate Instant Secure Erase (ISE) model, not the self-encrypting-drive variant. Its FastFormat configuration ships in 512e format and can be reformatted to 4Kn where the host controller, operating system, and application support 4K native sectors. Reformatting the drive deletes all existing data.
- 24TB enterprise-class SATA HDD for high-density storage deployments
- 3.5-inch LFF form factor with SATA 6Gb/s interface and 7,200 RPM speed
- CMR recording technology and 512MB cache
- FastFormat 512e shipping format with supported 4Kn conversion capability
- Maximum sustained transfer rate of up to 285 MB/s
- Suitable for data centers, storage arrays, RAID, backup and restore, surveillance, and distributed storage environments
Before deployment, verify that the server or storage enclosure supports 3.5-inch SATA drives, the intended sector format, required drive capacity, and the applicable controller or operating-system configuration.
Compatibility
Compatible with systems that support 24TB 3.5" SATA HDDS
Specifications
| Exos Enterprise X24 | |
|---|---|
| Standard Model FastFormat (512e/4Kn) | ST24000NM002H |
| Features | |
| Reliability/Data Integrity | |
| Performance | |
| Power Consumption | |
| Evrironmental/Temperature | |
| Physical | |
| Interface | 6Gb/s SATA III |
| Capacity | 24TB / 24000GB |
| Helium Sealed-Drive Design | Yes |
| RSA 3072 Firmware Verification (SD&D) | Yes |
| SuperParity | Yes |
| Recording Technology | CMR |
| PowerChoice Technology | Yes |
| PowerBalance Technology | Yes |
| Hot-Plug Support | Yes |
| Cache, Multisegmented (MB) | 512 |
| Interface Ports | Single |
| RSA 2048 Firmware Verification | Yes |
| Mean Time Between Failures (MTBF, hours) | 2,500,000 |
| Reliability Rating @ Full 24×7 Operation (AFR) | 0.35% |
| Nonrecoverable Read Errors per Bits Read | 1 Sector per 1015 |
| Power-On Hours per Year (24×7) | 8760 |
| 512e Sector Size (Bytes per Sector) |
|
| 4Kn Sector Size (Bytes per Sector) |
|
| Spindle Speed (RPM) | 7200 |
| Interface Access Speed (Gb/s) |
|
| Max Sustainable Transfer Rate |
|
| Random Rewad/Write 4K QD03 WCD (IOPS) | 168/550 |
| Average Latency (ms) | 4.16 |
| Interface | SATA |
| Rotational Vibration @ 20-1500Hz (rad/sec) | 12.5 |
| Idle A (W) Average |
|
| Max Operating, Random Read/Write 4K/16Q (W) |
|
| Power Supply Requirements | +12 V and +5 V |
| Temperature, Operating (°C) | 5°C - 60°C |
| Vibration, Nonoperating: 2 to 500Hz (Grms) | 2.27 |
| Shock, Operating Read/Write (Gs) | 40Gs |
| Shock, Nonoperating, 1ms/2ms (Gs) | 200 |
| Height (in/mm, max) | 1.028in/26.1mm |
| Weight (in/mm, max) | 4.01 in/101.85 mm |
| Depth (in/mm, max) | 5.787in/147.0mm |
| Weigt (g/lb) | 685g/1.51lb |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: 3KS133-004
Weight: 1.8 lb
Warranty: 5 Year Manufacturer
Condition
The product is brand new.
Warranty
5 Year Manufacturer Warranty
