Seagate Part #/MPN: ST2000NX0433
DiscTech Item #: SGT-ST2000NX0433-BN-OE-DEL
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 2TB
Speed: 7,200RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Sustained Throughput: 136
Average Seek Time: 4.16
Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps
On-Board Cache: 128MB
Compatible Systems: Dell 13th Gen. R730/T630, Dell 12th Gen. R720/T620, Dell 11th Gen. R710/T610, HP 9th Gen. G9, HP 8th Gen. G8

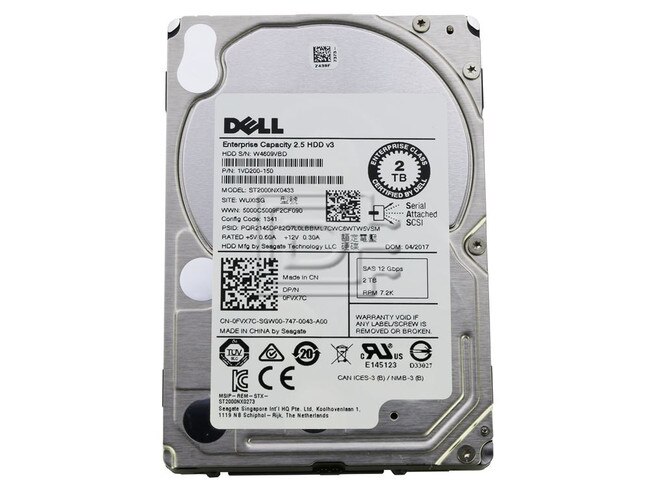

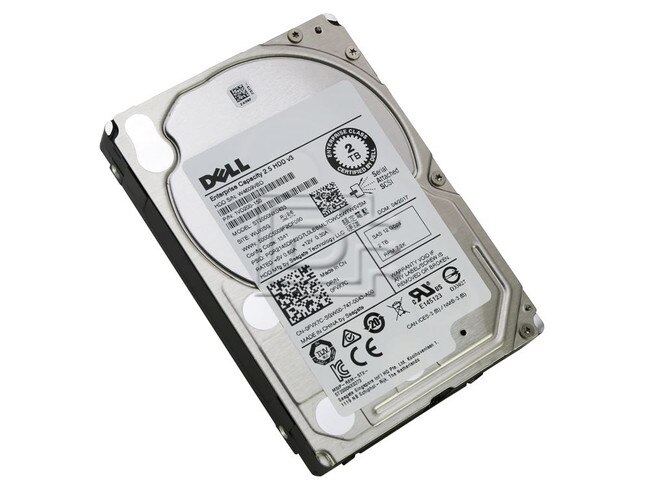

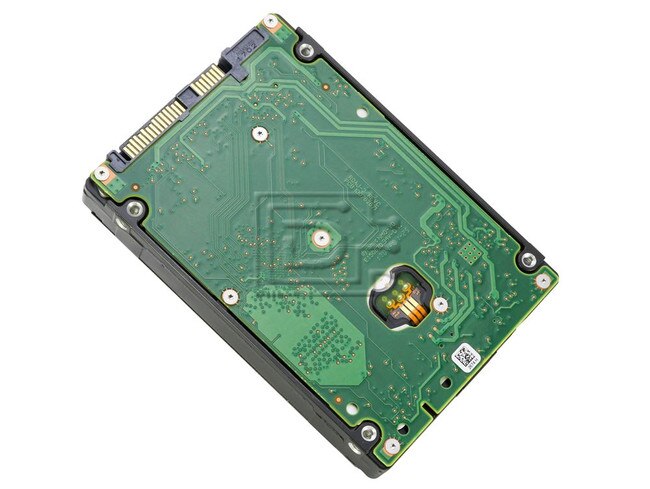

Seagate ST2000NX0433 / FVX7C 2TB 2.5" SFF 12Gbps 7.2K RPM Enterprise SAS HDD - Brand New OEM
Dell Part Number: FVX7C , 0FVX7C , 1VD200-150
Enterprise Capacity 2.5 HDD
Design Small and Deliver BIG – 2.5-Inch Nearline Drive
- Up to 2TB capacity in 15mm z-height, 2.5-inch form factor for space-constrained data centers.
- Designed for high-density storage solutions requiring environmentally sound low power consumption and low weight for maximum storage efficiency.
- Choose 12Gb/s SAS for high data integrity, scalability and fast data access.
- Third-generation, enterprise-class reliability for 24x7 environmental robustness.
- Highest efficiency with over 50% improvement in watts/TB, and 18% sequential performance improvement compared to the previous generation.
- Improved rotational vibration tolerance and head micro-actuation maximizes system availability and performance.
- Lowest enterprise operating power and enhanced PowerChoice options for additional power savings during idle periods.
Best-Fit Applications
- Storage-hungry business applications
- Storage area networks (SAN) and network attached storage (NAS).
- Maximum-capacity entry-level servers and blade servers
- Rich media content storage
- Enterprise backup and restore – D2D, virtual tape
- Cloud computing
Compatibility:
This drive is compatible with any server that accepts 2.5in x 15mm (SFF) SAS drives.
Seagate | |
---|---|
Part Number | ST2000NX0433 |
Dell Part Number | FVX7C |
Specification | 5xx Emulation |
Capacity | 2 TB/2,000 GB |
Features | |
PowerChoice on demand power option | Yes |
Protection Information | Yes |
Low Halogen | Yes |
RAID Rebuild | Yes |
Reliability/Data Integrity | |
Mean Time Between Failures (MTBF, hours) | 1.4 million |
Reliability Rating @ Full 24x7 operation (AFR) | 0.63% |
Nonrecoverable Read Errors per Bits Read | 1 sector per 10e15 |
Power-On Hours per Year | 8760 |
Bytes per Sector | 512, 520, 528 |
Performance | |
Spindle Speed (RPM) | 7200 |
Cache Buffer, Multisegmented (MB) | 128 |
Interface Access Speed (Gb/s) | 12.0, 6.0, 3.0 |
Max. Sustained Transfer Rate (MB/s) | 136 |
Average Latency (ms) | 4.16 |
Interface Ports | Dual |
RV Tolerance (rad/s to 1800Hz) | 16 |
Power Management | |
Idle Power (W) | 3.53 |
Typical Operating, Random Read (W) | 6.02 |
PowerChoice Technology (Standby) (W) | 1.52 |
Power Supply Requirements | +12V and +5V |
Environmental | |
Temperature, Operating (°C) | 5 to 55 |
Vibration, Operating, 5Hz to 500Hz (Gs) | 0.5 |
Vibration, Nonoperating, 5Hz to 500Hz (Gs) | 3.0 |
Shock, Operating, 2ms (Gs) | 25 |
Shock, Nonoperating, 2ms (Gs) | 400 |
Acoustics, Typical Idle (bels) | 2.8 |
Acoustics, Typical Seel (bels) | 3.2 |
Physical | |
Height (in/mm) | 0.591/15.00 |
Width (in/mm) | 2.760/70.10 |
Depth (in/mm) | 3.955/100.45 |
Weight (lb/kg) | 0.437/0.198 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: FVX7C 0FVX7C 1VD200-150
Weight: 0.5 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
