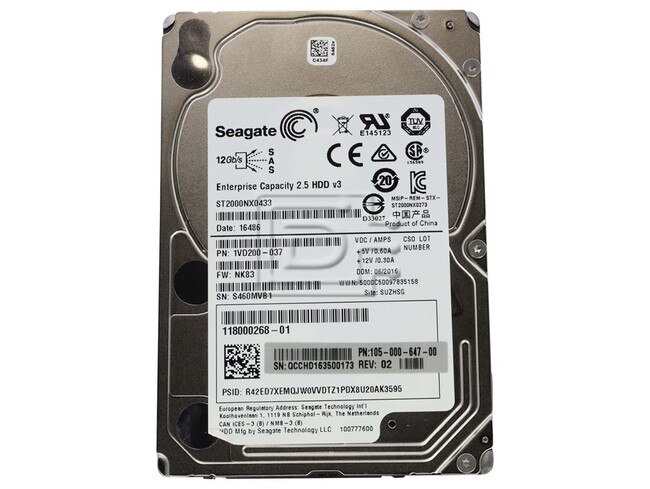

Seagate ST2000NX0433 2TB 2.5" SFF 12Gbps 7.2K RPM Enterprise SAS HDD

Seagate ST2000NX0433 SAS Hard Drive Image 1 imageSeagate ST2000NX0433 SAS Hard Drive Image 2 imageSeagate ST2000NX0433 SAS Hard Drive Image 3 image
  • Brand New
    Condition Levels Explained

    The product is brand new.

  • In Stock:5
    Need more?
    Stock Levels

    This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.

  • 1 Year DiscTechWarranty
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

$299.00

Capacity:2TB
Speed:7.2K RPM
Interface Types:SAS
Form Factor:2.5" SFF Server Drive
Electrical Interface:SAS-3 12Gbps
RAM:128MB

Description

Seagate ST2000NX0433 2TB 2.5" SFF 12Gbps 7.2K RPM Enterprise SAS HDD - Brand New

Seagate ST2000NX0433 2TB 2.5" SFF 12Gbps 7.2K RPM Enterprise SAS HDD - Brand New

Enterprise Capacity 2.5 HDD

Design Small and Deliver BIG – 2.5-Inch Nearline Drive

  • Up to 2TB capacity in 15mm z-height, 2.5-inch form factor for space-constrained data centers.
  • Designed for high-density storage solutions requiring environmentally sound low power consumption and low weight for maximum storage efficiency.
  • Choose 12Gb/s SAS for high data integrity, scalability and fast data access.
  • Third-generation, enterprise-class reliability for 24x7 environmental robustness.
  • Highest efficiency with over 50% improvement in watts/TB, and 18% sequential performance improvement compared to the previous generation.
  • Improved rotational vibration tolerance and head micro-actuation maximizes system availability and performance.
  • Lowest enterprise operating power and enhanced PowerChoice options for additional power savings during idle periods.

Best-Fit Applications

  • Storage-hungry business applications
  • Storage area networks (SAN) and network attached storage (NAS).
  • Maximum-capacity entry-level servers and blade servers
  • Rich media content storage
  • Enterprise backup and restore – D2D, virtual tape
  • Cloud computing

Compatibility

This drive is compatible with any server that accepts 2.5in x 15mm (SFF) SAS drives.

Specifications

Seagate
Part NumberST2000NX0433
Features
Reliability/Data Integrity
Performance
Power Management
Environmental
Physical
Drive Dimensions2.5inx15mm
Specification5xx Emulation
Capacity2 TB/2,000 GB
PowerChoice on demand power optionYes
Protection InformationYes
Low HalogenYes
RAID RebuildYes
Mean Time Between Failures (MTBF, hours)1.4 million
Reliability Rating @ Full 24x7 operation (AFR)0.63%
Nonrecoverable Read Errors per Bits Read1 sector per 10e15
Power-On Hours per Year8760
Bytes per Sector512, 520, 528
Spindle Speed (RPM)7200
Cache Buffer, Multisegmented (MB)128
Interface Access Speed (Gb/s)12.0, 6.0, 3.0
Max. Sustained Transfer Rate (MB/s)136
Average Latency (ms)4.16
Interface PortsDual
RV Tolerance (rad/s to 1800Hz)16
Idle Power (W)3.53
Typical Operating, Random Read (W)6.02
PowerChoice Technology (Standby) (W)1.52
Power Supply Requirements+12V and +5V
Temperature, Operating (°C)5 to 55
Vibration, Operating, 5Hz to 500Hz (Gs)0.5
Vibration, Nonoperating, 5Hz to 500Hz (Gs)3.0
Shock, Operating, 2ms (Gs)25
Shock, Nonoperating, 2ms (Gs)400
Acoustics, Typical Idle (bels)2.8
Acoustics, Typical Seel (bels)3.2
Height (in/mm)0.591/15.00
Width (in/mm)2.760/70.10
Depth (in/mm)3.955/100.45
Weight (lb/kg)0.437/0.198
Click here to view the manufacturer's item description/brochure

ROHS Compliant

Weight: 0.5 lb

Warranty: 1 Year DiscTech

Condition

Brand New

Warranty

1 Year DiscTech Warranty
