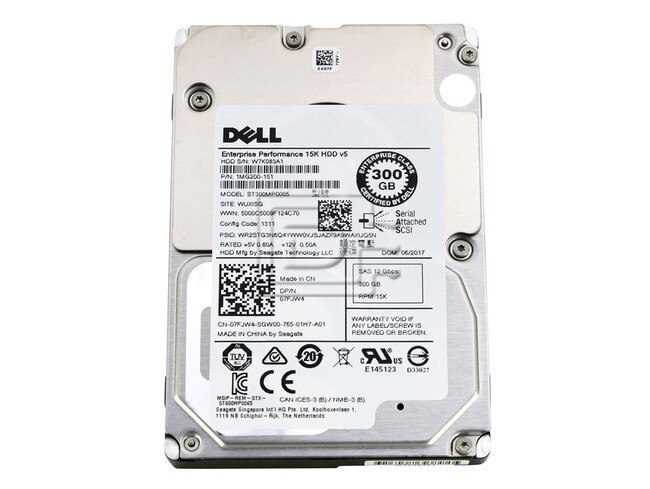

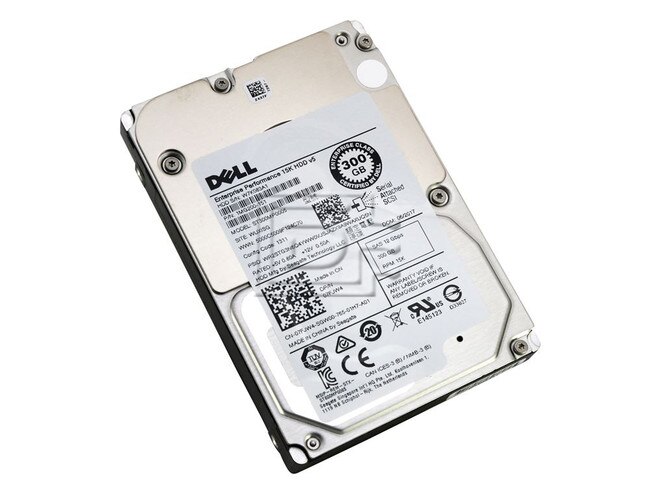

Dell 7FJW4 Seagate ST300MP0005 300GB SAS Hard Drive

Seagate Part #/MPN: ST300MP0005

DiscTech Item #: SGT-ST300MP0005-BN-OE-DEL

$100.00
  • Brand New
    Condition Levels Explained

    The product is brand new.

  • Warranty:1 Year DiscTech
    Product Warranties Explained

    The product has a DiscTech warranty for the time period specified. View our limited warranty

  • In Stock:76Need more?
    Stock Levels

    This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.

Back
$100.00

Enterprise Grade

Capacity: 300GB

Speed: 15,000RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 512 / 512e

Sustained Throughput: 233 to 160

Average Seek Time: 2.0

Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps

On-Board Cache: 128MB

Dell 7FJW4 / Seagate ST300MP0005 300GB 2.5in 12.0Gbps 15,000 RPM Enterprise SAS Hard Drive - Brand New OEM

Alt PN: 07FJW4, 7FJW4 1MG200, 1MG200-150

Enterprise Performance 15K HDD

High-Performing, Up to 600GB, Small Form Factor 15K Hard Drive



  • Stores twice the amount of Tier 1 data over previous generation, without increasing drive count, in 2.5-inch form factor
  • Enables faster transaction processing, which can result in increased revenue generation and improved customer satisfaction
  • Latest 12Gb/s SAS interface for improved scalability
  • Industry’s highest MTBF at 2.0M hours
  • Support for all drive formats, including 512 Native, 512 Emulation and 4K Native
  • Provides up to 18% improvement in SDR performance over prior generation
  • SAS-based Protection Information (PI) helps protect against inadvertent data change.



Best-Fit Applications



  • High-performance Tier 1 enterprise servers
  • Blade, rack and tower servers hosting transaction-based applications
  • Power- and space-constrained data centers
  • Compliance and data security initiatives

Alternate Part No.: 1MG200-151, 1MG200-150, 7FJW4, 07FJW4

Compatibility:

This drive is compatible with any server that accepts 2.5"x15mm (SFF) SAS drives.

SPECIFICATIONS
Model NumberST300MP0005
Specification512 Native
Capacity300GB
Interface12Gb/s SAS
PERFORMANCE
Average Latency (ms)2.0
Sustained Transfer Rate (Outer to Inner Diameter) MiB/s233 to 160
Max. Instantaneous Transfer Rate (SAS dual port) MB/s2400
Cache, Multisegmented (MB)128
CONFIGURATION/RELIABILITY
Disks/Heads2/4
Nonrecoverable Read Errors per Bits Read, Max1 per 10e16
Annualized Failure Rate (AFR)0.44%
POWER MANAGEMENT
Typical Op (A) +5V/+12V0.46/0.51
Average Idle Power (W)4.8
Average Operating Power (W)8.4
ENVIRONMENTAL
Ambient Temperature, Operating (C°)5 to 55
Ambient Temperature, Nonoperating (C°)-40 to 70
Temperature Change Rate/Hr, Max (C°)20
Relative Humidity, Noncondensing (max gradient 20% hour)5% to 95%
Shock, Max Operating: 11ms (Gs)40
Shock, Max Nonoperating: 2ms (Gs)400
Vibration, Operating: <400Hz (Gs)0.5
Vibration, Nonoperating: <500Hz (Gs)2.4
PHYSICAL
Height (in/mm, max)0.591/15.00
Width (in/mm, max)2.750/69.85
Depth (in/mm, max)3.955/100.45
Weight (lb/kg)0.496/0.225
Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 07FJW4 7FJW4 1MG200-150 1MG200-151

Weight: 0.5 lb
