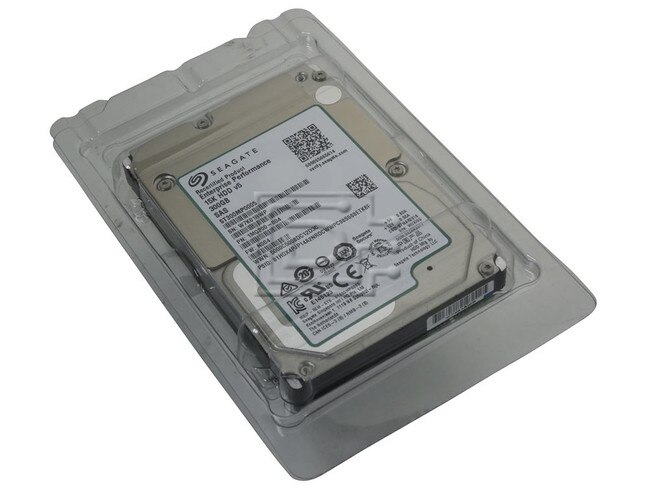

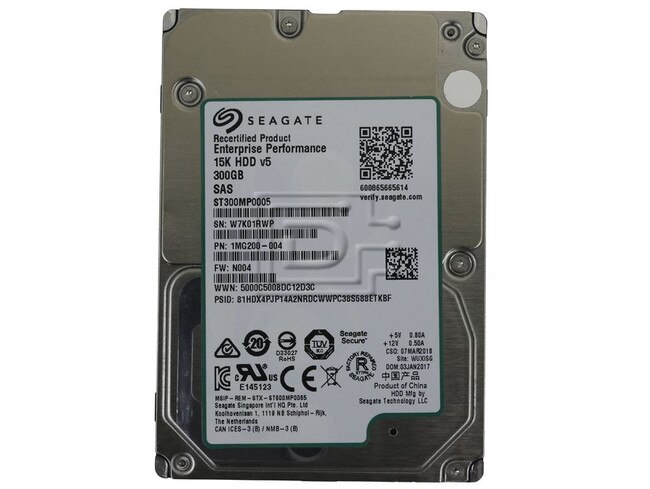

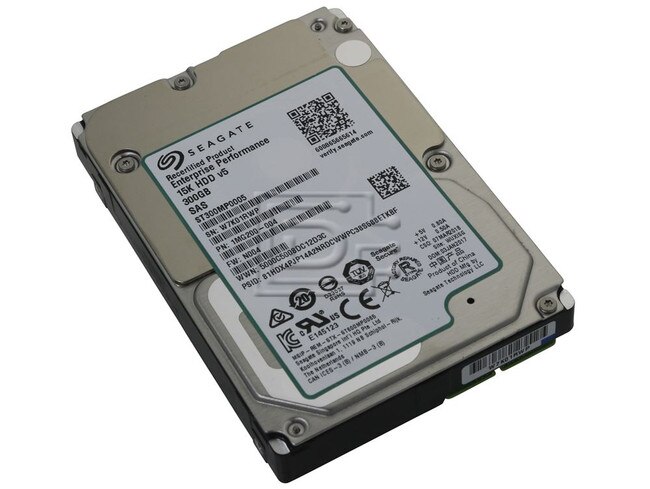

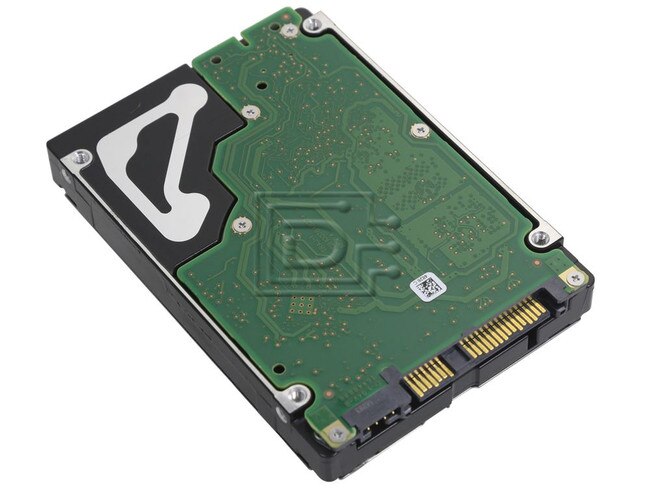

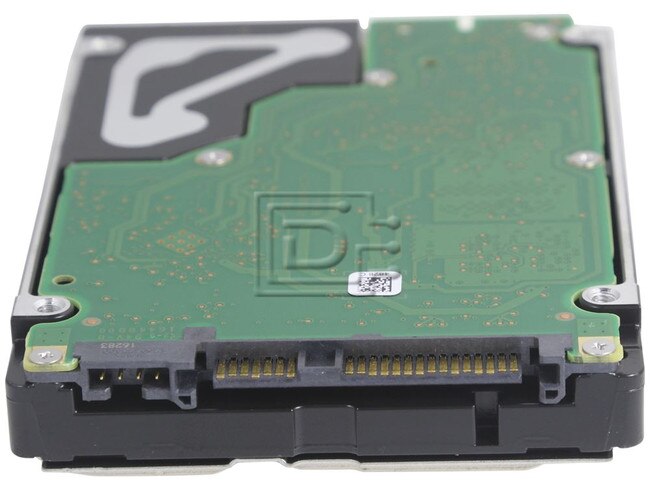

Seagate ST300MP0005 300GB SAS Hard Drive

(0) No Reviews Yet

Seagate Part #/MPN: ST300MP0005

DiscTech Item #: SGT-ST300MP0005-FR-OE


$129.00
$129.00

Enterprise Grade

Capacity: 300GB

Speed: 15,000RPM

Interface Types: SAS Serial Attached SCSI

Form Factor: 2.5inx15mm SFF Server Drive

Sector Size: 512 / 512e

Sustained Throughput: 233 to 160

Average Seek Time: 2.0

Electrical Interface: SAS-3 Serial Attached SCSI v3 - 12.0Gbps

On-Board Cache: 128MB

Seagate ST300MP0005 300GB 2.5in 12.0Gbps 15,000 RPM Enterprise SAS HDD - Factory Recertified

Alt. PN: 1MG200, 1MG200-881

Enterprise Performance 15K HDD

High-Performing, Up to 600GB, Small Form Factor 15K Hard Drive

  • Stores twice the amount of Tier 1 data over previous generation, without increasing drive count, in 2.5-inch form factor
  • Enables faster transaction processing, which can result in increased revenue generation and improved customer satisfaction
  • Latest 12Gb/s SAS interface for improved scalability
  • Industry’s highest MTBF at 2.0M hours
  • Support for all drive formats, including 512 Native, 512 Emulation and 4K Native
  • Provides up to 18% improvement in SDR performance over prior generation
  • SAS-based Protection Information (PI) helps protect against inadvertent data change.

Best-Fit Applications

  • High-performance Tier 1 enterprise servers
  • Blade, rack and tower servers hosting transaction-based applications
  • Power- and space-constrained data centers
  • Compliance and data security initiatives


Compatibility:

This drive is compatible with any server that accepts 2.5"x15mm (SFF) SAS drives.

Backward compatible with SAS 2 and 1 interfaces.


SPECIFICATIONS
Model NumberST300MP0005
Specification512 Native
Capacity300GB
Interface12Gb/s SAS
PERFORMANCE
Average Latency (ms)2.0
Sustained Transfer Rate (Outer to Inner Diameter) MiB/s233 to 160
Max. Instantaneous Transfer Rate (SAS dual port) MB/s2400
Cache, Multisegmented (MB)128
CONFIGURATION/RELIABILITY
Disks/Heads2/4
Nonrecoverable Read Errors per Bits Read, Max1 per 10e16
Annualized Failure Rate (AFR)0.44%
POWER MANAGEMENT
Typical Op (A) +5V/+12V0.46/0.51
Average Idle Power (W)4.8
Average Operating Power (W)8.4
ENVIRONMENTAL
Ambient Temperature, Operating (C°)5 to 55
Ambient Temperature, Nonoperating (C°)-40 to 70
Temperature Change Rate/Hr, Max (C°)20
Relative Humidity, Noncondensing (max gradient 20% hour)5% to 95%
Shock, Max Operating: 11ms (Gs)40
Shock, Max Nonoperating: 2ms (Gs)400
Vibration, Operating: <400Hz (Gs)0.5
Vibration, Nonoperating: <500Hz (Gs)2.4
PHYSICAL
Height (in/mm, max)0.591/15.00
Width (in/mm, max)2.750/69.85
Depth (in/mm, max)3.955/100.45
Weight (lb/kg)0.496/0.225

Click here to view the manufacturer's item description/brochure

ROHS Compliant

Alternate MPNs: 1MG200 1MG200-881

Weight: 0.5 lb

Warranty: 1 Year DiscTech

Factory Refurbished

Condition Levels Explained

The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
