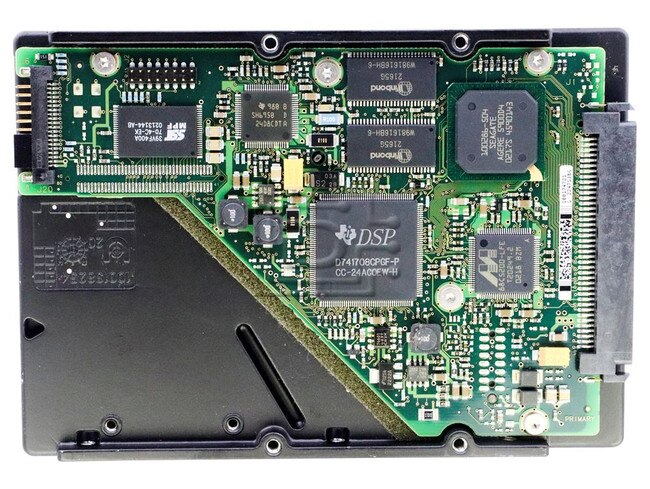

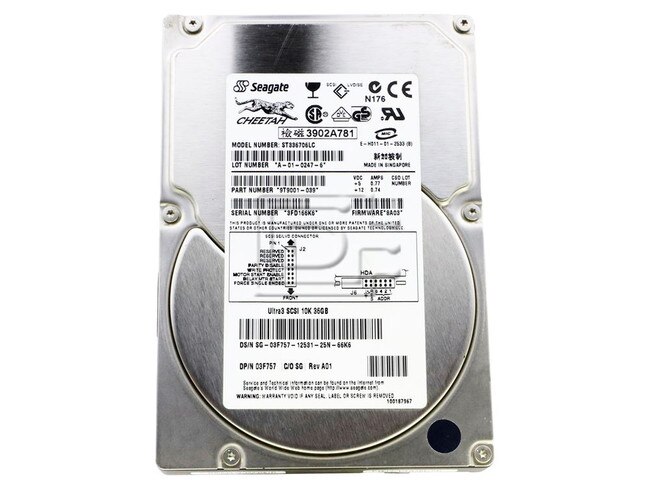

Seagate ST336706LC SCSI Hard Drive

Seagate Part #/MPN: ST336706LC

DiscTech Item #: SGT-ST336706LC-RF-OE

  • Special Order - Ships in 5-10 business days
    Special Order - Ships in 5-10 business days

    This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.


Enterprise Grade

Capacity: 36GB

Speed: 10,000RPM

Interface Types: SCSI 80pin SCA-2 Hot-Swap

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 52 to 68

Average Seek Time: 2.99

Electrical Interface: SCSI LVD U160 - 160MBps 16-bit

On-Board Cache: 4MB

Seagate Cheetah 36ES 36GB 10K U160 80pin SCA-2 SCSI Hard Drive ST336706LC - Refurbished

Cheetah 36ES drives combine giant magnetoresistive (GMR) heads, partial response/maximum likelihood (PRML) read channel electronics, embedded servo technology, and a wide SCSI Ultra160 interface to provide high performance, high capacity data storage for a variety of systems including engineering workstations, network servers, mainframes, and supercomputers.

    The Cheetah 36ES family has the following standard features:
    • Integrated Ultra160 SCSI controller
    • Multimode SCSI drivers and receivers—single-ended (SE) and low voltage differential (LVD)
    • 16 bit I/O data bus
    • Asynchronous and synchronous data transfer protocol
    • Firmware downloadable via SCSI interface
    • Selectable even byte sector sizes from 512 to 4,096 bytes/sector
    • Programmable sector reallocation scheme
    • Flawed sector reallocation at format time
    • Programmable auto write and read reallocation
    • Reallocation of defects on command (post format)
    • Enhanced ECC maximum burst correction length of 240 bits with a guaranteed burst correction length of
    233 bits
    • Sealed head and disc assembly
    • No preventative maintenance or adjustment required
    • Dedicated head landing zone
    • Embedded servo design
    • Self diagnostics performed when power is applied to the drive
    • 1:1 Interleave
    • Zoned bit recording (ZBR)
    • Vertical, horizontal, or top down mounting
    • Dynamic spindle brake
    • 4,096 kbyte data buffer
    • Hot plug compatibility (Section lists proper host connector needed) for LC model drives
    • Drive Self Test (DST)
UNFORMATTED CAPACITY (GB) ________________
FORMATTED CAPACITY (GB) __________________36.7
AVERAGE SECTORS PER TRACK ________________681 rounded down
ACTUATOR TYPE ____________________________ROTARY VOICE COIL
TRACKS ___________________________________105,208
CYLINDERS ________________________________26,302 user
HEADS ______PHYSICAL______________________4
DISCS (3.5 in) ___________________________2
MEDIA TYPE _______________________________THIN FILM/GMR
RECORDING METHOD _________________________PRML 16/17 EPR4
INTERNAL TRANSFER RATE (mbits/sec)________530 to 674
EXTERNAL TRANSFER RATE (mbyte/sec) _______40 Sync
Low Voltage Differential(LVD) _______80/160 Sync
SPINDLE SPEED (RPM) ______________________10,028
AVERAGE LATENCY (mSEC) ___________________2.99
BUFFER ___________________________________4MB
Read Look-Ahead, Adaptive, Multi-Segmented Cache
INTERFACE ________________________________Ultra SCSI Wide
Low Voltage Differential __________Ultra3-SCSI Wide
ASA II, SCAM level 2 (1 default)
BYTES PER TRACK __________________________348,900 avg
SECTORS PER DRIVE ________________________71,687,369
TPI (TRACKS PER INCH) ____________________38,000

BPI (PEAK KBITS PER INCH) ________________460
AVERAGE ACCESS (ms read/write)____________5.2/6.2
Drive level without controller overhead
SINGLE TRACK SEEK (ms read/write) ________0.5/0.9
MAX FULL SEEK (ms read/write) ____________10.0/11.0
MTBF (power-on hours) ____________________1,200,000
SHOCK (G's, 11/2/.5 ms):
operating (Read/Write) __________15
abnormal ________________________40
nonoperating ____________________/250/150
ACOUSTICS (Bels typical) ________Idle ____3.2
Max ____
POWER DISSIPATION (watts/BTUs) Active ____/
Idle ______12.4/42.31
+12V TYPICAL (amps) __0.70 idle
+5V START-UP (amps) __1.00
+5V TYPICAL (amps) ___0.80 idle
IDLE (watts) _________
Height (inches/mm): 1.00/25.4
Width (inches/mm): 4.00/101.6
Depth (inches/mm): 5.75/146.05
Weight (lbs/kg): 1.76/0.798

Click here to view the manufacturer's item description/brochure

Weight: 1.8 lb

Warranty: 1 Year DiscTech


Condition Levels Explained

These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
