Seagate Part #/MPN: ST3500630AS
DiscTech Item #: SGT-ST3500630AS-BN-5Y
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:5 Year ManufacturerProduct Warranties Explained
The product has a manufacturer warranty for the time period specified.
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Capacity: 500GB
Speed: 7,200RPM
Interface Types: SATA
Form Factor: 3.5inx1.0in LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: 73
Average Seek Time: 4.16
Electrical Interface: SATA 300 - 3.0Gbps
On-Board Cache: 16MB

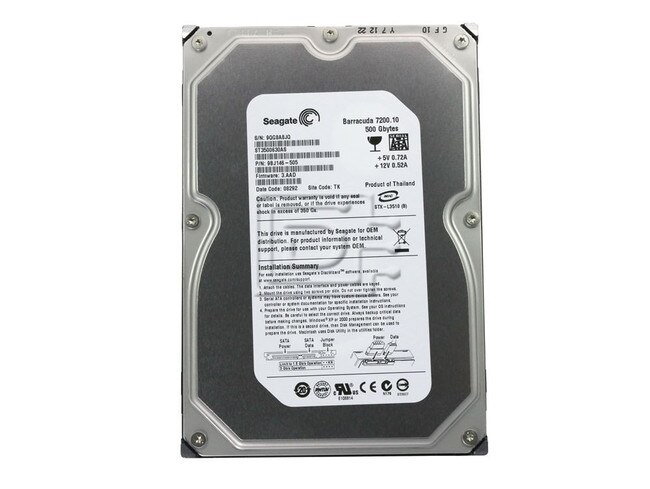

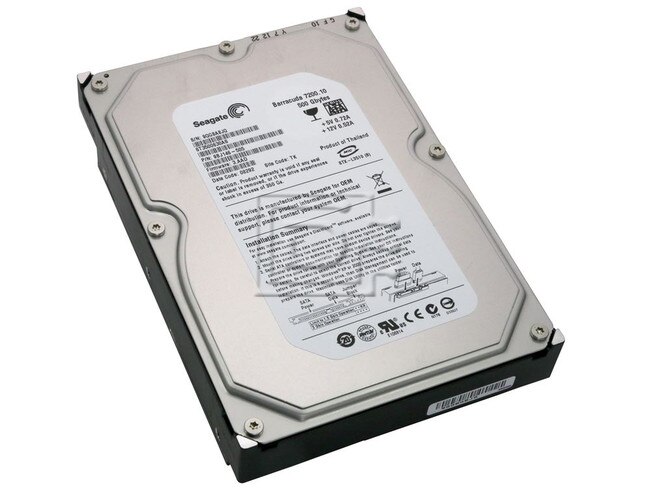

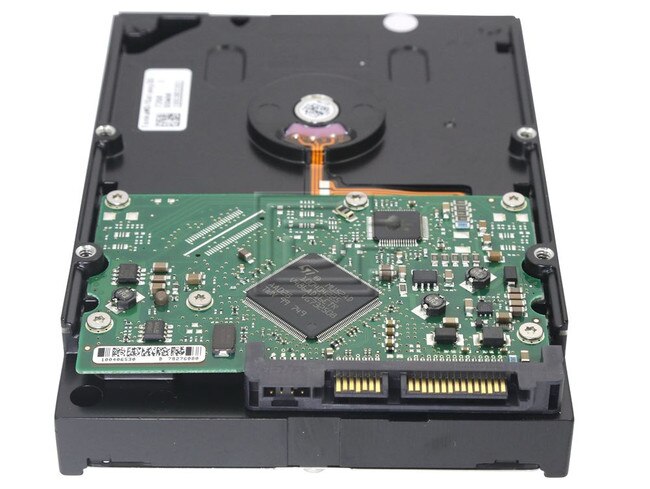

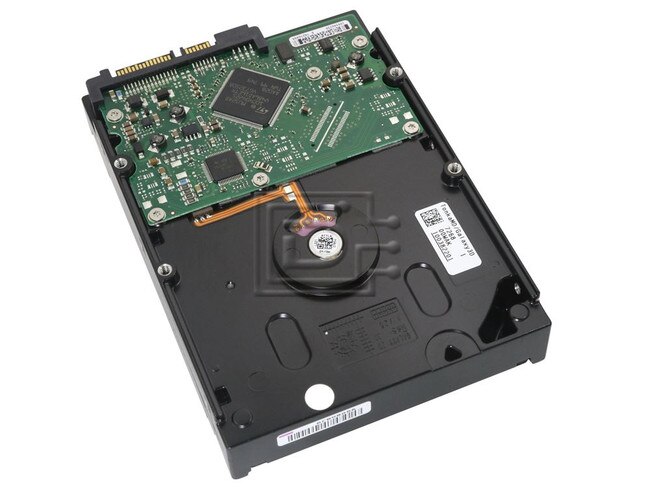

Seagate Barracuda 7200.10 500GB 7.2K SATA Hard Drive - Brand New
The Seagate Barracuda 7200.10 desktop hard drive features innovative perpendicular recording technology and is the first drive on the market to provide capacities up to 750 GB. Barracuda 7200.10 hard drives deliver superb performance, efficiency, speed and durability for all your application needs.
Specifications | 500 GB |
Model Number | ST3500630AS |
Interface | SATA 3.0Gb/s |
PHYSICAL | |
Height (max) | 26.1 mm (1.028 inches) |
Width (max) | 101.6 mm (4.010 inches) |
Length (max) | 146.99 mm (5.787 inches) |
Weight (typical) | 635 grams (1.40 pounds) |
Cache | 16 MBytes |
Capacity | 500 GB |
Guaranteed Sectors | 625,142,448 |
PERFORMANCE |
|
Spindle Speed | 7200 rpm |
Native Command Queuing | Y |
Average latency | 4.16 msec |
Random read seek time | <8.5 msec |
Random write seek time | <10.0 msec |
Maximum interface transfer rate
| 300 Mbytes/sec |
Internal data transfer rate | 1,030 Mbits/sec max |
Sustained data transfer rate OD (read) | 72 MB/sec max |
RELIABILITY |
|
Annual Failure Rate | 0.34% |
Unrecoverable read errors | 1 in 1014 |
Average idle current | 9.30 watts |
Average seek power | 12.60 watts |
Standby power | 0.80 watts |
Sleep power | 0.807 watts |
Maximum start current, DC
| 2.80 amps |
ENVIRONMENT |
|
Temperature |
|
Ambient operating temperature (min) | 0 degrees C |
Ambient operating temperature (max) | 60 degrees C |
Ambient nonoperating temperature (min) | -40 degrees C |
Ambient nonoperating temperature (max) | 70 degrees C |
Maximum operating temperature change | 20 degrees C per hour |
Maximum nonoperating temperature change | 30 degrees C per hour |
Maximum operating case temperature
| 69 degrees C |
HUMIDITY |
|
Minimum Relative humidity (operating) | 5% |
Maximum Relative humidity (operating) | 90% |
Minimum Relative humidity (nonoperating) | 5% |
Maximum Relative humidity (nonoperating) | 95% |
Maximum allowable humidity change
| 30 % per hour |
ALTITUDE |
|
Operating altitude (min) | -60.96 meters |
Operating altitude (min) | -200 feet |
Operating altitude (max) | 3,048 meters |
Operating altitude (max) | 10,000 feet |
Nonoperating altitude (min) | -60.96 meters |
Nonoperating altitude (min) | -200 feet |
Nonoperating altitude (max) | 12,192 meters |
Nonoperating altitude (max)
| 40,000 feet |
VIBRATION |
|
Operating Shock (max) | 68 Gs |
Operating shock | 2 msec |
Nonoperating Shock (max) | 350 Gs |
Nonoperating shock | 2 msec |
Operating vibration | 0.25 Gs |
Operating vibration | 5-22 Hz |
Operating vibration | 0.50 Gs |
Operating vibration | 22-350 Hz |
Operating vibration | 0.25 Gs |
Operating vibration | 350-500 Hz |
Nonoperating vibration | 0.25 Gs |
Nonoperating vibration | 5-22 Hz |
Nonoperating vibration | 5.0 Gs |
Nonoperating vibration | 22-350 Hz |
Nonoperating vibration | 1.0 Gs |
Nonoperating vibration
| 350-500 Hz |
ACOUSTICS |
|
Acoustics (Idle Volume) | 2.5 bels |
Acoustics (Seek Volume) | 3.0 bels |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Weight: 1.8 lb
Warranty: 5 Year Manufacturer
Brand New
The product is brand new.
5 Year Manufacturer Warranty
The product has a manufacturer warranty for the time period specified.
