Seagate Part #/MPN: ST8000NM0055
DiscTech Item #: SGT-ST8000NM012A-BN-OE-DEL
- Brand New
- Warranty:1 Year DiscTech
- In Stock:33Need more?
Enterprise Grade
Capacity: 8TB
Speed: 7.2K RPM
Interface Types: SATA
Form Factor: 3.5" LFF Hard Drive
Sector Size: 512 / 512e
Sustained Throughput: up to 237
Average Seek Time: 4.16
Electrical Interface: SATA 600 - 6Gbps
On-Board Cache: 256MB

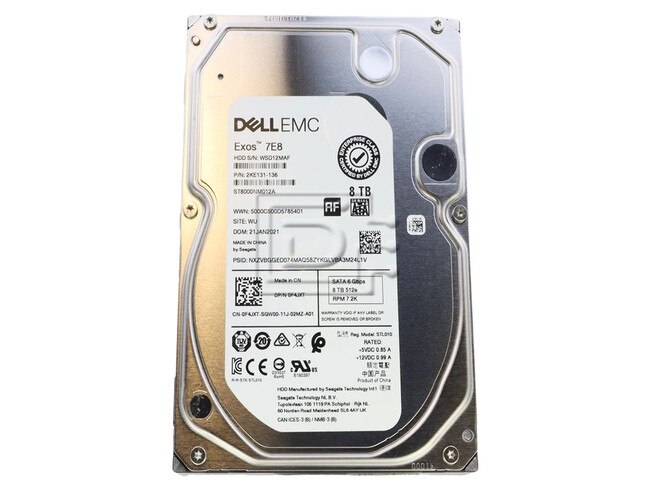

Dell Enterprise 0F4JXT / Seagate ST8000NM012A 8TB 3.5" 6Gbps 7.2K RPM 512E SATA HDD – Brand New OEM
Dell Enterprise 0F4JXT / Seagate ST8000NM012A 8TB 3.5" 6Gbps 7.2K RPM 512E SATA HDD – Brand New OEM
Capacity-Optimized Enterprise Hard Drive for Bulk-Data Applications
- 8TB, 3.5-inch enterprise drive with industry-leading 6-disk technology,¹ resulting in 33% more storage in the same storage slot
- Advanced Write Caching feature to utilize enhanced algorithms, resulting in the industry’s highest nearline storage workload performance efficiencies—100% performance improvement in random writes over last-generation drive
- Widely accepted, proven ninth-generation conventional perpendicular recording technology for reliable access to unstructured data in bulk storage applications
- SATA 6Gb/s interfaces in industry-standard advanced formats for easy integration into replicated and RAID multi-drive storage servers and systems
- Industry-leading rotational vibration tolerance design helps ensure consistent performance in dense multi-drive systems
- Engineered for 24×7 workloads of 550TB/yr—10× that of desktop drives
- Robust performance with dual processors, ramp load technology, top-cover attached motor and humidity sensor for optimum performance in all chassis
- Seagate SeaTools™ diagnostic software to provide drive self-tests ensuring unnecessary downtime and maximizing TCO
Best-Fit Applications
- Hyperscale applications/cloud data centers with replicated storage
- Massive scale-out data centers and big data analytics
- High-capacity density RAID storage
- Mainstream enterprise external storage arrays (SAN, NAS, DAS)
- Distributed file systems, including Hadoop and Ceph
- Enterprise backup and restore—D2D, virtual tape
- Centralized surveillance
Compatibility:
This drive is compatible with any server that accepts 3.5in x 1.0in (LFF) SATA drives.
| Product Specifications | |
|---|---|
| Features | |
| Reliability/Data Integrity | |
| Performance | |
| Power Consumption | |
| Environmental | |
| Physical | |
| Model Number (512 Emulation) | ST8000NM012A |
| Interface Options | SATA 6Gb/s |
| Capacity | 8TB/8000GB |
| Protection Information (T10 DIF) | -------- |
| Humidity Sensor | Yes |
| Super Parity | Yes |
| Low Halogen | Yes |
| PowerChoice Technology | Yes |
| Power Balance Technology | Yes |
| Cache, Multisegmented (MB) | 256 |
| Advanced Write Caching (2M Internal NOR Flash) | Yes |
| Mean Time Between Failures (MTBF, hours) | 2.0M |
| Reliability Rating @ Full 24x7 Operation (AFR) | 0.44% |
| Nonrecoverable Read Errors per Bits Read | 1 sector per 10E15 |
| Power-On Hours per Year | 8760 (24x7) |
| Sector Size (Bytes per Logical Sector) | 512/4096 |
| Spindle Speed (RPM) | 7200 |
| Interface Access Speed (Gb/s) | 6.0, 3.0, 1.5 |
| Max. Sustained Transfer Rate OD (MB/s) | up to 237 |
| Average Latency (ms) | 4.16 |
| Interface Ports | Single |
| Rotation Vibration @ 1500 Hz (rad/s) | 12.5 |
| Idle Power, Average (W) | 9 |
| Typical Operating, Random Read (W) | <10 |
| Power Supply Requirements | +12V and +5V |
| Temperature, Operating (°C) | 5 to 60 |
| Vibration, Nonoperating: 10Hz to 500Hz (Grms) | 5.0 |
| Shock, Operating, 2ms (Read/Write)(Gs) | 70/40 |
| Shock, Nonoperating, 1ms and 2ms (Gs) | 300 |
| Height (in/mm, max) | 1.028/26.1 |
| Width (in/mm, max) | 4.010/101.85 |
| Depth (in/mm, max) | 5.878/147 |
| Weight (g/lb) | 780/1.720 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: F4JXT 0F4JXT
Weight: 1.8 lb
Warranty: 1 Year DiscTech
Brand New
1 Year DiscTech Warranty
