Xyratex Storage Array RS-4835 48 Bays

(0) No Reviews Yet

Xyratex Part #/MPN: RS-4835

DiscTech Item #: XYR-RS-4835-RF-OE


Capacity: 24TB

Interface Types: SATA, Fibre Channel - External HSSDC DB9

Form Factor: 3.5inx1.0in LFF Hard Drive

Electrical Interface: FC-AL - 4Gbps

On-Board Cache: 2GB

Bays/Ports/Slots: 48

U Height: 4U

Xyratex Storage Array RS-4835 - FC Attached SATA RAID Storage Array 48 Bays - Refurbished

Xyratex Storage Array RS-4835

Fueled by radical advances in digital video production, medical screening, CCTV surveillance,

disk-to-disk backup and new requirements for securities compliance, the explosion in digital

content creation continues unabated. The sheer volume and wide range of digital information

present a unique challenge for the storage manager, requiring solutions that deliver low cost

and power efficient, high-performance storage across the enterprise.

Realize Value from Storage 24/7 - Xyratex RAID Solutions

OEMs and solution integrators now require ever more sophisticated systems and

solutions capable of managing and maintaining this vast amount of business critical

data. They are also under considerable pressure to address four key challenges: shorten

time to market; reduce test, integration, warranty and service costs; increase reliability;

and bolster customer satisfaction.

Xyratex RAID solutions reduce development costs, feature enterprise-class RAID

functionality including RAID-6 and Snapshot, support high availability, dual controller

configuration support and are highly reliable.

Redefining Flexibility and Availability – Xyratex F5404E

The Xyratex F5404E was engineered to address these demands, combining 4Gb Fibre

Channel (FC) RAID connectivity with Serial ATA II (SATA) disk drives, and Serial Attached

SCSI (SAS) expansion technology, offering affordable RAID data storage and high

performance capabilities.

The Xyratex F5404E sets a new standard in the design of mass storage enclosures to

provide OEMs with unsurpassed disk storage capacity in a single enclosure. Housing 48

SATA drives in 4U of rack space, the F5404E can store 48TB of data in a single unit. With

a combination of high performance controllers and high-density packaging, the fully HA

design of the F5404E increases the flexibility of storage deployment to the end user.

The Xyratex F5404E provides the bandwidth needs for disk-to-disk backup, archive and

other storage intensive applications, while leveraging SAS full duplex, point-to-point

architecture with dedicated connections for maximum data throughput. There is also

no single point of failure, with two RAID controllers per chassis and host-based dynamic

multi-pathing to maintain continuous access to application data. Meanwhile, the F5404E

has the lowest power consumption (50 percent more TB/KW), and highest density (33

percent more TB/ft2) of any nearline storage RAID system on the market.

Fully populated with 48 500GB 7.2K SATA Hard Drives. (24TB Total)

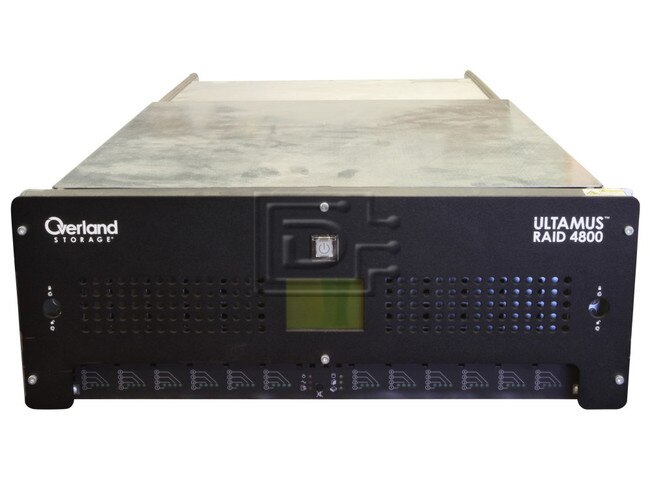

Alt Model No:  F5404E / Overland Ultamus RAID 4800

General Information:

Product Code: RS-4835-F4-5404E

External Interface 4Gb FC, point-to-point, loop and fabric

(switched) topologies

Supported Operating


Windows 2003 (IA32, EM64T); RedHat Linux

AS3/AS4 (IA32, EM64T); SuSE Linux 9/10

(IA32, EM64T)

Supported Hosts 256, 512 LUNs, LUN Masking, >2TB LUNs

Total Capacity per Unit 48TB

Expansion Chassis RS-4835-E3-XPN (1 max), SAS connected,

single and dual IO Module configurations

Total Expansion


96TB, 1G Cache per controller (selectable

by volume – read, adaptive read-ahead, write

through, write-back), battery backup

Disk Drives

Interface Types SATA-II (3GB), NCQ, dedicated bandwidth to

each drive

Max Drives per


48, 512 Logical Drives/system, automatic bad

sector assignment

RAID Controllers

No. RAID Controllers 2 (dual – HA)

RAID Levels


Up to 96 disk arrays with independent RAID

level 0, 1, 5, 6, 10, & 50 support, selectable strip

sizes (64, 128 & 256K), partial strip read/write

RAID Protection


Background initialization, background parity

checking and automatic drive rebuild with

redundant RAID arrays

System Management

Software StorView, StorView Global, StorView Path Manager

Interfaces Supported Ethernet (out-of-band), FC host based (in-band)

System Availability

Hot Swappable


PSU/cooling modules, disk drives, RAID


Additional Reliability


StorView Path Manager for Windows and

Linux - host based dynamic multi-path failover

Click here to view the manufacturer's item description/brochure

Alternate MPNs: 4800 77088-05 F5404E

Weight: 80 lb

Warranty: 1 Year DiscTech
