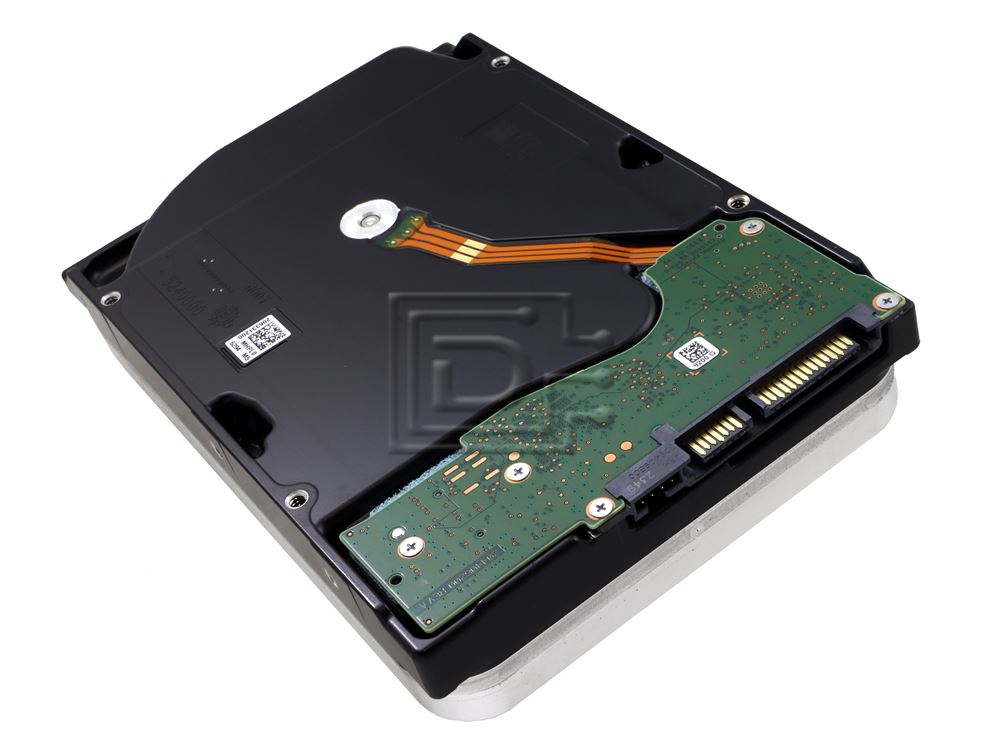

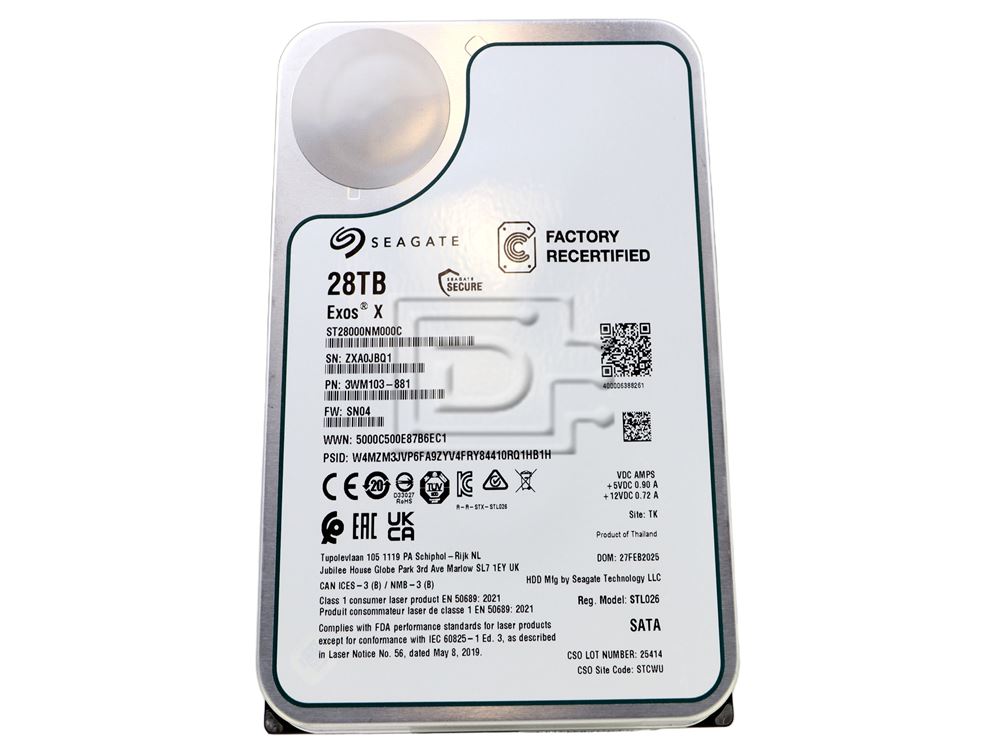

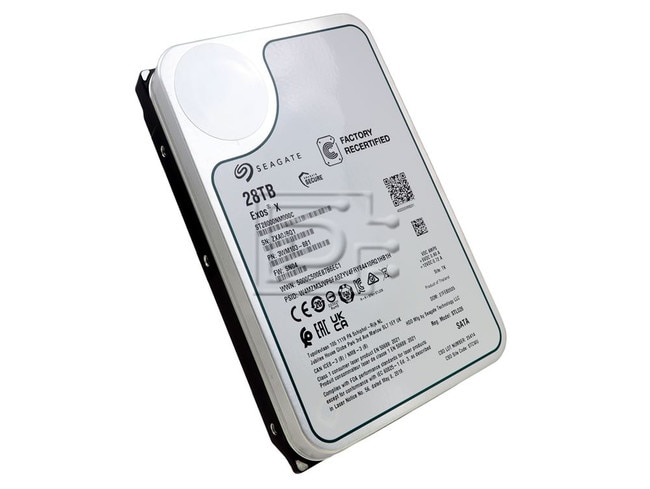

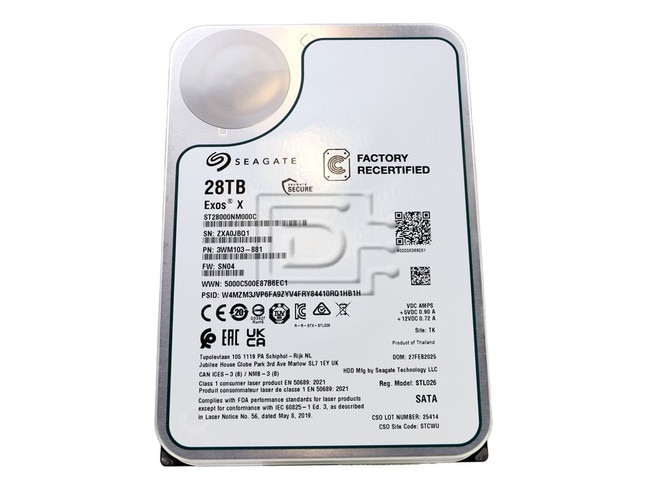

Seagate 28TB SATA Exos ST28000NM000C 3.5" LFF 6Gbps 7.2K Enterprise 512e HDD
- Factory RefurbishedCondition Levels Explained
The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.
Product Warranties ExplainedThe product has a manufacturer warranty for the time period specified.
- In Stock:100Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
- 6 Month DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 28TB |
| Speed: | 7.2K RPM |
| Interface Types: | SATA |
| Form Factor: | 3.5" LFF Hard Drive |
| Electrical Interface: | SATA 600 - 6Gbps |
| RAM: | 256MB |
Description
Seagate Exos ST28000NM000C 28TB SATA 3.5inch LFF 6Gbps 7.2K Enterprise 512e HDD - Factory Recertified
Seagate Exos ST28000NM000C / 28TB / 28,000GB 3.5" LFF / Large Form Factor 6.0 Gb/s 7.2K / 7,200 RPM Enterprise 512e Fast Format SATA / Serial ATA HDD / Hard Disk Drive - Factory Recertified
Seagate Exos® Enterprise Hard Drives
Seagate manufactures hard drives that specifically address the demand for hyperscale cloud scalability. The Exos® enterprise hard drives are the highest-capacity hard drives in the fleet.
- Maximum Storage Capacity for Highest Rack Space Efficiency: Market-leading HDD offering the highest capacity available for more petabytes per rack.
- Highly reliable performance making it the logical choice for cloud data center and massive scale-out data center applications.
- Hyperscale SATA model tuned for large data transfers and low latency.
- PowerBalance™ feature optimizes Watts/TB.
- Maximize total cost of ownership savings through lower power and weight with helium sealed-drive design.
- Proven helium side-sealing weld technology for added handling robustness and leak protection.
- Digital environmental sensors to monitor internal drive conditions for optimal operation and performance.
- Data protection and security—Seagate Secure™ features for safe, affordable, fast, and easy drive retirement.
- Proven enterprise-class reliability backed by 6-month limited warranty and 2.5M-hr MTBF rating.
Best-Fit Applications
- Scalable hyperscale applications/cloud data centers
- Massive scale-out data centers
- Big data applications
- High-capacity density RAID storage
- Mainstream enterprise external storage arrays
- Distributed file systems, including Hadoop and Ceph
- Enterprise backup and restore—D2D, virtual tape
Compatibility
Compatible with systems that support 28TB 3.5" SATA HDDS
Specifications
| Specification | SATA 6Gb/s |
|---|---|
| Product Name | Exos |
| CMR Capacity | 28TB |
| Standard Model (512E)1 | ST28000NM000C |
| CMR | Yes |
| Helium Sealed-Drive Design | Yes |
| Super Parity | Yes |
| Low Halogen | Yes |
| PowerChoice™ Idle Power Technology | Yes |
| PowerBalance™ Power/Performance Technology | Yes |
| Hot-Plug Support2 | Yes |
| Cache, Multisegmented (MB) | 512 |
| Organic Solderability Preservative | Yes |
| RSA 3072 Firmware Verification (SD&D) | Yes |
| Mean Time Between Failures (MTBF, hours) | 2,500,000 hr |
| Reliability Rating @ Full 24×7 Operation (AFR) | 0.35% |
| Nonrecoverable Read Errors per Bits Read | 1 sector per 1015 |
| Power-On Hours per Year (24×7) | 8760 |
| 512e Sector Size (Bytes per Sector) | 512e |
| Limited Warranty (months) | 6 months |
| Spindle Speed (RPM) | 7200 |
| Interface Access Speed (Gb/s) | 6.0, 3.0 |
| Max. Sustained Transfer Rate OD (MB/s, MiB/s) | 190MB/s / 181MiB/s |
| Random Read/Write 4K QD16 WCD (IOPS) | 170 / 320 |
| Average Latency (ms) | 4.16 |
| Interface Ports | Single |
| Rotation Vibration @ 20-1500 Hz (rad/sec²) | 12.5 |
| Idle A (W) Average | 6.7W |
| Max Operating, Random Read 4K/16Q (W) | 10.5W |
| Power Supply Requirements | +12V and +5V |
| Temperature, Operating (°C) - drive reported | 10C - 60C |
| Vibration, Nonoperating: 2 to 500Hz (Grms) | 2.27 |
| Shock, Operating 2ms (Read/Write) (Gs) | 30Gs |
| Shock, Nonoperating 2ms (Gs) | 200 |
| Height (mm/in, max) | 26.1mm / 1.028in |
| Width (mm/in, max) | 101.85mm / 4.010in |
| Depth (mm/in, max) | 147.0mm / 5.787in |
| Weight (gm/lb) | 695g / 1.532lb |
| Carton Unit Quantity | 20 |
| Cartons per Pallet / Cartons per Layer | 40 / 8 |
Click here to view the manufacturer's item description/brochure
Weight: 1.8 lb
Warranty: 6 Month DiscTech
Condition
Factory Refurbished
Warranty
6 Month DiscTech Warranty
