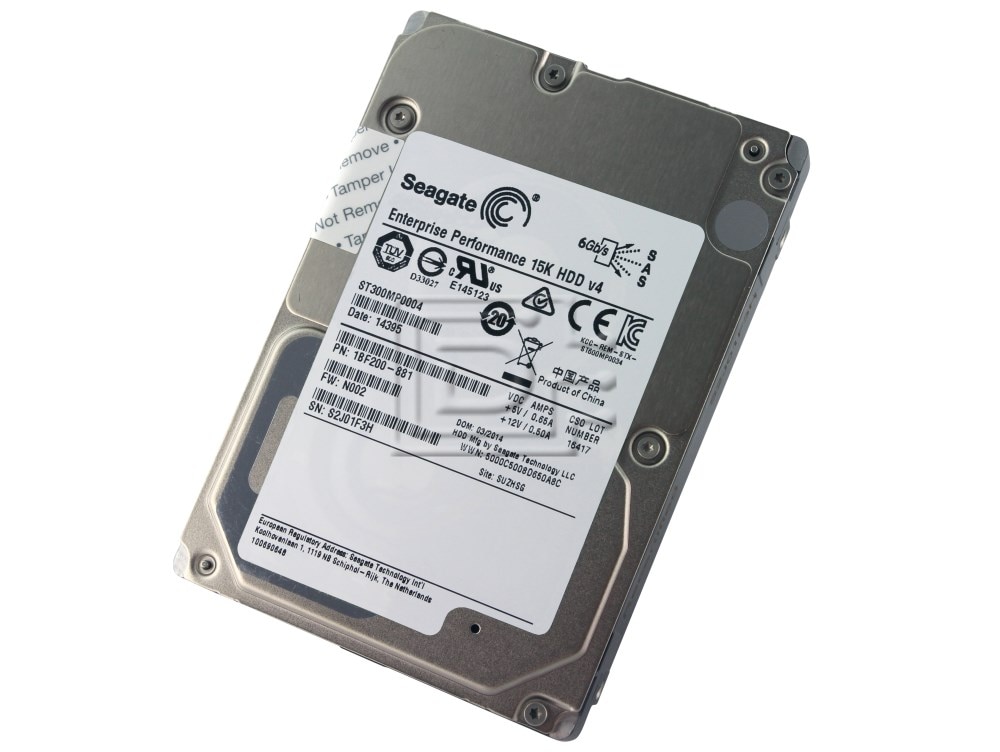

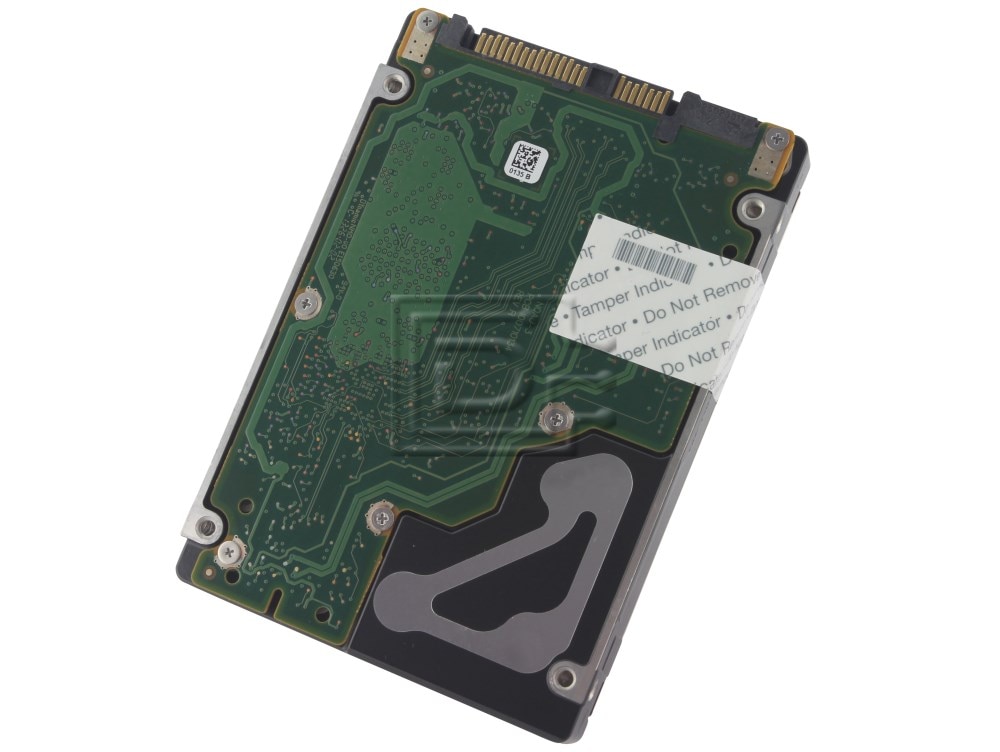

Seagate ST300MP0004 300GB SAS Hard Drive
- Special Order - Ships in 5-10 business daysSpecial Order - Ships in 5-10 business days
This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.
- 1 Year DiscTechWarrantyProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
| Capacity: | 300GB |
| Speed: | 15K RPM |
| Interface Types: | SAS |
| Form Factor: | 2.5" SFF Server Drive |
| Electrical Interface: | SAS-2 6Gbps |
| RAM: | 128MB |
Description
Seagate ST300MP0004 300GB 2.5-in SFF 6Gb/s 15,000 RPM 512 Native Enterprise SAS / Serial Attached SCSI Hard Disk Drive - Factory Refurbished
Alt MPN: 1BF200-931, 1BF200-881
Enterprise Performance 15K HDD
High-Performing, Up to 600GB, Small Form Factor 15K Hard Drive
- Stores twice the amount of Tier 1 data over previous generation without increasing drive count
- Enables Tier 1 applications to process transactions more quickly to help increase revenue generation and improve customer satisfaction
- Best-in-class idle power (nearly 2W lower than competitive offerings) for more efficient storage operations
- Industry’s highest MTBF at 2.0M hours
- Up to 24% sequential data read-write (SDR) performance improvement over competitive 15K offerings
- Provides up to 21% improvement in SDR performance over prior generation
- Delivers up to 3% faster random read and up to 4% faster random write performance vs. prior generation
- SAS-based Protection Information (PI) helps protect against inadvertent data change.
- Self-Encrypting Drive (SED) option (AES-256) helps cut IT drive retirement costs while helping securely protect data where it lives—on the drive.
- SED models can be used as standard drives, as ISE feature for easy drive disposal or as part of a more secure solution.
- FIPS Self-Encrypting Drive option helps protect Sensitive but Unclassified and Protected class data.
Best-Fit Applications
- High-performance Tier 1 enterprise servers
- Blade, rack and tower servers hosting transaction-based applications
- Power- and space-constrained data centers
- Compliance and data security initiatives
Compatibility
This drive is compatible with any server that accepts 2.5in x 15mm (SFF) SAS drives.
Specifications
| Enterprise Performance 15K HDD | |
|---|---|
| Standard Model Numbers | ST300MP0004 |
| Alt Model Numbers | 1BF200-931 |
| Product Specifications | |
| Capacity | 300GB |
| Interface | 6Gb/s SAS |
| External Transfer Rate (MB/s) | 600 |
| Formatted 512 Bytes/Sector (GB) | 300 |
| Performance | |
| Spindle Speed (RPM) | 15K |
| Average Latency (ms) | 2.0 |
| Sustained Transfer Rate, Outer to Inner Diameter (MB/s) | 168 to 228 |
| Cache, Multisegmented (MB) | 128 |
| Configuration/Reliability | |
| Disk/Heads | 2/4 |
| Nonrecoverable Read Errors per Bits Read | 1 per 10E16 |
| Annualized Failure Rate (AFR) | 0.44% |
| Power Management | |
| Typical Op (A) +5V/+12V | 0.42/0.46 |
| Average Operating Power (W) | 7.6 |
| Average Idle Power (W) | 5.4 |
| Environmental | |
| Ambient Temperature, Operating (C° | 5 to 55 |
| Ambient Temperature, Nonoperating (C°) | -40 to 70 |
| Max Temperature Change per Hour, Operating (C°) | 20 |
| Max Temperature Change per Hour, Nonoperating (C°) | 20 |
| Relative Humidity, Noncondensing (max gradient 20%/hour) | 5% to 95% |
| Shock, Max Operating: 11ms (Gs) | 40 |
| Shock, Max Nonoperating: 2ms (Gs) | 400 |
| Vibration, Operating: <400Hz (Gs) | 0.5 |
| Vibration, Nonoperating: <500Hz (Gs) | 2.4 |
| Physical | |
| Height (in/mm, max) | 0.591/15.00 |
| Width (in/mm, max) | 2.750/69.85 |
| Depth (in/mm, max) | 3.955/100.45 |
| Weight (lb/kg) | 0.496/0.225 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 1BF200-931 1BF200-881
Weight: 1 lb
Warranty: 1 Year DiscTech
Condition
The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.
The product has a manufacturer warranty for the time period specified.
Warranty
1 Year DiscTech Warranty
