Seagate Part #/MPN: ST9300453SS
DiscTech Item #: SGT-ST9300453SS-BN-OE-DEL
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 300GB
Speed: 15,000RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Encryption/SED Supported
Sector Size: 512 / 512e
Sustained Throughput: 202 to 151
Average Seek Time: 2.6/3.1
Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps
On-Board Cache: 64KB

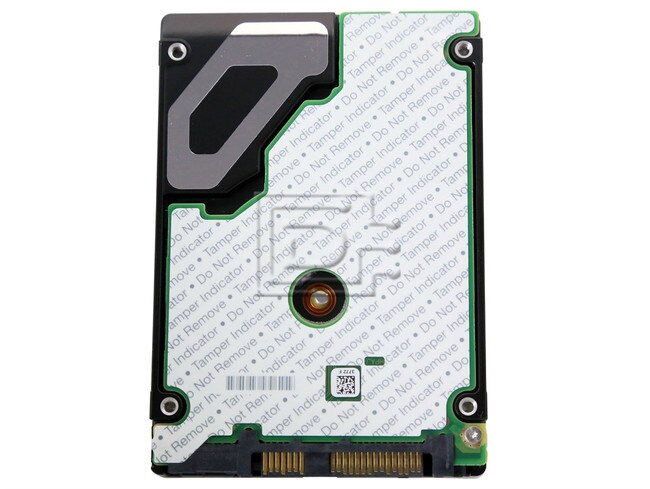

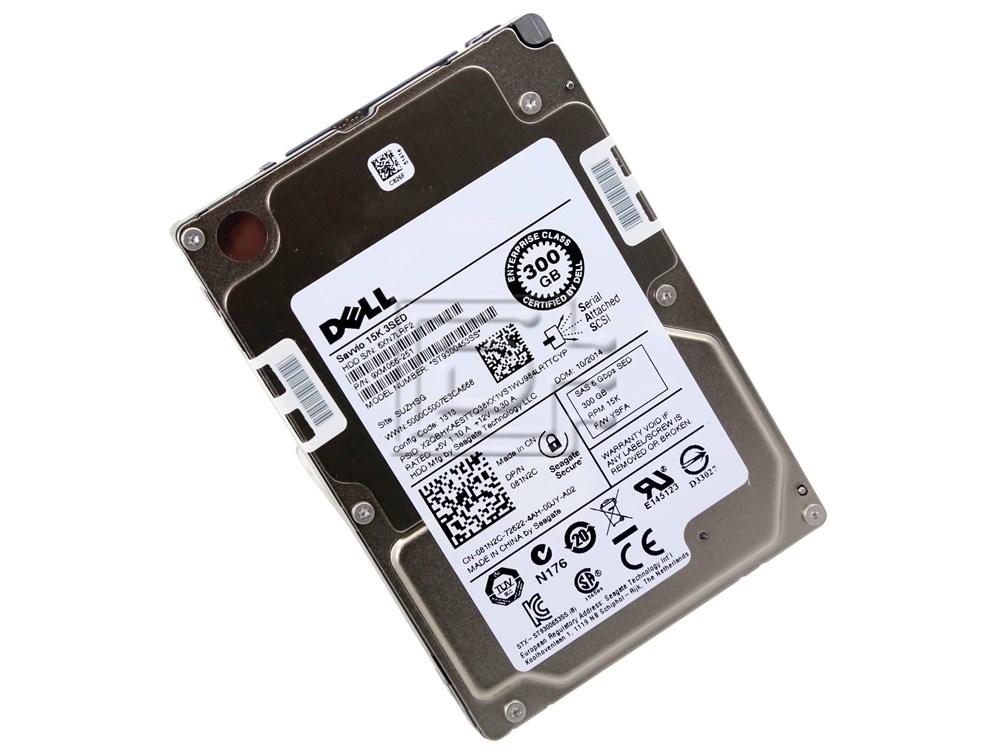

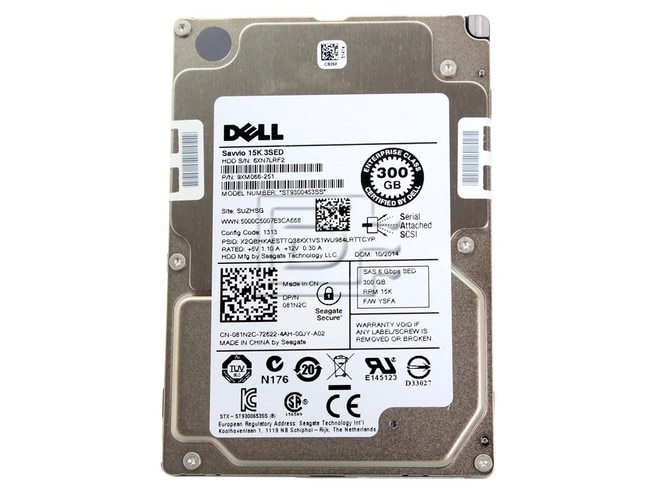

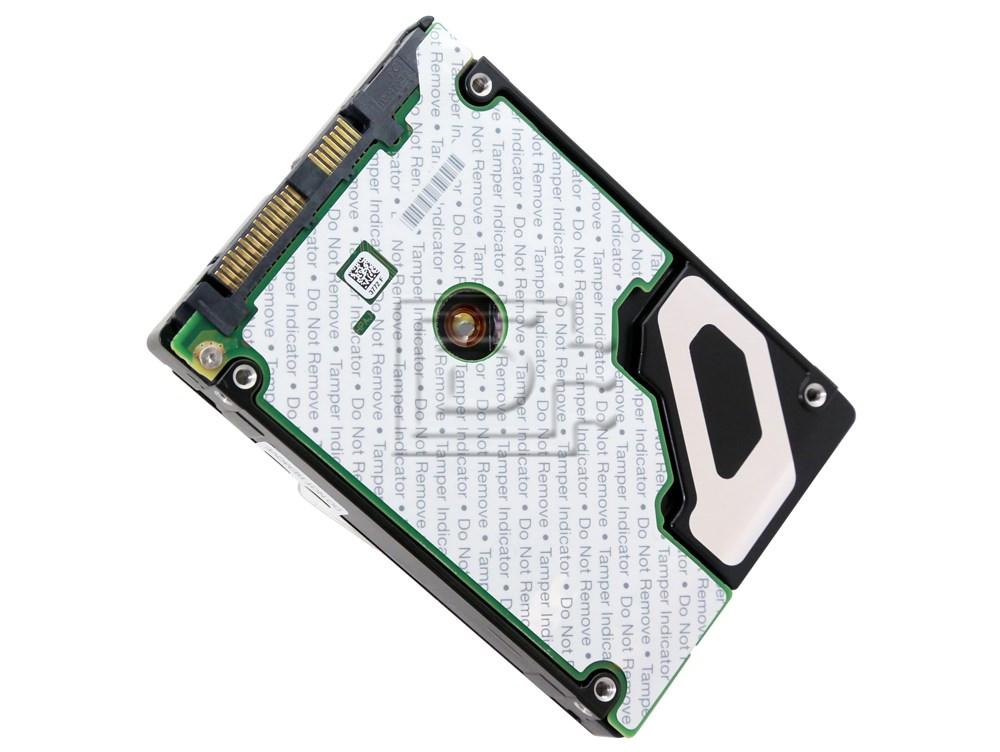

Seagate Savvio 15K.3 ST9300453SS / Dell 81N2C 300GB 2.5in 6Gbps 15K RPM SAS SED FIPS 140-2 Hard Drive - Brand New OEM
Seagate Savvio 15K.3 ST9300453SS / Dell 81N2C / 081N2C 300GB 2.5" 6Gb/s 15,000 RPM Serial Attached SCSI Self-Encrypting SED FIPS 140-2 Hard Disk Drive - Brand New OEM
Savvio® 15K.3
Highest performing small form factor 15K hard drive
Key Advantages
- Stores twice the amount of Tier 1 data without increasing drive count
- Enables Tier 1 applications to process transactions more quickly to drive increase revenue generation and improve customer satsfion.
- Supports 6Gb/s SAS for more robust topologies and higher reliability
- Delivers 20% improved annualised failure rate with field-proven reliability
- Provides up to 21% improvement in sequential data read-write performance over prior generation
- Delivers up to 3% faster random read and up to 4% faster random write performance vs. prior generation
- Reduces system complexity, and OEM design and data centre operating costs
- Self-Encrypting Drive (SED) option (AES-256) cuts IT drive retirement costs while protecting data securely where it lives — on the drive
- Self-Encrypting Drive (SED) option (AES-256) cuts IT drive retirement costs while protecting data securely where it lives — on the drive
Best-fit Application
- High-performance Tier 1 enterprise servers
- Power- and space-constrained data centres
- Compliance and data security initiatives
Improves
The Savvio 15K.3 drive enables Tier 1 applications to read and write both random and sequential data faster. Data centres can store and access important random data up to 10% faster and sequential data up to 21% faster over previous generations, enabling them to process more transactions within a given time period.
Doubles Capacity/br>Providing up to 300GB of capacity, the Seagate® Savvio 15K.3 drive stores twice the amount of data without increasing the total number of hard drives used. This helps data centres to keep up with the growth of data while improving storage efficiency.
Protects Data
The Savvio 15K.3 drive provides Protection Information1 and Self-Encrypting Drive2 options to help companies achieve corporate and/or government security compliance goals. The drive helps protect data from inadvertent change from the moment of creation until the end of life, and Seagate Instant Secure Erase makes drive retirement and repurposing safe, fast and affordable. Meets regulatory data security compliance requirements and is FIPS 140-2 Validated™ to protect data classed as Sensitive but Unclassified and Protected
Reduces Complexity and Cost
The Savvio 15K.3 drive enables OEMs and data centres to standardise on the 2.5 inch small form factor (SFF), the 6Gb/s SAS interface and SED security, which reduce system complexity and minimise design, training and inventory expenses.
Dell Part Number: 81N2C, 081N2C
Compatibility:
This drive is compatible with any server that accepts 2.5in x 15mm (SFF) SAS drives.
| Savvio® 15K.3 | |
|---|---|
| SED FIPS 140-2 Model | ST9300453SS |
| Dell Part Number | 81N2C 081N2C |
| Capacity | 300 GB |
| Interface | 6Gb/s SAS |
| External Transfer Rate (MB/s) | 600 |
| Formatted 512 Bytes/Sector (GB) | 300 |
| Performance | |
| Spindle Speed (RPM) | 15K |
| Average Latency (ms) | 2.0 |
| Seek Time | |
| Average Read/Write(ms) | 2.6/3.1 |
| Track-to-Track Read/Write (ms) | 0.2/0.4 |
| Sustained Transfer Rate | |
| Outer to Inner Diameter (MB/s) | 202 to 151 |
| Cache, Multi-segmented (MB) | 64 |
| Configuration/Reliability | |
| Discs | 2 |
| Heads | 4 |
| Non-recoverable Read Errors per Bits Read | 1 LBA per 10^16 |
| Annualised Failure Rate (AFR) | 0.44% |
| Power Management | |
| Typical Op (A) +12V/+5V | 0.45/0.50 |
| Average Operating Power (W) | 7.92 |
| Average Idling Power (W) | 4.23 |
| Environmental | |
| Ambient Temperature (°C) | |
| Operating | 5 to 55 |
| Non-operating | -40 to 70 |
| Temperature Change per Hour, Operating, Max | 20 |
| Temperature Change per Hour, Non-operating, Max | 20 |
| Shock, 2ms (Gs) | |
| Operating, Max | 60 |
| Non-operating,Max | 300 |
| Vibration | |
| Operating:<400Hz (Gs) | 0.5 |
| Non-operating:<500Hz (Gs) | 2.4 |
| Physical | |
| Height(in/mm, max) | 0.591/15.00 |
| Width(in/mm, max) | 2.760/70.10 |
| Depth(in/mm, max) | 3.955/100.45 |
| Weight (lb/kg) | 0.441/0.200 |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 81N2C 081N2C
Weight: 0.7 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
