Seagate Part #/MPN: ST9300653SS
DiscTech Item #: SGT-ST9300653SS-BN-OE-HPI
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- Low Stock:Call for ETAStock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.
Enterprise Grade
Capacity: 300GB
Speed: 15,000RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Sustained Throughput: 202
Average Seek Time: 2.7 / 3.1
Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps
On-Board Cache: 64MB
Compatible Systems: HP 8th Gen. G8

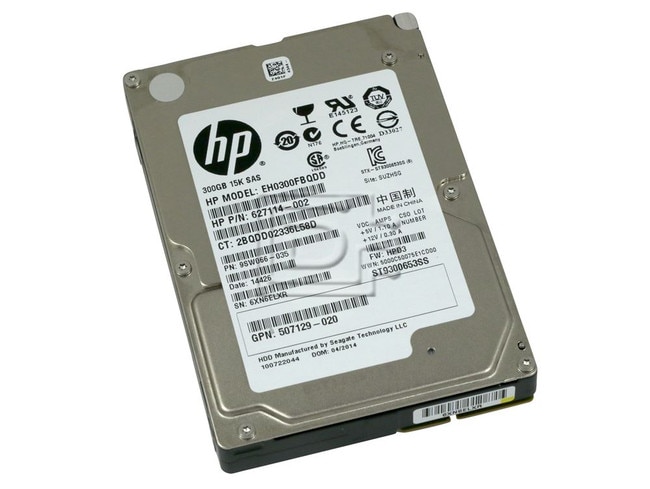

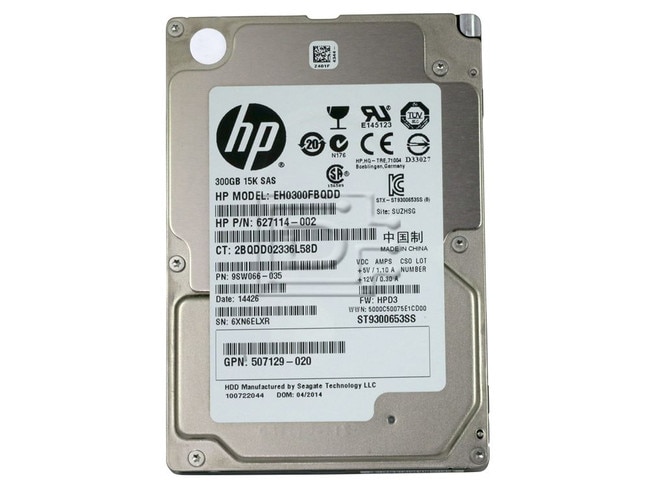

HPE / Hewlett Packard 627114-002 / 507129-020 Seagate Savvio ST9300653SS 15K.3 300GB 15K 6Gbps SFF Serial SCSI / SAS Hard Drive - Brand New OEM
The Seagate Savvio 15K.3 drive enables OEMs to build solutions that help data centers process more transactions within a given time frame and meet IT service level agreements. This helps companies increase revenue generation, improve customer satisfaction and complete critical business processes faster while keeping data safe. It also provides the performance benefits needed to entice customers to migrate from legacy, 3.5-inch drives to higher-performing 2.5-inch drives.
Key Features and Benefits
- Doubles Tier 1 data storage capacity (up to 300 GB)
- Provides up to 21% improvement in sequential data read/write performance over prior generation
- Delivers up to 3% faster random read and up to 4% faster random write performance vs. prior generation, and up to 10% faster random read and up to 8% faster random write performance vs. legacy 3.5-inch 15K drives
- Improves scalability and reliability with 6Gb/s SAS interface support
- Improves reliability by up to 20% with an annualized failure rate (AFR) of 0.44%
- Eases transition from legacy 3.5-inch, 15K drives to next-generation 2.5-in, 15K drives
- Unified Storage architecture minimizes system complexity and reduces operating costs.
HPE PNs: 627114-002 507129-020
Compatibility:
For HPE Proliant G8 servers
Specifications | |
---|---|
Model number | ST9300653SS |
Model Name | Savvio 15K.3 |
Formatted Capacity | 300 Gbytes |
Rotational Speed | 15,000 rpm |
Default Buffer (cache) Size | 64 Mbytes |
Guaranteed Sectors | 585,937,500 |
Areal Density (avg) | 448Gb/in2 |
Performance | |
External (I/O) Transfer Rate (max) | 600 MBytes/sec |
Sustained Transfer Rate | 202 MBytes/sec |
Average Seek Time, Read | 2.7 msec typical |
Average Seek Time, Write | 3.1 msec typical |
Average latency | 2.0 msec typical |
Physical | |
Form Factor(width) | 2.5-inch |
Form Factor(height) | .591-inch |
Height | 15 mm |
Width | 70.10 mm |
Length | 100.45mm |
Weight | 0.200 kg |
Electrical | |
Avg. Idle Power | 4.25W |
Environmental | |
Max Operating Shock (2-msec) | 40 Gs |
Max Nonoperating Shock (2-msec) | 300 Gs |
Operating Vibration (max) | .5 Gs |
Nonoperating Vibration (max) | 2.4 Gs |
Operating Temperature (max) | 55 deg C |
Operating Temperature (min) | 5 deg C |
Nonoperating Temperature (max) | 70 deg C |
Nonoperating Temperature (min) | -40 deg C |
Acoustical | |
Nonrecoverable Read Errors | 1 per 10^16 bits read |
Supports S.M.A.R.T. | Yes |
Click here to view the manufacturer's item description/brochure
Alternate MPNs: 627114-002 507129-020 EH0300FBQDD
Weight: 0.5 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
