Seagate Part #/MPN: ST9300653SS
DiscTech Item #: SGT-ST9300653SS-RF-OE-DEQ
- RefurbishedCondition Levels Explained
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:5Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Enterprise Grade
Capacity: 300GB
Speed: 15,000RPM
Interface Types: SAS Serial Attached SCSI
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Sustained Throughput: 202
Average Seek Time: 2.7 / 3.1
Electrical Interface: SAS-2 Serial Attached SCSI v2 - 6.0Gbps
On-Board Cache: 64MB
Compatible Systems: Dell 10th Gen. 2950 / 6950

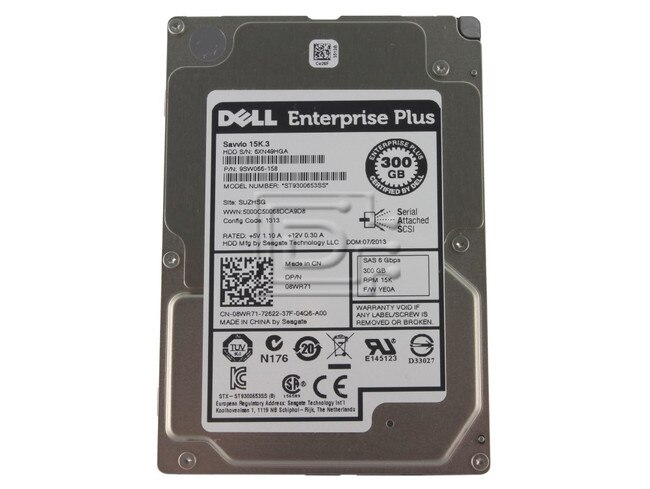

Dell EqualLogic 8WR71 / Seagate Savvio 15K.3 ST9300653SS 300GB 15K 6Gbps SFF SAS HDD - Refurbished OEM
Dell EqualLogic 8WR71 / Seagate Savvio 15K.3 ST9300653SS 300GB 15,000 RPM 6Gb/s 2.5" SFF / Small Form Factor SAS / Serial Attached SCSI HDD / Hard Disk Drive - Refurbished OEM
Alt. MPN: 9SW066-158
Dell Enterprise Plus PNs: 08WR71, 8WR71
Overview
The Seagate Savvio 15K.3 drive enables OEMs to build solutions that help data centers process more transactions within a given time frame and meet IT service level agreements. This helps companies increase revenue generation, improve customer satisfaction and complete critical business processes faster while keeping data safe. It also provides the performance benefits needed to entice customers to migrate from legacy, 3.5-inch drives to higher-performing 2.5-inch drives.
Key Features and Benefits
- Doubles Tier 1 data storage capacity (up to 300 GB)
- Provides up to 21% improvement in sequential data read/write performance over prior generation
- Delivers up to 3% faster random read and up to 4% faster random write performance vs. prior generation, and up to 10% faster random read and up to 8% faster random write performance vs. legacy 3.5-inch 15K drives
- Improves scalability and reliability with 6Gb/s SAS interface support
- Supports Protection Information (PI) to help ensure data is not changed from what the user created—from the moment the data is created throughout the life of the data
- Improves reliability by up to 20% with an annualized failure rate (AFR) of 0.44%
- Instant Secure Erase™ feature cryptographically erases the data encryption key, thereby helping to protect data should drives be lost, stolen or retired.
- Eases transition from legacy 3.5-inch, 15K drives to next-generation 2.5-in, 15K drives
- Unified Storage architecture minimizes system complexity and reduces operating costs.
- Self-Encrypting Drive (SED) option helps data centers be compliant with corporate and federal data security mandates.
Compatibility:
All SAS compatible servers including (This list is not all inclusive):
Dell PowerEdge 1900, 1950, 1955, 2900, 2950, 6900, 6950 Servers and MD1120 Storage Arrays. 8WR71
Compaq/HP Proliant:
BL20p G4, BL460c, BL465c, BL480c, DL360 G4p, DL360 G5, DL380 G4, DL380 G5, DL385, DL385 G2, DL580 G3, DL580 G4, DL585, DL585 G2, ML350 G5, ML370 G4, ML370 G5, ML570 G3, ML570 G4
| Specifications | |
|---|---|
| Model number | ST9300653SS |
| Model Name | Savvio 15K.3 |
| Formatted Capacity | 300 Gbytes |
| Rotational Speed | 15,000 rpm |
| Default Buffer (cache) Size | 64 Mbytes |
| Guaranteed Sectors | 585,937,500 |
| Areal Density (avg) | 448Gb/in2 |
| Performance | |
| External (I/O) Transfer Rate (max) | 600 MBytes/sec |
| Sustained Transfer Rate | 202 MBytes/sec |
| Average Seek Time, Read | 2.7 msec typical |
| Average Seek Time, Write | 3.1 msec typical |
| Average latency | 2.0 msec typical |
| Physical | |
| Form Factor(width) | 2.5-inch |
| Form Factor(height) | .591-inch |
| Height | 15 mm |
| Width | 70.10 mm |
| Length | 100.45mm |
| Weight | 0.200 kg |
| Electrical | |
| Avg. Idle Power | 4.25W |
| Environmental | |
| Max Operating Shock (2-msec) | 40 Gs |
| Max Nonoperating Shock (2-msec) | 300 Gs |
| Operating Vibration (max) | .5 Gs |
| Nonoperating Vibration (max) | 2.4 Gs |
| Operating Temperature (max) | 55 deg C |
| Operating Temperature (min) | 5 deg C |
| Nonoperating Temperature (max) | 70 deg C |
| Nonoperating Temperature (min) | -40 deg C |
| Acoustical | |
| Nonrecoverable Read Errors | 1 per 10^16 bits read |
| Supports S.M.A.R.T. | Yes |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: 8WR71 08WR71 9SW066-158
Weight: 0.5 lb
Warranty: 1 Year DiscTech
Refurbished
These products have had NO problems or failures, they merely have some usage. The product has been professionally returned to excellent condition. These items have been fully tested, formatted (if appropriate) &repackaged. Hard drives are fully vetted for surface defects and wear, only healthy disks are approved for resale to our customers. Please see our refurbishing process for more details. Watch a video about our refurbishing process
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
