Toshiba Part #/MPN: KCM5XRUG3T84
DiscTech Item #: KIO-KCM5XRUG3T84-BN-OE-HPI
- Brand NewCondition Levels Explained
The product is brand new.
- Warranty:1 Year DiscTechProduct Warranties Explained
The product has a DiscTech warranty for the time period specified. View our limited warranty
- In Stock:23Need more?Stock Levels
This stock level is real time and accurate. This quantity is available for same-day shipment. Larger quantities can take up to a week to ship. Call us for larger quantities that you need urgently.
Enterprise Grade
Capacity: 3.84TB
Speed: Solid State Memory
Interface Types: NVMe U.2
Form Factor: 2.5inx15mm SFF Server Drive
Sector Size: 512 / 512e
Electrical Interface: PCIe - v3.0 - 16GBps
SSD Type: TLC
SSD Endurance DWPD: Enterprise Read Intensive

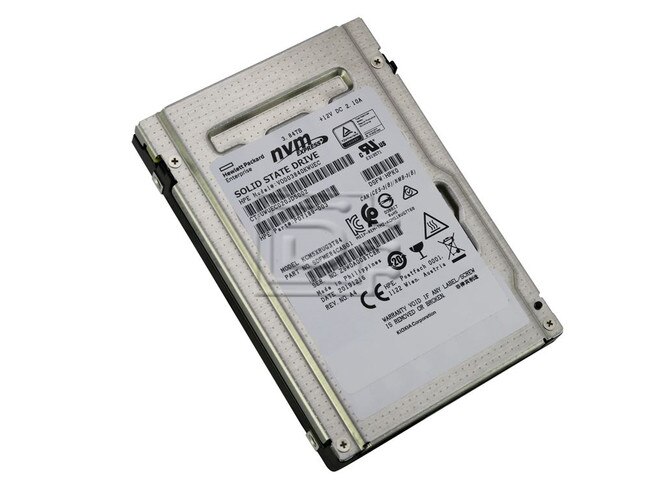

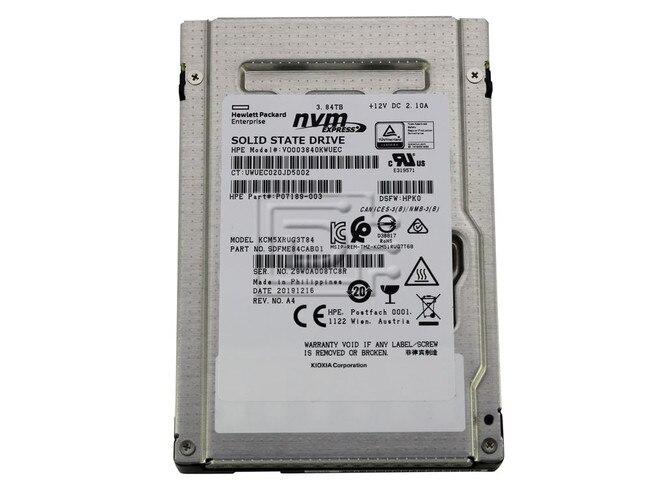

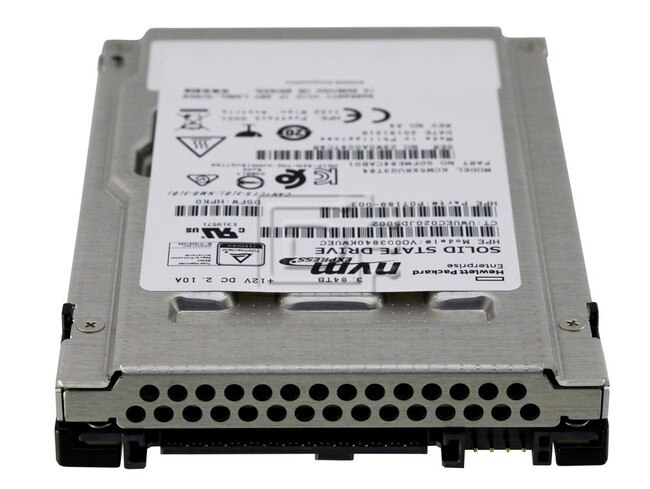

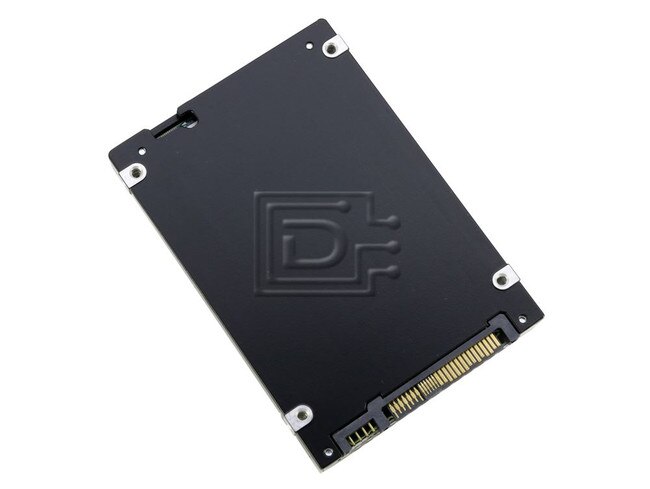

HPE P07189-003 / Toshiba Kioxia KCM5XRUG3T84 / VO003840KWCEC CM5-R Series 3.84TB 2.5" SFF BICS FLASH TLC PCIe 3.0 x4 U.2 NVMe Read-Intensive SSD - Brand New OEM
HPE P07189-003 / Toshiba Kioxia KCM5XRUG3T84 / VO003840KWCEC CM5-R Series 3.84TB 2.5" SFF BICS FLASH TLC PCIe 3.0 x4 U.2 NVMe Read-Intensive SSD - Brand New OEM
Toshiba Model Number: KCM5XRUG3T84
CM5-R SERIES - Enterprise NVMe Read Intensive SSD
The CM5-R Series is a read-intensive that is optimized to support broad range of enterprise applications and associated workloads that include Business Intelligence, Online Transaction Processing, and Software Defined Storage and Virtualization. This NVMe series of CM5-R SSDs deliver excellent performance up to 770K IOPS (random read) with maximum power consumption of 18W.
Featuring KIOXIA Corporation 64-layer BiCS FLASH™ 3D TLC memory, CM5-R Series of enterprise NVMe SSDs deliver 1 DWPD (Drive Writes Per Day) of endurance and support storage capacities up to 15.36 TB making them ideally suited for read-intensive enterprise applications
KEY FEATURES
- PCIeⓇ Gen3 x4 lane interface with single port support
- NVMeTM Rev. 1.3a compliant
- Capacities from 960GB to 15.36TB
- Up to 770K random read IOPS in single port (1x4) mode
- Low power consumption of 18W
- 2.5 inch small form factor, 15mm Z-Height
- 1 DWPD with 100% random write workload
- Power loss protection and end-to-end data protection, including T10 DIF
- Sanitize Instant Erase (SIE) option *Note 1,4
- Self-encrypting drive (SED) option *Note 2,4
- Self-encrypting drive (SED), FIPS 140-2 option *Note 2,3,4
APPLICATIONS
- Software Defined Storage Virtualization
- Data warehousing
- Online transaction processing (OLTP) (transactional and relational databases)
- Business intelligence (BI) (data analytics, artificial intelligence and machine learning)
Compatibility:
This drive is compatible with any server that accepts 2.5"x15mm (SFF Hard U.2 Drive) NVMe PCIe drives.
Similar & comparable to:
Western Digital WDS384T1D0D
Micron 7300 Pro MTFDHBE3T8TDF-1AW1ZAB
Kioxia KCM5DRUG3T84
Micron 9300 MTFDHAL3T8TDP-1AT1ZABYY
Samsung MZ-QLB3T80
Samsung MZ-QL33T80 PCIE MZQL23T8HCLS-00B7C
Samsung MZQLB7T7HALS-00007 PM983 Gen3.0 x4 MZQLB3T80
HPE HFS3T8GETFEI-D430A
| Kioxia Model Number | KCM5XRUG3T84 |
|---|---|
| Capacity | 3840GB / 3.84TB |
| Interface | PCIe NVMe 3.0 x4 |
| Interface Speed | 32G/ps (Gen3x4) |
| Memory Type | BiCS FLASH TLC |
| Product Specification | |
| Sequential Read | 3350 MB/s |
| Sequential Write | 3040 MB/s |
| Random Read (100% Span) | 770000 IOPS |
| Random Write (100% Span) | 80000 IOPS |
| Power Requirement | |
| Supply Voltage | 12V +/- |
| Power Consumption | 6.0 W Typ |
| Reliability | |
| MTTF | 2,500,000 hours |
| DWPD | 1 |
| Mechanical | |
| Height (mm) | 15 + 0. -05 |
| Width (mm) | 69.85 +/- 0.25 |
| Length (mm) | 100.45 Max |
| Weight (g) | 130 Max |
| Environmental | |
| Temperature (Celcius) | 0 to 60 |
| Humidity (Operating) | 5% to 95 % R.H |
| Vibration (Operating) | 21.27m/s2 {21.17 Grms} {5 to 800Hz} |
| Shock (Operating | 9800m/s2 {1000G} {0.5ms duration} |
Click here to view the manufacturer's item description/brochure
ROHS Compliant
Alternate MPNs: P07189-003 VO003840KWCEC SDFMF84CAB01
Weight: 0.5 lb
Warranty: 1 Year DiscTech
Brand New
The product is brand new.
1 Year DiscTech Warranty
The product has a DiscTech warranty for the time period specified. View our limited warranty
