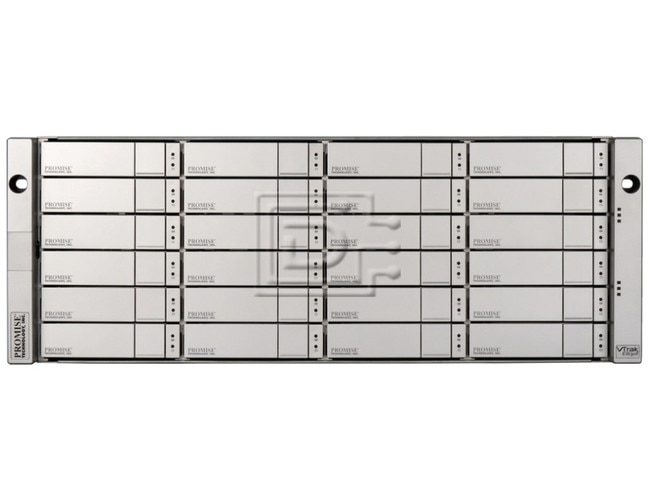

Promise Technology VTrak E830FDQS2 E830F Series 4U 48TB Fiber Channel RAID Subsystem Storage Array w/ HDDs

PROMISE Part #/MPN: E830FDQS2

DiscTech Item #: PRO-E830FDQS2-BN-3Y

$29,999.00

This item is no longer available. Please contact us for alternatives.

Brand New
Condition Levels Explained
The product is brand new.
Warranty:3 Year Manufacturer
Product Warranties Explained
The product has a manufacturer warranty for the time period specified.
Low Stock:Call for ETA
Stock Levels
This item is currently (nearly) out of stock. It may be possible to arrange fast shipment. If you need it urgently call us. Otherwise, it usually ships within 1 week.

Back

$29,999.00

This item is no longer available. Please contact us for alternatives.

Enterprise Grade

Capacity: 48TB

Interface Types: SAS, SATA, Fibre Channel - Internal - Arbitrated Loop ASA II, Ethernet RJ45, PCIe, SFF-8088

Form Factor: 3.5" LFF Hard Drive

Electrical Interface: FC-AL - 8Gbps

On-Board Cache: 4GB

Bays/Ports/Slots: 24

U Height: 4U

Wattage/VA: 750W

Voltage: 110-240V Multi

Promise Technology VTrak E830FDQS2 E830F Series 4U 48TB Fiber Channel SAN / NAS RAID Subsystem Storage Array w/ HDDs - Brand New

Promise Technology VTrak E830FDQS2 E830F Series 4U 48TB Fiber Channel Dual-Controller SAN / NAS RAID Subsystem Storage Array w/ HDDs - Brand New

This storage array includes 24x 2TB 7200 RPM NL-SAS hard drives.

Tomorrow’s Performance. Today.
The PROMISE VTrak x30 Series RAID subsystem is a high performance, massively scalable 8G Fibre Channel storage subsystem designed to provide 24/7, 365 enterprise-class availability. Optimized to work within an OS X environment, the VTrak x30 Series offers up to four times more performance than the previous generation delivering up to 5.5 GB/s for reads and 2.4 GB/s for writes.

The VTrak x30 Series RAID solution was developed to meet the mission critical needs of today’s demanding video workflows. At the heart of the PROMISE VTrak x30 Series RAID subsystem is an advanced, high-performance RAID engine developed over the course of two decades. Powered by nextgeneration processing power from Intel, the Xeon C3500 Series processors, the VTrak x30 unleashes tomorrow’s performance, today.

Edit & Playback Video Faster than Ever Before
Faster processor, more memory, faster FC ports is just the beginning. Enhanced cached mirroring design, auto-regeneration of data to mitigate frame drops and optimized disk access all add up to more performance for broadcast and editing environments.

Redesigned WebPAM PROe Management Suite
Designed with simplicity in mind, the all-new WebPAM PROe takes VTrak storage management to a new level. Included are automatic configurations tuned for common applications, non-disruptive software updates, power savings scheduler, performance and power monitoring statistics, drag-anddrop LUN mapping/masking and more. Every thing you need is built in, just login through Safari.

Heterogeneous Environments. Always.
PROMISE has a long history of supporting multiple platforms. The VTrak x30 Series supports OS X, Windows and Linux. Extensively tested and qualified across diverse OS and SAN environments such as XSAN and StorNext, the VTrak x30 is built for your enterprise workload.

VTrak x30 Advantages

Quad 8Gbps FC ports per controller
Delivers up to four times more performance than previous generation
High-availability design
Out-of-the-box support with zero software install required
Scale up to 9 expansion chassis for a total of 240 drives
PerfectFlash enables software updates without requiring downtime
Administer access control through Open Directory & LDAP
Energy efficient power supplies offering up to 85% power efficiency
Qualified solution for OS X, XSAN, Final Cut Pro and Adobe Premiere
Certified for Windows, Linux, and StorNext
VTrak A-Class storage node support ready

Compatibility:

This product supports any mix of SAS and SATA drives simultaneously in the same enclosure.

Specifications
Form Factor	4U 24-bay
Controller	Dual controller (E830fD)
Drives Included	24x 2TB 7200 RPM NL-SAS hard drives
Drive Support	Up to 24 3.5”/2.5” HDDs or SSDs (Please refer to compatibility list at www.promise.com) NL-SAS 7200 RPM: 6 Gbps, 3Gbps / SATA: 6Gbps, 3Gbps and 1.5Gbps / SSD
External I/O Ports (per controller)	Four 8Gbps Fibre Channel ports, backwards compatible with 4Gbps and 2 Gbps Fibre Channel One external SAS port using industry standard Mini SAS 4x wide-port-SAS connectors (SFF-8088) to connect up to 9 cascading expansion JBODs
Data Cache	4GB data cache per controller protected with hot-swappable battery backup unit (BBU)
RAID Levels	0, 1, 1E, 5, 6, 10, 50, 60
RAID Stripe Size Support	64K, 128K, 256K, 512K and 1MB
Hot spares	Global or dedicated with revertible option
Max LUNs per subsystem	1024
Max LUNs per array	32
Supported Operating Systems	Mac OS X 10.7, 10.8 & 10.9, Microsoft Windows Server 2008 R2, Windows Server 2008 R2 SP1, Windows 7, Windows 7 SP1, Windows 8, Windows 8 SP 1, Windows Server 2012, Windows Server 2012 R2, HyperV Server 2012, RedHat Enterprise Linux 6.3 & 6.4, SuSE Linux Enterprise Server 11 SP2 & SP3, VMware ESX Server 5.5
Voltage	100-240 Vac Auto-Ranging
Current (Maximum)	10A @ 100 VAC; 5A @ 200 VAC
Power Conversion Efficiency	>80% @ 110V (>20% load), >80% @ 240V (>20% load)
Temperature	Operational: 5° to 35°C, Non-Operational: -40° to 60°C
