Fujitsu MAM 18GB 15K U160 68pin SCSI Hard Drives


DiscTech Item #: FUJ-MAM3184MP-FR-OE

  • Special Order - Ships in 5-10 business days
    Special Order - Ships in 5-10 business days

    This item has a lead time for fulfilment (as listed), this is approximate. Your credit card will be authorized in full on the day of ordering; it will not be charged until the day of shipment.


Enterprise Grade

Capacity: 18GB

Speed: 15,000RPM

Interface Types: SCSI 68pin HD68

Form Factor: 3.5inx1.0in LFF Hard Drive

Sector Size: 512 / 512e

Sustained Throughput: 68.6 to 88.0

Average Seek Time: 3.5 / 4.0

Electrical Interface: SCSI LVD U160 - 160MBps 16-bit

On-Board Cache: 8MB

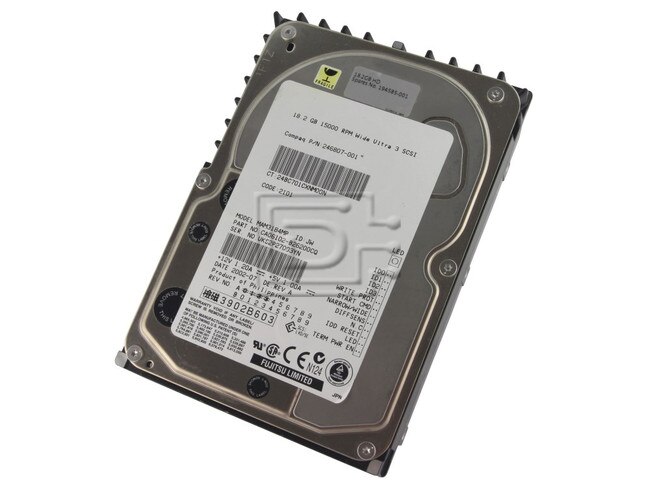

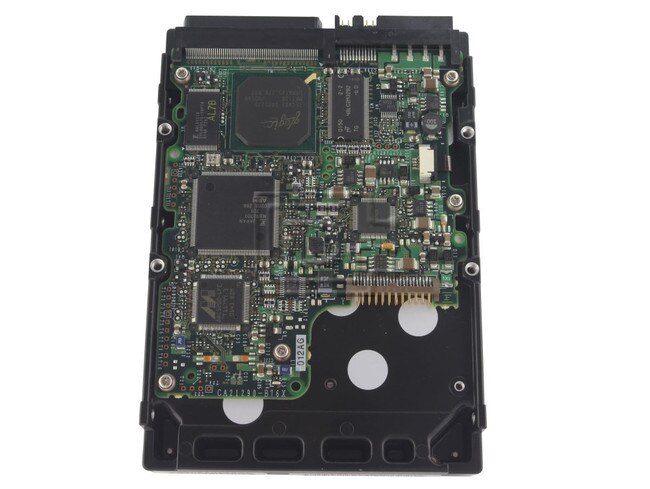

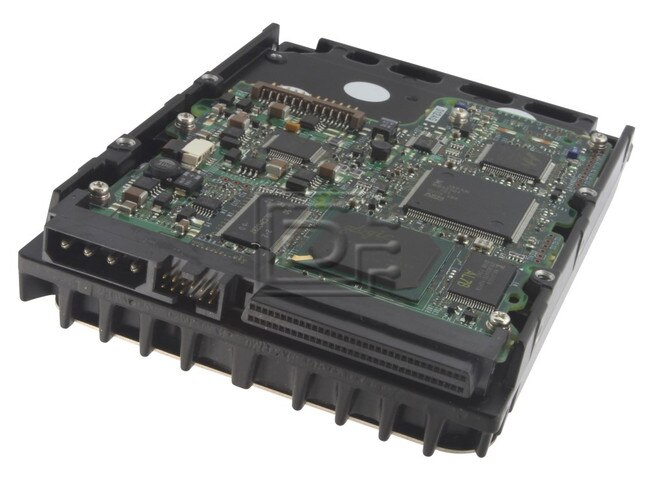

Fujitsu MAM 18GB 15K U160 68pin SCSI Hard Drive MAM3184MP - Factory Recertified

Drive Features

  • High recording density adopting Advanced Giant Magneto-Resistive Head (GMR) technology and 32/34 MEEPRML recording code
  • Large capacity 36.7GB*1 with 3.5 inch and 25.4 mm height
  • High speed with 15,000 rpm, average seek time 3.5 ms, data transfer rate 160MB/s (Ultra 160)
  • MTBF 1,200,000 hours more adopting high quality parts which is reduced parts by integration of circuit parts and made by latest technology


Storage Capacity (Formatted)18.4GB36.7GB
Recording density17,716 bit/mm {450,000 bpi}
Track density1,377 tracks/mm {35,000 tpi}
Rotational speed15,000 min-1 {15,000 rpm}
Average seek timeRead 3.5 ms (typical) / Write 4.0 ms (typical)
Recording code32/34 MEEPRML
Dimensions (W x D x H)101.6 mm x 146.0 mm x 25.4 mm
Weight0.80 kg
Power Consumption (Idle)9.5W11.5W
Energy Efficiency0.516 W/GB
(rank b)
0.313 W/GB
(rank c)
SCA-2 (MC series) / 68-pin Wide (MP series)
Data transfer rate To/from media68.6 to 88.0 MB/s
To/from host160 MB/s
Buffer size8MB

Click here to view the manufacturer's item description/brochure

Weight: 1.8 lb

Warranty: 1 Year DiscTech

Factory Refurbished

Condition Levels Explained

The product has been built, rebuilt or repaired at the original manufacturer's factory (Note we NEVER sell 3rd party repaired items, as we do not find them to be reliable enough). Often these products are extremely close to new in condition, except that they contain at least one recycled or repaired component. Failure rates are often lower on these devices since they have been far more thoroughly tested than new items.

Product Warranties Explained

The product has a manufacturer warranty for the time period specified.

1 Year DiscTech Warranty

Product Warranties Explained

The product has a DiscTech warranty for the time period specified. View our limited warranty
